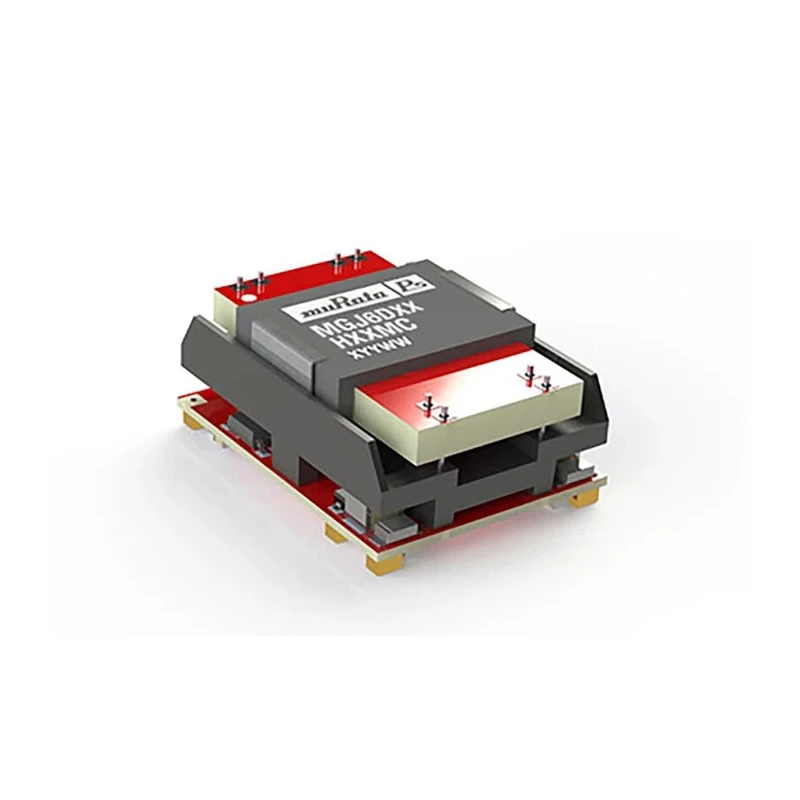

Murata Power Solutions DC/DC Converter 24V DC Output, 125mA, 36V DC Input, 18V DC Input, 3W Power, Surface Mount MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 24V d |
| Brand | Murata Power Solutions |
| Efficiency | 85% |
| Length | 29.51mm |
| Model | MGJ6 |
| Depth | 14.05mm |
| Gross Weight | 14.4g |
| Width | 22.61mm |
| Mount Type | Surface Mount |
| Series | MGJ6 |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | ANSI, UL |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 5.7kV dc |
Key Features
- Operates with input voltage range from 18V to 36V DC.
- Offers dual output channels with output current of 125mA each.
- High isolation voltage of 5.7kV DC ensures reliable electrical separation.
- Compact surface mount package with dimensions 29.51mm length, 22.61mm width, and 14.05mm depth.
- High efficiency rated at 85 percent to optimize power use.
- Designed for harsh environments operating from -40°C to a maximum of 105°C.
- Low ripple and noise level of 150mV peak-to-peak supports sensitive circuits.
- Suitable for gate drive circuits for IGBTs and MOSFETs in motor drives and inverters.
Product Description
Murata Power Solutions MGJ6D24H24MC-R7 is a DC/DC Converter designed to provide isolated dual outputs of 24V DC at 125mA each with a maximum output power of 3W. The device operates with an input voltage range between 18V DC minimum and 36V DC maximum, making it ideal for power supply regulation in various electronics and industrial control systems.
This surface mount package has compact dimensions of 29.51mm length, 22.61mm width, and 14.05mm depth, with a lightweight design of 14.4 grams. It features an isolation voltage of 5.7kV DC to ensure high electrical separation and safety, essential for motor drives, inverters, and other high-voltage applications.
The converter delivers improved system efficiency at 85% and includes ultra-low coupling capacitance of 15pF, helping to minimize noise and interference in sensitive circuits. It has a ripple and noise specification of 150mV peak-to-peak, supporting reliable performance for gate drive circuits involving IGBTs and MOSFETs in bridge circuits.
Operating temperature ranges from -40°C to a maximum of 105°C, allowing deployment in harsh environments. The converter complies with ANSI and UL standards, ensuring adherence to industrial safety and quality norms.
This Murata MGJ series converter is widely applicable in industrial power management, motor drives, laboratory instrumentation, and manufacturing control systems requiring stable isolated DC power supply.
Operates within 18V to 36V DC input voltage range. Dual isolated outputs delivering 24V DC at 125mA each. Isolation voltage up to 5.7kV DC provides high reliability. Compact surface mount package for space-saving design.
High efficiency of 85% enhances power conservation. Wide operating temperature range suitable for industrial use. Low ripple and noise ensures signal integrity. Compliance with ANSI and UL standards for safety. Lightweight design facilitates system integration.
This DC/DC Converter is a robust solution for applications including motor inverters, power supplies, and precision instrumentation. Browse more products from Murata Power Solutions on EnvMart for comprehensive power management options.
