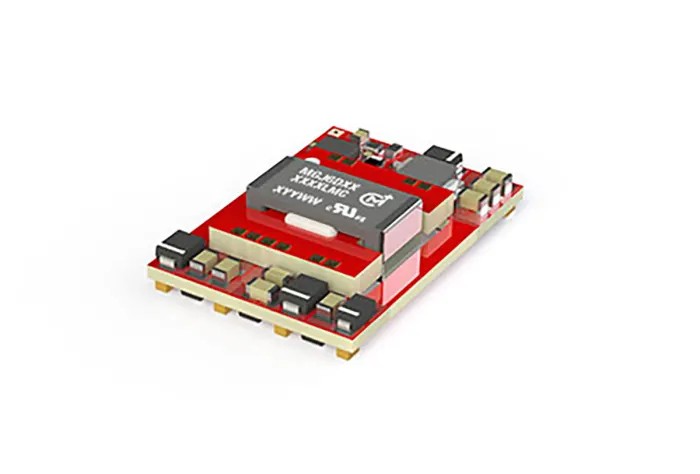

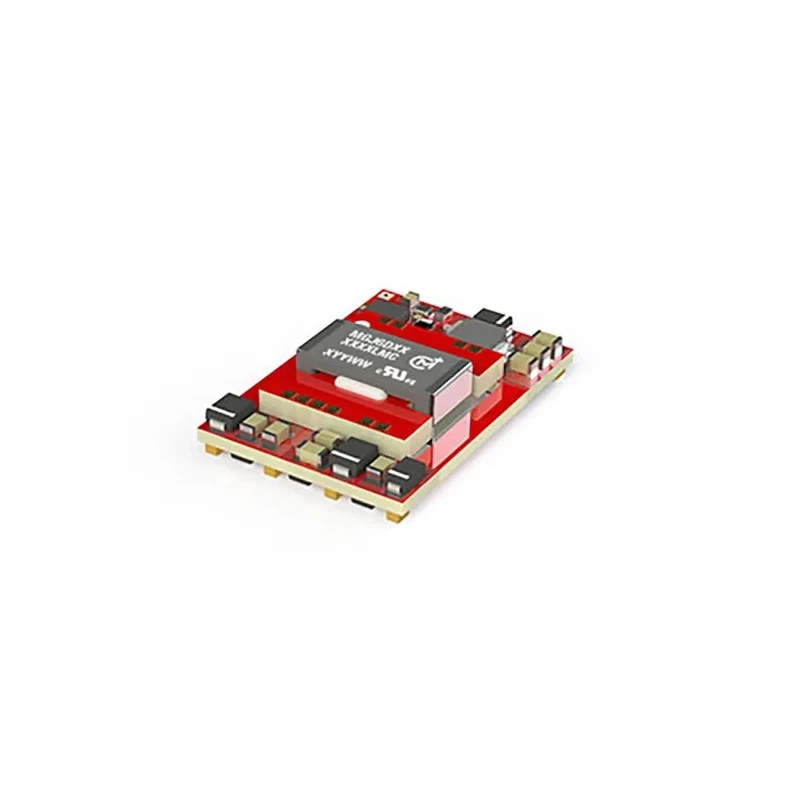

Murata Power Solutions DC/DC Converter 4.5V dc Input, 20V dc and -5 V dc Output, 240 mA, 27.81x39.98x9.35 mm, Operating MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 20V d |
| Brand | Murata Power Solutions |
| Length | 27.81mm |
| Model | MGJ6 |
| Depth | 9.35mm |
| Width | 39.98mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 20, -5V dc |
| Minimum Input Voltage | 4.5V dc |
Key Features
- Isolated DC-DC converter with bipolar output voltages for gate drive circuits.
- Input voltage ranges from 4.5 V dc up to 9 V dc for flexible applications.
- Output current rated at 240 mA enabling efficient power delivery.
- Compact surface mount package designed for space-constrained electronic designs.
- High isolation capability with 3 kV DC barrier withstand voltage.
- Ultra low coupling capacitance of 15 pF minimizing interference.
- Wide operating temperature range from -40°C to +105°C for harsh environments.
- Optimized for IGBT and MOSFET gate drive circuitry in motor drives and inverters.
Product Description
Murata Power Solutions MGJ6D052005LMC-R7 DC/DC Converter provides galvanically isolated DC voltage conversion, featuring dual output voltages of 20 V dc and -5 V dc with a 240 mA output current capability. With a minimum input voltage requirement of 4.5 V dc, it suits a variety of low-voltage power supply applications.
This converter is part of the MGJ6 series designed specifically to supply bipolar output voltages optimized for high and low side gate drive circuits of IGBTs and MOSFETs used in bridge circuits. Its surface mount package allows integration into compact electronic assemblies.
Constructed for high isolation, the unit withstands continuous barrier voltages up to 3 kV DC and has passed isolation tests at 5.7 kV DC, ensuring durability and safety in demanding industrial and commercial settings. The ultra-low coupling capacitance of 15 pF minimizes noise and interference, making it suitable for sensitive control applications.
Operational temperature range from -40°C to +105°C makes this converter ideal for environments exposed to temperature extremes such as motor drive systems, inverters, and other industrial electronics requiring reliable gate drive power supplies.
Isolated power conversion tailored for gate drive IGBT and MOSFET circuits. Compact and efficient surface mount design for integration. High isolation withstand voltage for safety and reliability. Wide ambient temperature range suitable for rugged applications.
Low coupling capacitance to reduce electrical noise effects. Supports applications in motor drives, inverters, and industrial controls. Robust construction designed for long service life and high efficiency. Bipolar output voltages enable system efficiency optimization.
This DC/DC converter is an essential component in the Electronics & Electricals sector, specifically within Power Supply and Distribution for applications in industrial automation, HVAC control systems, and manufacturing equipment.
Explore other reliable DC/DC Converters by Murata Power Solutions at EnvMart for effective power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5 V dc up to 9 V dc.
This converter provides dual output voltages of 20 V dc and -5 V dc.
The maximum output current of this unit is rated at 240 mA.
The dimensions of this model are 27.81 mm in length, 39.98 mm in width, and 9.35 mm in depth.
It operates within a temperature range of -40°C to +105°C.
This DC/DC converter is optimized for gate drive circuits of IGBTs and MOSFETs used in motor drives and inverters.
It features a high isolation capability with a barrier withstand voltage of up to 3 kV DC.
The ultra-low coupling capacitance is 15 pF, which minimizes interference.
Yes, it is designed as a compact surface mount package suitable for space-constrained electronic designs.
The country of origin for this DC/DC converter is India.
This model belongs to the MGJ6 series of converters.
Key features include high isolation capability, wide operating temperature range, and optimized output for gate drive applications.
