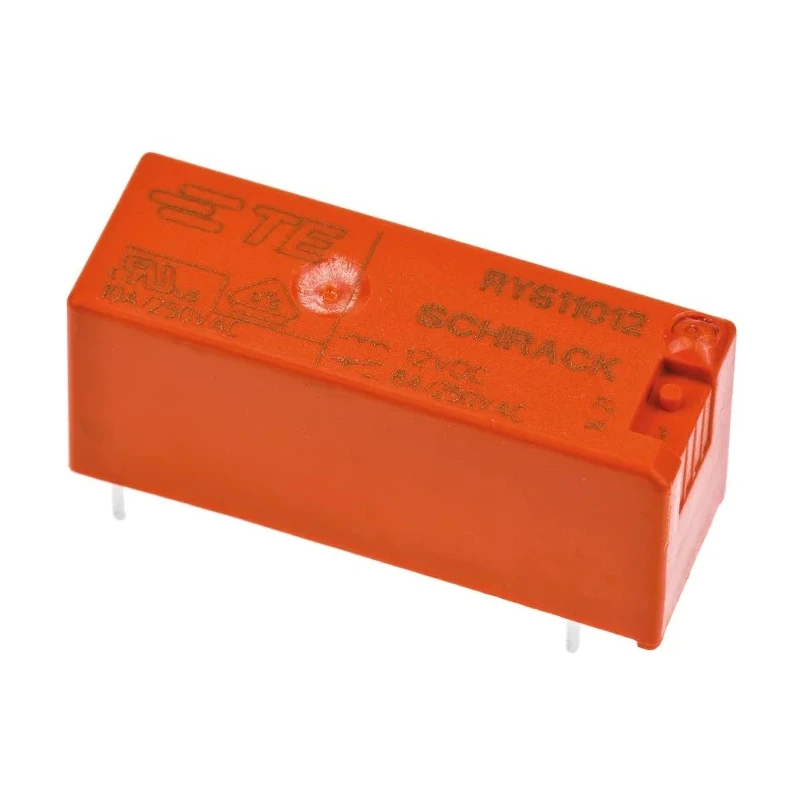

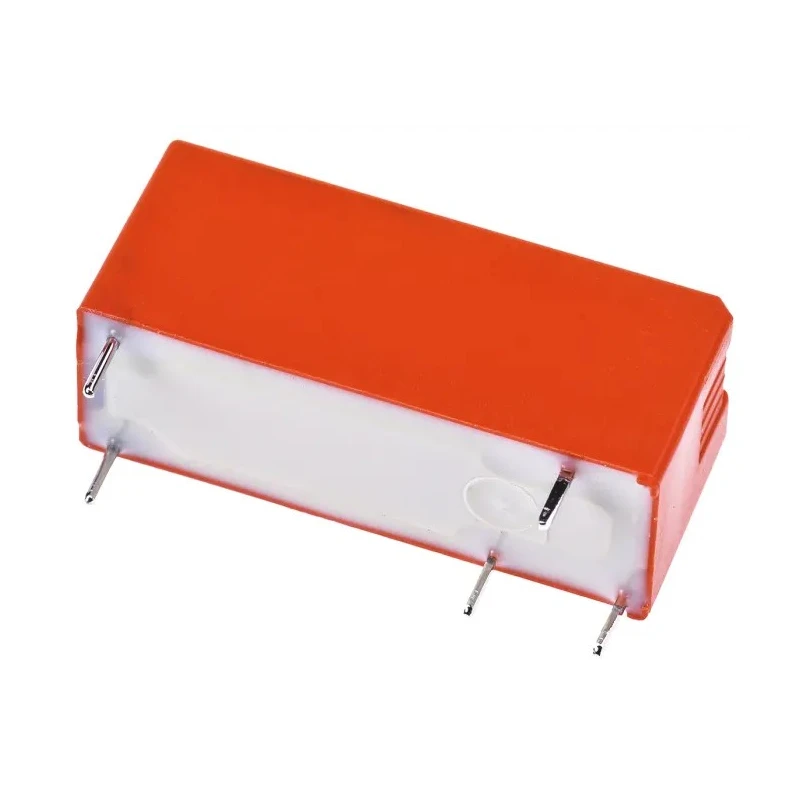

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current SPDT RY611012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |

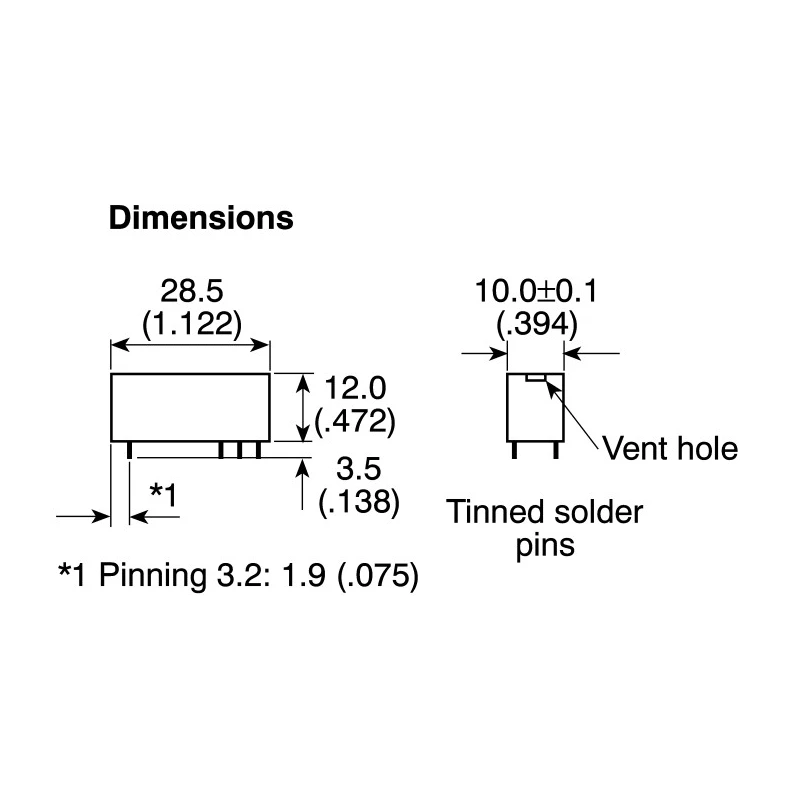

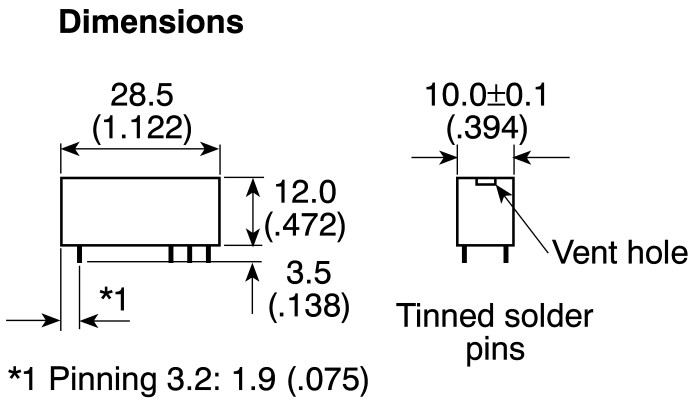

| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY611012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 627Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Designed for PCB mounting with solder terminals for reliable connections.
- Operates within a temperature range of -40°C to 70°C, suitable for industrial environments.
- Switching power of 2kVA with maximum switching AC voltage of 400V AC ensures high performance.
- Coil resistance is 627Ω with low coil power consumption of 250mW.
- Contact material is silver alloy, ensuring durability and conductivity.
- Certified to comply with RoHS, VDE, and IEC 60335-1 standards.
- RY Series with 3.2mm pinning and 8mm creepage and clearance distances for safety.
Product Description
TE Connectivity RY611012 PCB Power Relay is a high-quality power relay suitable for a broad range of electrical and industrial applications. Featuring a 12V DC coil and an 8A switching current in SPDT configuration, this relay offers reliable performance for controlling circuits on printed circuit boards (PCB).
The relay supports a switching power rating of 2kVA and a switching AC voltage up to 400V AC, enabling it to handle significant power loads. The coil resistance of 627Ω combined with a coil power of just 250mW results in efficient electrical operation with minimal power consumption.
Its compact size - measuring 12.3mm in height, 28.5mm in width, and 10.1mm in depth - makes it ideal for space-constrained PCB designs. The silver alloy contact material ensures excellent conductivity and durability through numerous switching cycles.
Engineered as part of the RY Series, this relay features 3.2mm pinning and an 8mm creepage and clearance distance, contributing to safety and compliance with international electrical standards. Operating temperatures range from -40°C up to 70°C, allowing use in varying environmental conditions.
This product meets critical regulatory standards including RoHS, VDE, and IEC 60335-1, assuring compliance for industrial and commercial deployments. Designed for PCB mounting with solder terminals for secure connections.
12V DC coil voltage with 8A switching current for versatile application. Compact dimensions suitable for dense PCB layouts. Silver alloy contacts offer reliable electrical performance. Compliant with RoHS, VDE, and IEC safety standards.
Low coil power consumption reduces energy usage. Wide operating temperature supports varied industrial environments. RY Series relay with 3.2mm pinning and creepage clearance of 8mm for safety.
This PCB Power Relay is ideal for electrical, automation, manufacturing, and industrial automation systems. It provides efficient switching and robust operation, ensuring reliable control over connected circuits.
Explore more products in the Power Relay category to find compatible components for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 8A.
This model operates with a coil voltage of 12V DC.
The dimensions of the relay are 12.3mm in height, 28.5mm in width, and 10.1mm in depth.
It operates within a temperature range of -40°C to 70°C.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 627Ω.
The maximum switching AC voltage is 400V AC.
The contact material is silver alloy, which provides good conductivity and durability.
This relay is designed for PCB mounting with solder terminals for secure connections.
It is certified to comply with RoHS, VDE, and IEC 60335-1 standards.
The coil power consumption is low at just 250mW.
This model is part of the RY Series.
