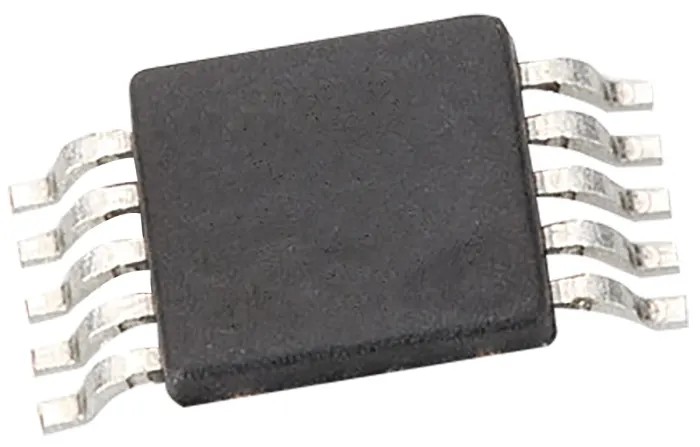

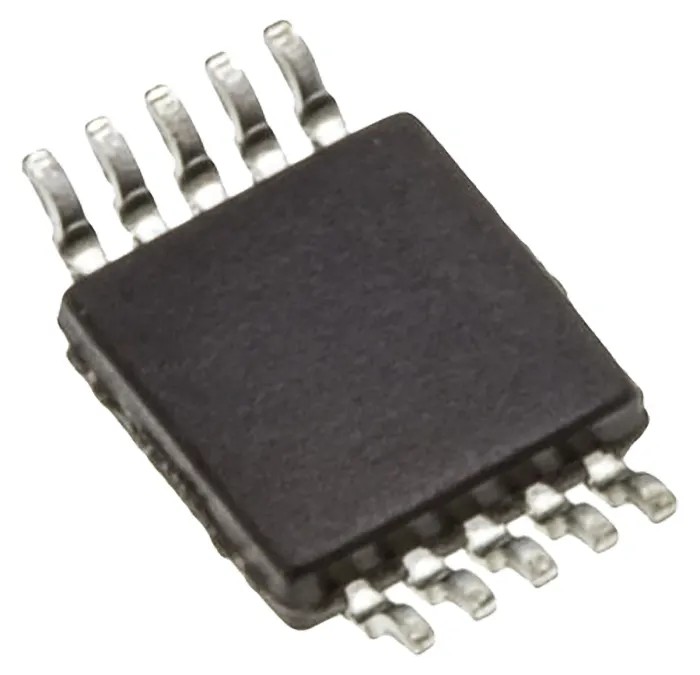

Texas Instruments 12-bit 4-Channel Serial I2C Digital to Analogue Converter, 43 ksps, 10-Pin MSOP DAC7574IDGS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | DAC7574IDGS |
| Width | 3.1mm |
| Mount Type | Surface |
| Settling Time | 12μs |
| Sampling rate | 43ksps |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | Serial-I2C |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- Offers high precision 12-bit resolution for accurate signal conversion.
- Features a resistor string architecture ensuring reliable performance.
- Supports 4 output channels facilitating multi-channel applications.
- Operates with a supply voltage range from 3.3V to 5.5V.
- Compact 10-pin MSOP surface mount package measuring 3.1mm x 3.1mm x 1.1mm.
- Provides fast settling time of 12 microseconds for responsive output.
- Compatible with Serial I2C interface for simplified serial communication.
- Designed to operate in temperature range from -40°C to 105°C suitable for industrial environments.
Product Description
Texas Instruments DAC7574IDGS is a 12-bit digital to analogue converter designed for precise voltage output across 4 channels. Its resistor string architecture ensures accurate conversion performance suitable for electronic component applications. Packaged in a compact 10-pin MSOP surface mount device, this DAC supports a voltage range from 3.3V to 5.5V, making it adaptable to various power conditions.
The device operates at a sampling rate of 43 ksps and interfaces via serial I2C, allowing easy integration into control systems requiring multiple analogue outputs. The fast 12 microsecond settling time enables responsive signal changes, critical for industrial and laboratory environments.
Its operational temperature range from -40°C up to 105°C accommodates harsh industrial and commercial conditions. This DAC utilizes an external voltage reference to enhance output accuracy and ensures analogue voltage outputs suitable for measuring and control applications.
High precision 12-bit resolution ensures detailed signal representation. Resistor string architecture provides reliable and consistent performance. Four output channels allow multi-signal control and conversion. Wide supply voltage supports diverse electronic system designs.
Compact package size allows integration into space-constrained devices. Rapid settling time supports fast response requirements. Serial I2C interface simplifies control and reduces wiring complexity. Wide operating temperature range meets industrial standards.
External voltage reference enhances output stability and precision. Analogue voltage output suitable for various industrial applications.
Ideal for use in electronic components, power and connector systems, this DAC is applicable across industrial machines, instrumentation, and semiconductor devices requiring precise digital to analogue conversion. Explore further options in Digital to Analogue Converters within EnvMart's industrial electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC7574IDGS offers a resolution of 12 bits, ensuring accurate signal conversion.
This model features 4 output channels, allowing for multi-channel applications.
It operates with a supply voltage range from 3.3V to 5.5V, making it adaptable to various power conditions.
The maximum operating temperature for the DAC7574IDGS is 105°C, suitable for industrial environments.
This model utilizes a Serial I2C interface, simplifying integration into control systems.
It has a fast settling time of 12 microseconds, supporting responsive output changes.
The device is packaged in a compact 10-pin MSOP format, measuring 3.1mm x 3.1mm x 1.1mm.
The DAC7574IDGS operates at a sampling rate of 43 ksps, suitable for various applications.
It features a resistor string architecture, which ensures reliable performance during signal conversion.
The minimum operating temperature for this model is -40°C, accommodating harsh conditions.
It provides an analogue voltage output, suitable for measuring and control applications.
The country of origin for the DAC7574IDGS is India.
