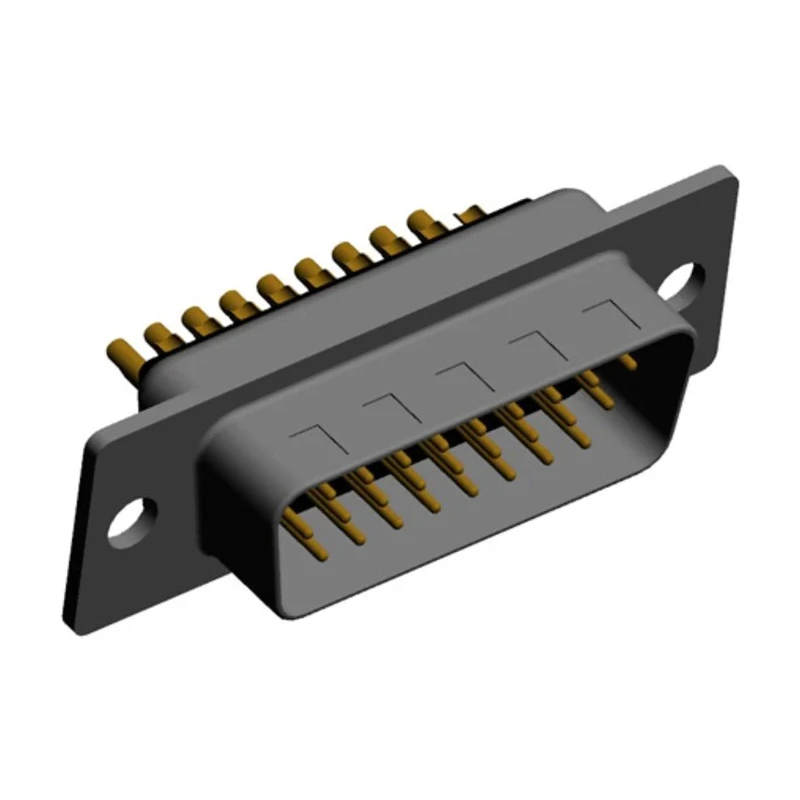

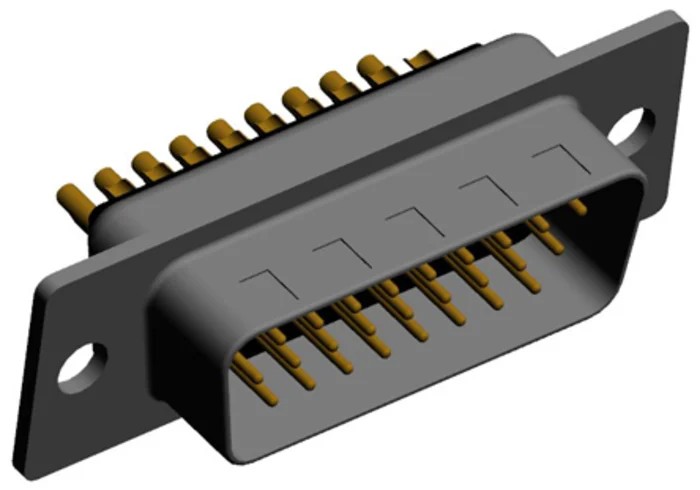

Norcomp SEAL-D 26 Way Straight 2.286 mm Pitch Plug-in D-Sub Connector Male 780-M26-103L001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 780-M26-103L001 |
| Mount Type | Plug-in |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 780, SEAL-D |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.286mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- Designed with a steel housing and brass gold-plated contacts for durability and corrosion resistance.
- Rated for 5A current and up to 1kV voltage to ensure robust electrical performance.
- Sealed to IEC-529-IP67 for protection against dust and water ingress, ideal for harsh environments.
- Operates reliably in temperature ranges from -55°C to 105°C, accommodating extreme conditions.
- Features solder termination and straight plug-in mounting orientation for easy installation.
- Compatible with standard panel sealing kits for enhanced enclosure protection.
- Suitable for outdoor, industrial, medical, and marine electronics requiring secure and sealed connections.
- Includes ground indents and nickel-plated steel shell for improved shielding and grounding.
Product Description
Norcomp 780-M26-103L001 SEAL-D 26 Way Straight 2.286 mm Pitch Plug-in D-Sub Connector Male is engineered for demanding industrial, medical, and commercial applications requiring robust and sealed interconnections. This high-density D-Sub Connector incorporates a nickel-plated steel shell with ground indents, ensuring excellent electromagnetic shielding and grounding reliability.
Constructed with brass contacts plated in gold and a durable steel housing, it provides reliable signal integrity and corrosion resistance even in harsh environments. The connector supports a maximum current of 5 amperes and withstands voltage up to 1 kV.
Sealed to IEC-529-IP67 standards, the SEAL-D series connectors safeguard equipment against dust ingress and temporary immersion in water, making them ideal for outdoor uses, portable electric generation equipment, emergency beacons, and marine electronics. The operating temperature range from -55°C to 105°C further ensures high performance in extreme conditions.
The straight, plug-in mount type connector features solder termination and includes features such as board locks and locator plates in related series for enhanced PCB retention. Panel sealing kits are separately available for further enclosure sealing.
These connectors minimize redesign requirements when upgrading to IP66/IP67 compliance, as they match standard D-Sub footprints. Versatile applications include handheld scanners, remote sensors, data loggers, gas and electric metering systems, and industrial transmitters.
Steel housing provides strong mechanical protection. Gold-plated brass contacts enable excellent conductivity and corrosion resistance. IEC-529-IP67 sealing ensures protection against dust and water ingress. Supports a broad temperature range from -55°C to 105°C for diverse environments.
Plug-in mount with solder termination simplifies assembly. Nickel-plated shell with ground indents enhances shielding and grounding. Compatible with panel sealing kits for IP67 rated enclosures. Ideal for industrial, medical, marine, and outdoor applications requiring sealed connectivity.
Discover more power connectors and D-Sub solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this connector is 5 amperes.
It can withstand voltages up to 1 kV.
This model operates reliably in temperatures ranging from -55°C to 105°C.
It features solder termination for secure connections.
This connector has 26 contacts.
It is constructed with a steel housing and brass contacts that are gold-plated.
Yes, it is sealed to IEC-529-IP67 standards, making it suitable for outdoor applications and protection against dust and water ingress.
The connector has a straight mounting orientation.
The pitch for this connector is 2.286 mm.
It is suitable for industrial, medical, marine, and outdoor applications requiring sealed connectivity.
Yes, it includes a nickel-plated steel shell with ground indents for improved shielding and grounding.
The country of origin for this connector is the United States.
