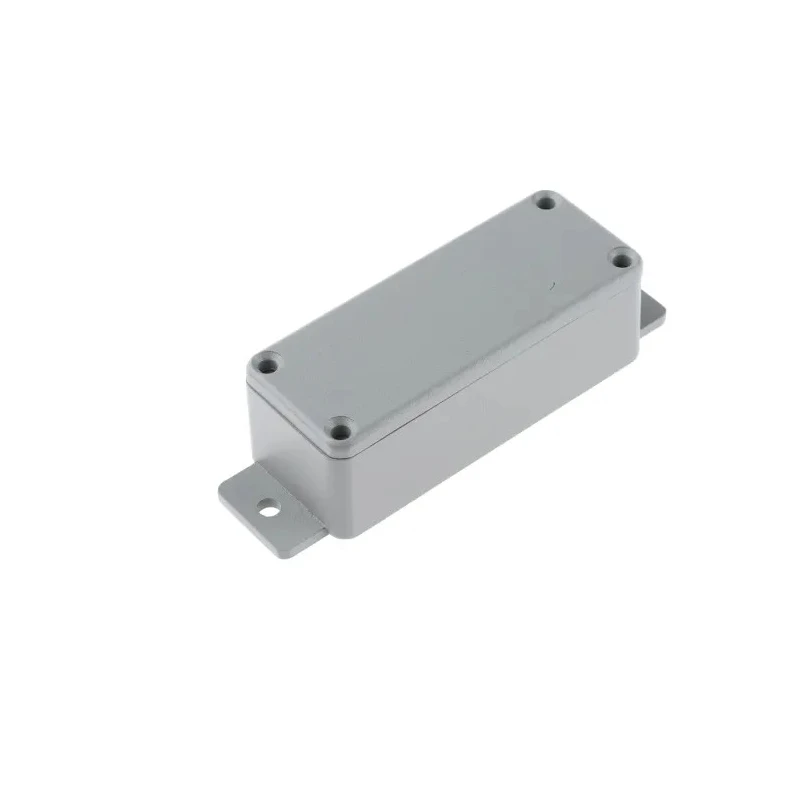

RS PRO Flanged Grey Lid Die Cast Aluminium Enclosure IP66 30 mm x 113.9 mm x 35.1 mm 621-5028

RS PRO 621-5028 Die Cast Aluminium Enclosure, with an IP66 ingress protection rating, features a flanged design with a grey lid and body. The enclosure measures 30 mm in height, 113.9 mm in length, and 35.1 mm in width, making it well-suited for protecting electrical components in harsh environments.

Manufactured from high-quality aluminium alloy (ADC-12) and powder coated in a neutral grey, this enclosure is robust and corrosion resistant. Its die cast construction offers strength and an excellent heat sink for applications involving heat dissipation.

The product includes a self-adhesive silicone neoprene gasket ensuring a watertight seal to meet IP66 standards. Pre-drilled flanges facilitate easy and secure mounting on walls or flat surfaces.

Designed with internal guides for PCB installation, it provides effective EMI/RFI screening to shield sensitive electronics from electromagnetic interference. Its shielded body adds an extra layer of protection, enabling use in a wide range of industrial applications such as electrical, telecommunication, and automation projects.

This enclosure’s versatility allows it to be used in both indoor and outdoor conditions, offering excellent protection against dust, water, and other environmental hazards. It is ideal for button switching elements, network junction boxes, and other mechanical and electrical uses.

The enclosure body is made of powder-coated die cast aluminium for durability. Pre-drilled flanges simplify mounting installation. Self-adhesive, neoprene silicone gasket provides IP66 sealing protection. Internal PCB guides facilitate secure component fitting.

EMI/RFI screening ensures electronic interference protection. Neutral grey colour suits various industry environments. Robust die cast aluminium construction works as an effective heat sink. Suitable for multiple industrial sectors including electrical and telecommunication.

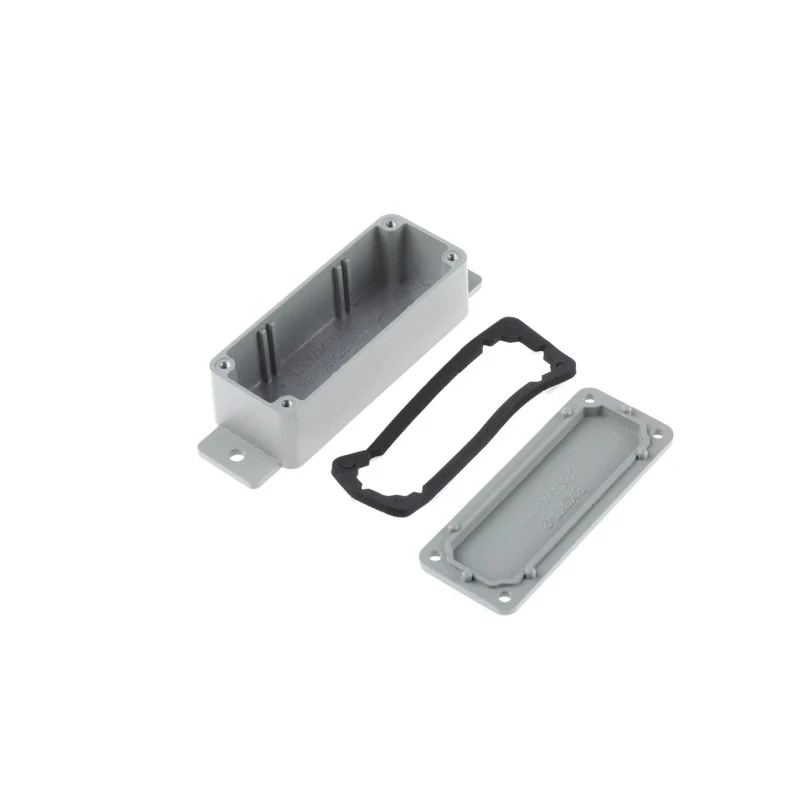

Set includes an enclosure body and cover with pre-drilled flanges plus a self-adhesive silicone gasket. This high-standard enclosure is manufactured in Taiwan, Province Of China, and is ideal for demanding industrial and commercial environments requiring reliable protection for sensitive electronics and electrical installations.
