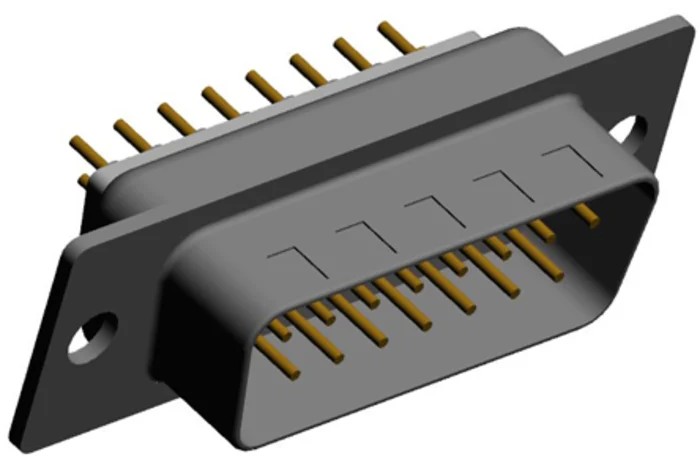

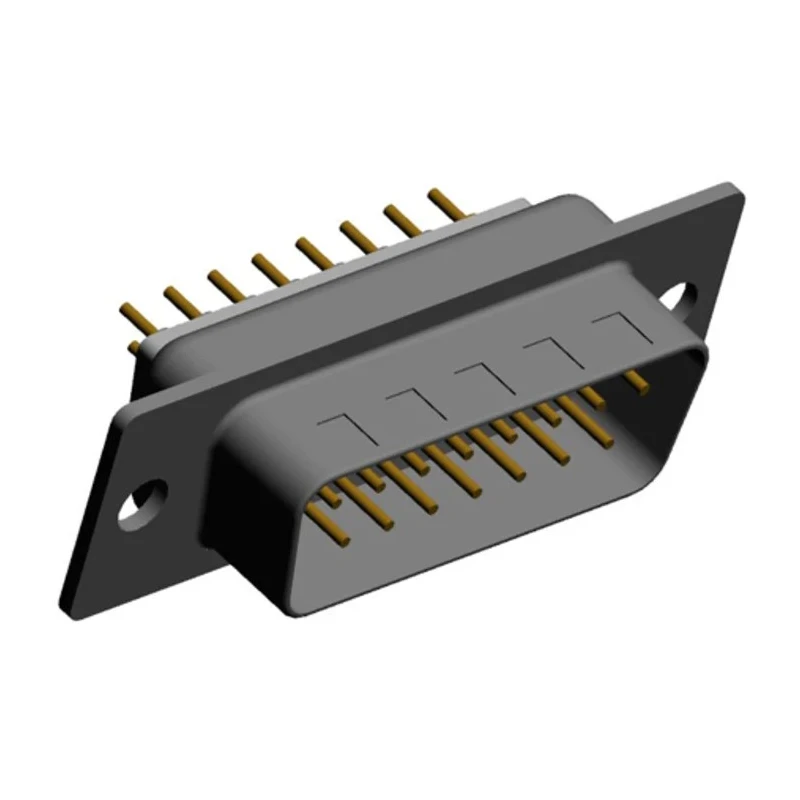

Norcomp 772 15 Way Straight 2.769 mm Pitch Through Hole D-Sub Connector Male 772-E15-113R001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E15-113R001 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- Connector with 15 contacts providing secure connections.
- Designed with a straight orientation for easy installation.
- Supports a maximum current rating of 5A.
- Constructed with a steel housing and brass contacts with gold plating for durability and conductivity.
- Operates within a temperature range from -50°C to 100°C.
- Male connector gender designed for compatibility with matching female connectors.
- Solder termination type ensures sturdy connection to PCB or cable assembly.
- Complies with IP67 sealing for protection against dust and temporary immersion.
Product Description
Norcomp 772-E15-113R001 is a 15 Way Straight Through Hole D-Sub Connector designed for industrial and electronic applications that demand secure and durable connections. Featuring a precise 2.769 mm pitch and IP67 sealing, it ensures protection against dust ingress and temporary submersion, suitable for harsh environments.
This male connector incorporates a steel housing with ground indents to enhance shielding and grounding efficacy while maintaining a standard D-sub profile, facilitating easy replacement and integration into existing designs without PCB or enclosure redesigns.
The contacts are made from brass with gold plating to provide reliable conductivity and resistance to corrosion. This connector is rated for 5A current and 500V voltage operation, making it suitable for a variety of power and signal transmission applications.
Operating temperature ranges from -50°C to 100°C, supporting usage in both extreme cold and heat environments. The solder termination type enables permanent and robust through hole PCB mounting or cable connection.
Industries that benefit from this connector include industrial automation, medical equipment, data loggers, transmitters, handheld devices, gas and electric meter systems, and consumer boating electronics. The IP67 sealing standard also makes it suitable for outdoor and temporary washdown situations.
Connector with 15 contacts providing secure connections. Designed with a straight orientation for easy installation. Supports a maximum current rating of 5A. Constructed with a steel housing and brass contacts with gold plating for durability and conductivity.
Operates within a temperature range from -50°C to 100°C. Voltage rating up to 500V for versatile applications. Male connector gender designed for compatibility with matching female connectors. Solder termination type ensures sturdy connection to PCB or cable assembly.
Complies with IP67 sealing for protection against dust and temporary immersion. Country of origin: United States. Choose Norcomp 772 series connectors for reliable, industry-standard electrical interfacing in demanding environments.
Explore the Electronics & Electricals category on EnvMart for more power connectors and D-Sub models with trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5A.
This connector has a voltage rating of 500V, making it suitable for various power and signal transmission applications.
It operates within a temperature range of -50°C to 100°C, allowing for use in extreme cold and heat environments.
The connector features a steel housing and brass contacts with gold plating, which enhances conductivity and resistance to corrosion.
This D-Sub connector has 15 contacts, providing secure connections for various applications.
It utilizes a solder termination type, ensuring a sturdy connection to PCB or cable assembly.
The pitch size for this model is 2.769 mm, which is standard for D-Sub connectors.
This model is a male connector, designed for compatibility with matching female connectors.
It complies with IP67 sealing, providing protection against dust ingress and temporary immersion in water.
This connector supports through hole mounting, suitable for PCB applications.
The Norcomp 772-E15-113R001 is manufactured in the United States.
Industries such as industrial automation, medical equipment, and consumer boating electronics can benefit from this connector's design and specifications.
