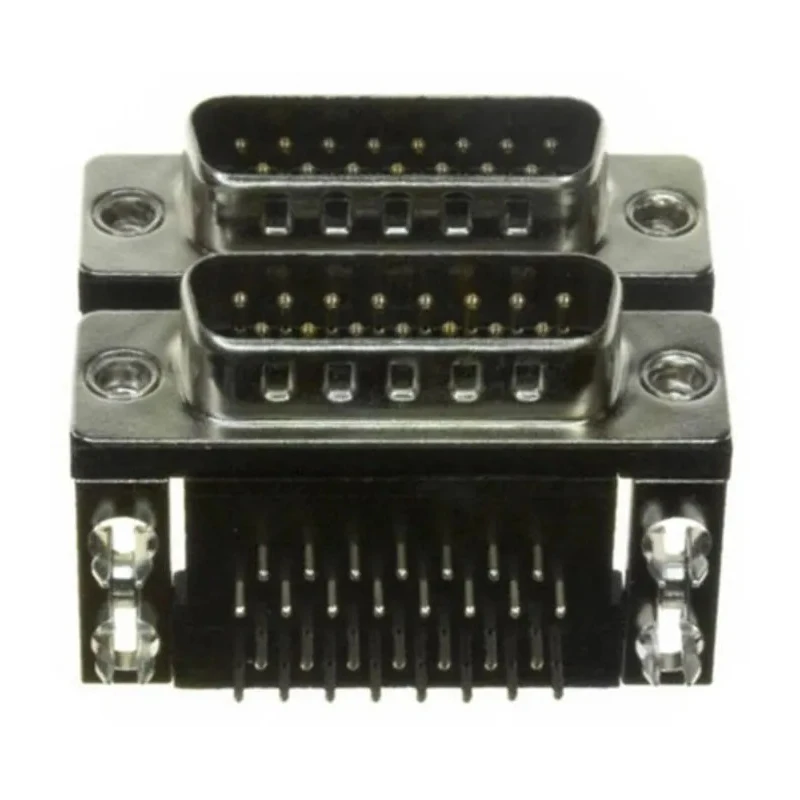

Norcomp Right Angle 15 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-015-613R491

Norcomp 189-015-613R491 is a precision-engineered right angle PCB D-Sub connector offering 15 contacts per port with a fine 2.769 mm pitch. It features dual stacked DA-15 and DB-15 shell sizes, providing two connector ports in one compact unit to maximize PCB space efficiency, especially in complex electronic assemblies.

The connector incorporates high-performance stamped brass contacts plated with gold to ensure optimal conductivity and corrosion resistance. Encased in a robust nickel-plated steel shell, it offers superior electromagnetic shielding and grounding capability enhanced by ground indents, reducing interference in high-frequency applications.

Designed for applications demanding reliable connectivity, this rugged D-Sub Connector supports a 5 ampere current rating and can endure operating voltages up to 1 kV. It is compatible with solder termination and secures firmly with 4 to 40 insert mounting hardware or hex standoffs.

Its thermoplastic insulator is rated UL94V-0, providing high-temperature tolerance up to 260°C during manufacturing processes. The connector is suitable for industrial electronics, communications equipment, and instrumentation where PCB space is limited but high-density connections are essential.

This product is crafted in Taiwan, Province Of China, adhering to strict manufacturing standards to ensure consistent quality and long-lasting performance. Provides space-saving dual stacked ports ideal for compact PCB layouts.

Gold-plated brass contacts ensure high performance and reliability. Steel shell with nickel plating offers enhanced shielding and grounding. Rated current of 5A and voltage withstand up to 1 kV. Operates within a temperature range from -55°C to 105°C for versatile industrial use.

Mounting hardware includes secure 4 to 40 inserts for stable installation. Solder termination type ensures durable contact connections. Suitable for multiple gender configurations with female and male contacts. The insulator is UL94V-0 high-temperature thermoplastic resistant to 260°C.

Manufactured in Taiwan, Province Of China with high-quality standards. Explore more precision connectors and electronic components to support your manufacturing and PCB assembly needs here at EnvMart.
