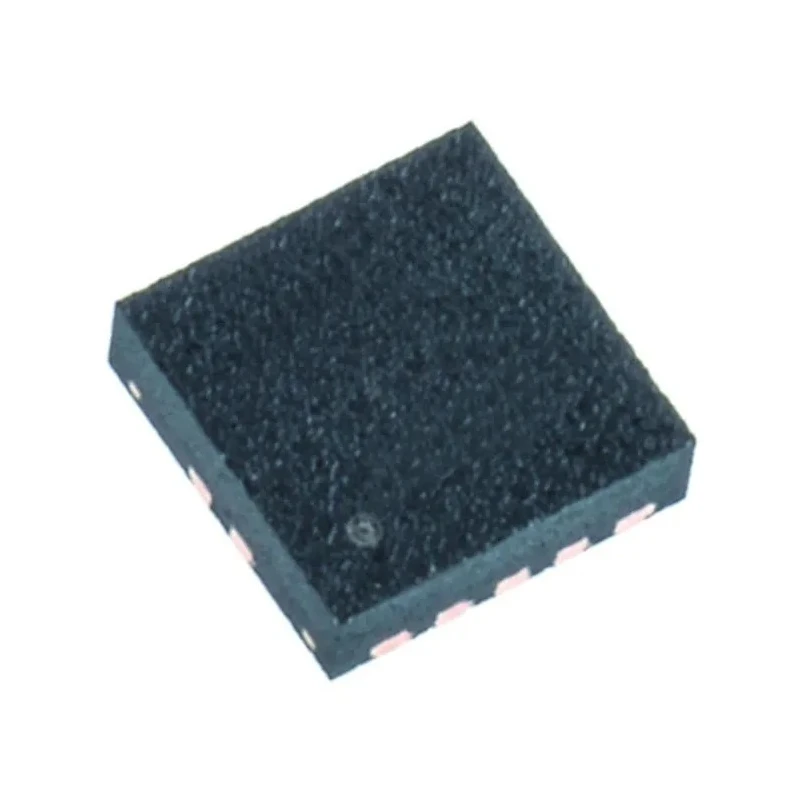

Texas Instruments 5-Channel Fixed DC/DC Converter, 5.5V Output, 1.2A Current, 10-Pin SON Package TPS63002DRCT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 5-Channel Fixed DC/DC Converter, 5.5V Output, 1.2A Current, 10-Pin SON Package TPS63002DRCT

Name: Texas Instruments 5-Channel Fixed DC/DC Converter, 5.5V Output, 1.2A Current, 10-Pin SON Package TPS63002DRCT
Brand: Texas Instruments
SKU: 203111



Category DC/DC Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	900μm
Length	3mm
Model	TPS63002DRCT
Width	3mm
Mount Type	Surface
Output type	Fixed
Series	TPS63002
Maximum Operating Temperature	85°C
Package Type	SON
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Switching Frequency	1.5MHz
Maximum Output Current	1.2A
Maximum Output Voltage	5.5V
Minimum Input Voltage	1.8V
Pin Count	10
Minimum Output Voltage	1.2V

Key Features

Operates with input voltage range from 1.8V to 5.5V.
Features a fixed output voltage type with a minimum output voltage of 1.2V.
Supports up to 1.5MHz maximum switching frequency for efficient power conversion.
Encapsulated in a compact 10-pin SON surface mount package measuring 3mm by 3mm by 900 micrometers in height.
Designed to operate in temperature range from -40°C to 85°C.
Integrated step-down/step-up buck-boost converter ideal for battery-powered applications.
Uses a single inductor for seamless transition between step-up and step-down modes.
Suitable for cellular phones and handheld devices requiring stable power management.

Product Description

Texas Instruments TPS63002DRCT is a highly integrated 5-channel fixed DC/DC converter IC designed for efficient power management in portable and battery-powered devices. It delivers a maximum output voltage of 5.5V and supports a maximum output current of 1.2A with a fixed output voltage configuration. The device operates with a minimum input voltage of 1.8V and a maximum input voltage of 5.5V, making it versatile for various low-voltage power supply requirements.

Encased in a 10-pin SON surface mount package with compact dimensions of 3mm by 3mm and a height of 900μm, this converter IC is optimized for space-constrained applications. The device functions reliably within a wide operating temperature range of -40°C to 85°C, suitable for industrial and commercial use cases.

The TPS63002DRCT incorporates a buck-boost design using a single external inductor to perform step-up and step-down voltage conversion automatically. Its maximum switching frequency of 1.5MHz enhances efficiency and reduces electromagnetic interference. This DC/DC converter is an ideal solution for powering cellular phones, handheld devices, and other battery-operated electronics that require seamless voltage regulation across varying battery voltages.

With no automotive standard compliance or specific certifications listed, this product is tailored for general industrial and electronic applications demanding precise, fixed output voltage control. Its surface mount package simplifies PCB assembly and integration in complex electronic designs.

Operates across a wide input voltage range from 1.8V to 5.5V. Fixed output voltage type with five output channels. Maximum output current is rated at 1.2A for steady power delivery. High switching frequency of up to 1.5MHz for efficiency.

Compact 10-pin SON surface mount package (3mm x 3mm x 900μm). Functions reliably within -40°C to 85°C ambient temperature. Ideal for battery-powered and portable electronic devices. Automates step-up/down voltage switching using a single inductor.
