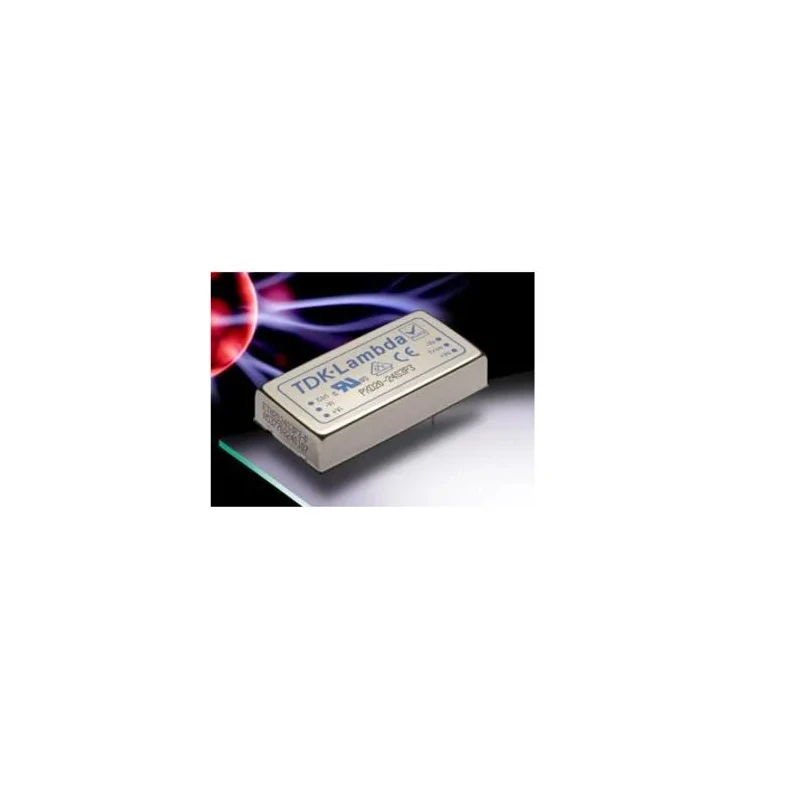

TDK-Lambda DC/DC Converter Dual Output 15V DC 330mA, 36V DC Input, 9V DC Input, 10W, PCB Mount, DIP Package PXD10-24WD15

TDK-Lambda PXD10-24WD15 DC/DC Converter is a high-quality dual output power supply designed for industrial and telecommunications use. This device delivers 10 watts of output power from a compact 2 inch by 1 inch by 10.2 mm DIP package that mounts directly on printed circuit boards (PCB).

The converter supports a wide input voltage range of 9V dc to 36V dc with an ultra-wide 4:1 input ratio. It outputs dual voltages of ±15V dc at currents of 330 mA, suitable for powering critical electronic modules requiring dual rails.

Safety and durability are key features, with an isolation voltage of 1.6 kV, six-sided shielding, and protections against short circuits and over voltages. The product operates reliably over a wide temperature span from -40°C up to 105°C, making it suitable for harsh industrial or telecom environments.

With an MTBF of nearly two million hours and an efficiency of 80%, this converter ensures long operational life and energy efficiency. The DIP package type and the PCB mount design facilitate easy integration into embedded systems.

Compact size of 2in length, 1in width, and 10.2mm depth DIP package. Ultra-wide 4:1 input voltage range for flexible powering options. Dual output voltages ±15V dc, 330 mA output current per rail. Isolation voltage rated at 1600 VDC with six-sided shielding.

Operating temperature range from -40°C to 105°C for extreme conditions. Short circuit and over voltage protections embedded for safety. Highly reliable with MTBF of 1,976,000 hours. Efficiency of approximately 80% optimized for low power loss.

This DC/DC converter series from TDK-Lambda is ideal for use in industrial automation, telecommunication base stations, mobile telecom devices, and test equipment where compact size, reliability, and electrical isolation are critical.

Choose from a range of models in the PXDE series for your specific voltage and power requirements on EnvMart's Electronics & Electricals DC/DC Converter category.
