KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 50V dc ±2 % Tolerance Surface Mount 0805 KGM Series 08055A102GAT2A

Free Delivery in India | Lowest Global Shipping Charges

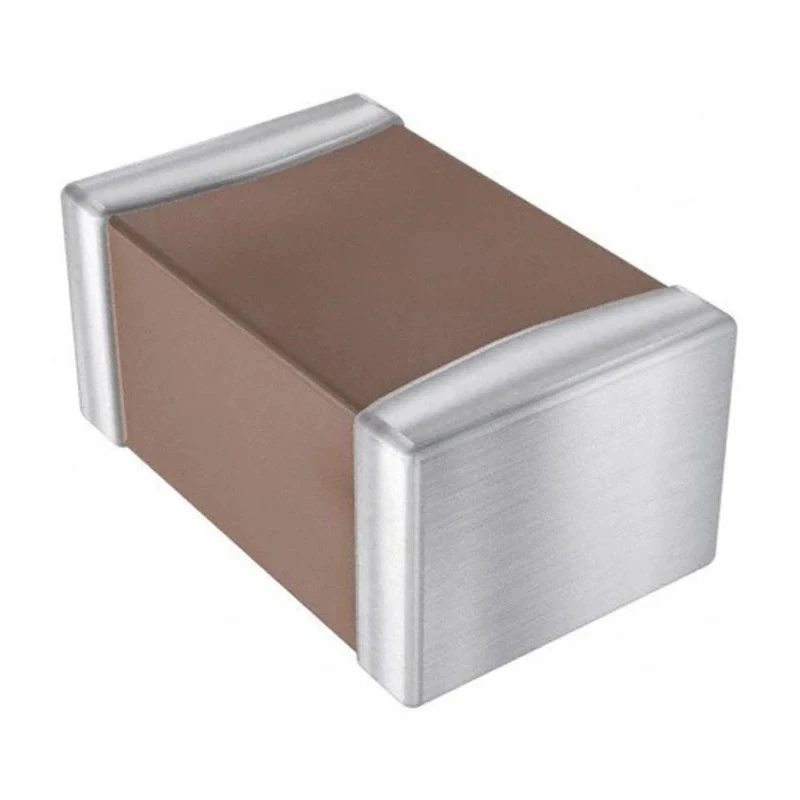

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 50V dc ±2 % Tolerance Surface Mount 0805 KGM Series 08055A102GAT2A

Name: KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 50V dc ±2 % Tolerance Surface Mount 0805 KGM Series 08055A102GAT2A
Brand: KYOCERA AVX
SKU: 203030



Category Passive Components Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	KYOCERA AVX
Height	0.94mm
Length	2.01mm
Model	08055A102GAT2A
Packaging	Reel
Width	1.25mm
Mount Type	Surface
Series	KGM
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±2 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	C0G
Suppression Class	Class I

Key Features

This capacitor is part of the KGM series with an 0805 package size.
It features a stable C0G (NPO) dielectric with minimal capacitance variation over temperature.
The tolerance is tight at ±2 %, ensuring precision performance.
Mount type is surface mount with nickel barrier terminations and tin plating.
The component has dimensions of 2.01 mm length, 1.25 mm width, and 0.94 mm height.
Operating temperature range spans from -55°C to 125°C.
Suppression class is Class I for improved noise reduction.
Packaging is supplied on reel, facilitating automated assembly processes.

Product Description

KYOCERA AVX 08055A102GAT2A is a 1 nF Multilayer Ceramic Capacitor designed for surface mount technology (SMT) applications. It features a compact 0805 package footprint with precise ±2 % capacitance tolerance and a 50V dc voltage rating. The capacitor employs a C0G (NPO) dielectric material, recognized for its exceptional stability and low capacitance drift, making it suitable for high precision and temperature critical circuits.

The KGM series capacitor dimensions are 2.01 mm in length, 1.25 mm in width, and 0.94 mm in height, making it ideal for space-constrained designs in electronics manufacturing. The termination type includes nickel barrier terminations with tin plating, ensuring reliable solderability and long-term durability.

The device operates reliably within a temperature range of -55°C to +125°C, with a capacitance change of less than ±0.3 % over this span, making it suitable for demanding environments including automotive and telecommunications electronics.

This capacitor belongs to Class I suppression class and is particularly effective in decoupling and noise suppressing roles in circuits. It is supplied in reels, supporting mass production and automated pick-and-place mounting.

Applications include mobile phones, video tuner circuits, and other electronic devices requiring stable temperature-compensated capacitance performance. This component provides highly stable capacitance over wide temperature ranges.

Excellent for high-frequency applications due to low dielectric losses. Compact 0805 package suitable for high-density PCB layouts. High reliability surface mount termination designed for automated assembly. Wide operating temperature range from -55°C to 125°C ensures versatility.

Tight capacitance tolerance of ±2 % for precision electronic circuits.
