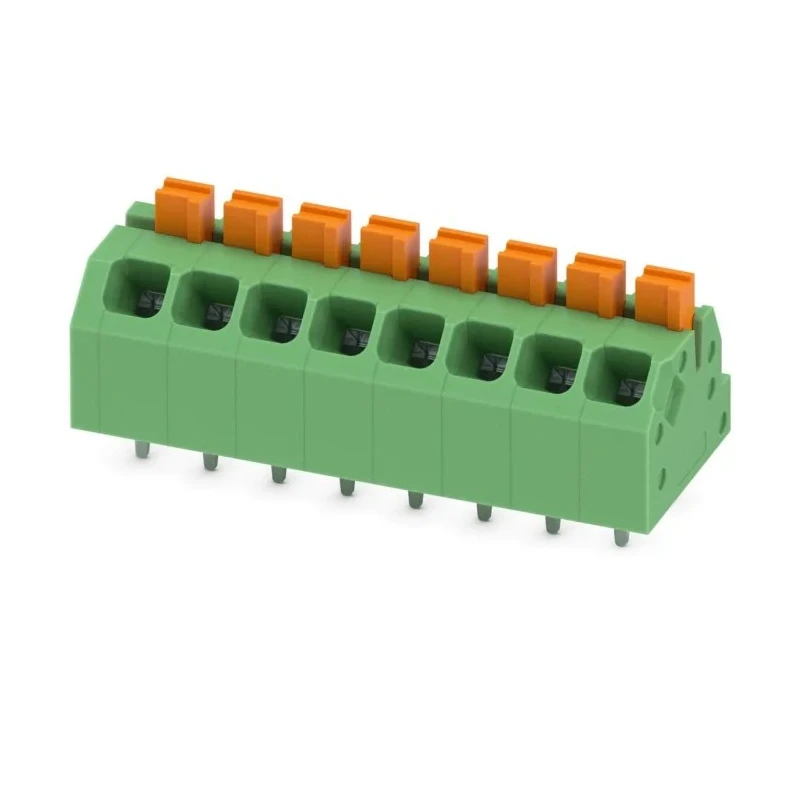

Phoenix Contact 8-Contact 3.5 mm Pitch Angled Wave Soldering Mount PCB Terminal Block 1862107
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862107 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 8-3.5-EL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Standards/Approvals | cULus Recognised, EU RoHS |
| Number of Contacts | 8 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 8, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Supports current rating of 16 A for robust electrical performance.
- Constructed from durable polyamide housing ensuring longevity.
- Compact 45° angled orientation ideal for space-saving PCB layouts.
- Push-in spring connection with finger-operated release for easy wiring.
- Integrated test connection facilitates quick quality inspections.
- UL94 V-0 rated housing for high fire safety compliance.
- Tin-plated contacts enable secure wave soldering mount.
- Compatible with wire sizes 24 to 16 AWG, enhancing versatility.
Product Description
Phoenix Contact 1862107 is a high-quality angled wave soldering mount PCB Terminal Block designed for efficient, tool-free wire connections in electronic and automation applications. This terminal block features 8 contact positions arranged at a 3.5 mm pitch, suitable for compact circuit board integration.
The push-in spring connection system simplifies assembly and disassembly without requiring tools, while the finger-operated release button offers convenient operation for maintenance. Its polyamide housing material ensures mechanical robustness and electrical insulation compliance, with an UL94 V-0 rating that halts burning within 10 seconds, providing enhanced fire safety.
The angled 45° wire mounting design allows optimal use in tight spaces, with tin-plated contacts that secure reliable solder connections during wave soldering processes. Current rating of up to 16 A and voltage rating of 160 V supports demanding circuit requirements. Compatibility with wire gauges from 24 to 16 AWG adds versatility for various wiring needs.
Additional features include an integrated test connection for easy quality checks during manufacturing or servicing. The terminal block's green color coding aids quick visual identification on printed circuit boards.
This product is made in Germany and conforms to cULus and EU RoHS standards, ensuring high reliability and compliance with international regulations. It is widely used in industrial, automation, and electronics manufacturing environments for signal and power distribution via PCB connections.
Supports current rating of 16 A for robust electrical performance. Constructed from durable polyamide housing ensuring longevity. Compact 45° angled orientation ideal for space-saving PCB layouts. Push-in spring connection with finger-operated release for easy wiring.
Integrated test connection facilitates quick quality inspections. UL94 V-0 rated housing for high fire safety compliance. Tin-plated contacts enable secure wave soldering mount. Compatible with wire sizes 24 to 16 AWG, enhancing versatility.
Explore our range of electronic components and PCB accessories at EnvMart for reliable and compliant industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 16 A and a voltage rating of 160 V, making it suitable for demanding circuit requirements.
The contacts are arranged at a pitch of 3.5 mm, which is ideal for compact circuit board integration.
It features a push-in spring connection system that allows for tool-free assembly and disassembly, enhancing ease of use.
This unit has a compact 45° angled orientation, which is designed for space-saving PCB layouts.
It is compatible with wire sizes ranging from 24 to 16 AWG, providing versatility for various wiring needs.
The housing is constructed from durable polyamide, ensuring mechanical robustness and electrical insulation compliance.
Yes, it has a UL94 V-0 rating for high fire safety compliance, indicating it halts burning within 10 seconds.
This terminal block conforms to cULus and EU RoHS standards, ensuring high reliability and compliance with international regulations.
It features 8 contact positions, allowing for multiple connections on the PCB.
The terminal block is color-coded green, which aids in quick visual identification on printed circuit boards.
It includes an integrated test connection that facilitates quick quality inspections during manufacturing or servicing.
This product is made in Germany, ensuring high-quality manufacturing standards.
