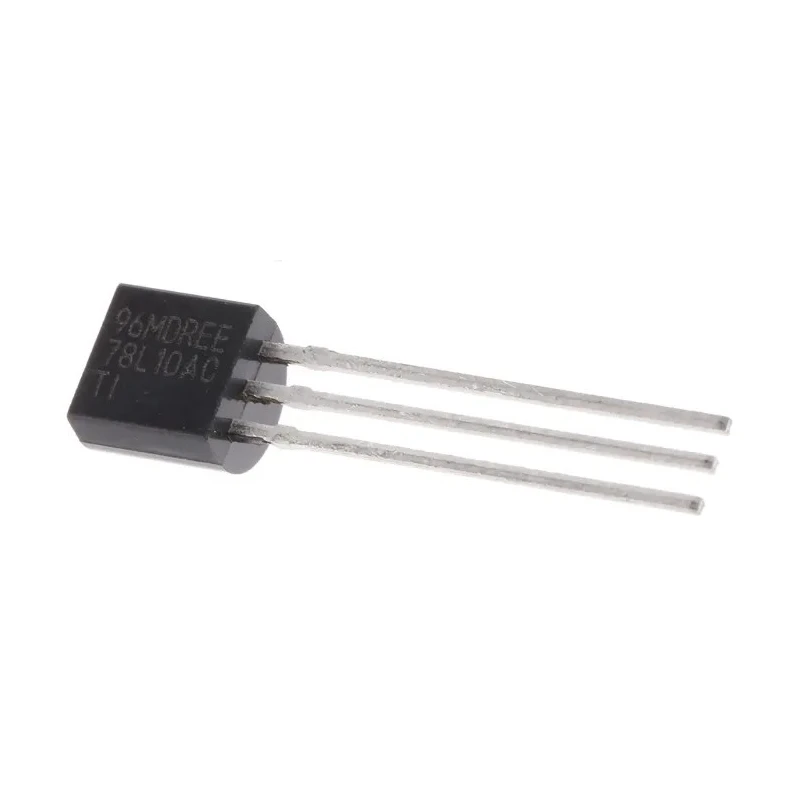

Texas Instruments Voltage Regulator TO-92 25V 3-Pin Positive Linear Regulator UA78L10ACLP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments UA78L10ACLP, Voltage Regulator 25V TO-92 3-Pin RS S |
| Brand | Texas Instruments |
| Height | 3.68mm |
| Length | 4.83mm |
| Model | UA78L10ACLP |
| Width | 3.43mm |
| Mount Type | Through Hole |
| Series | UA78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 25V |
| Quiescent Current | 3.8mA |
| Minimum Input Voltage | 12.5V |
| Pin Count | 3 |
Key Features
- Offers a fixed positive output voltage suitable for various electronic applications.
- Equipped with internal thermal overload shutdown and internal current limiting for safety.
- Has a quiescent current of 3.8 mA to ensure low power consumption.
- Compact TO-92 package with dimensions 4.83mm length, 3.43mm width, and 3.68mm height.
- Supports a maximum operating temperature of 125°C for reliable performance.
- Features 3-pin through-hole mount configuration facilitating easy PCB assembly.
- Compatible with applications such as telecommunications, computing, and portable devices.
- Part of the UA78Lxx series with positive polarity.
Product Description
Texas Instruments UA78L10ACLP is a precision linear voltage regulator housed in a TO-92 package with three pins designed for through-hole mounting. This positive polarity regulator supports a maximum input voltage of 25V with a minimum input voltage of 12.5V, providing a stable and fixed regulated output voltage for sensitive electronic circuits.
The device features internal thermal overload protection and short-circuit current limiting to enhance its robustness in industrial and consumer electronic applications. Its low quiescent current of 3.8mA helps conserve energy, making it suitable for portable and battery-powered devices.
The compact physical dimensions of 4.83mm length, 3.43mm width, and 3.68mm height allow for efficient PCB space usage while maintaining reliable electrical performance. Rated for operation up to 125°C, the regulator is suitable for use in environments requiring stable voltage control under high temperature conditions.
Typical industrial applications include on-card power regulation, telecommunication equipment, computing devices, and other electronic instruments that demand steady voltage outputs for signal integrity and system stability.
Offers a fixed positive output voltage suitable for various electronic applications. Equipped with internal thermal overload shutdown and internal current limiting for safety. Has a quiescent current of 3.8 mA to ensure low power consumption.
Compact TO-92 package with dimensions 4.83mm length, 3.43mm width, and 3.68mm height. Supports a maximum operating temperature of 125°C for reliable performance. Features 3-pin through-hole mount configuration facilitating easy PCB assembly.
Compatible with applications such as telecommunications, computing, and portable devices. Part of the UA78Lxx series with positive polarity.
This voltage regulator is an essential component for designers and engineers looking to implement reliable and energy-efficient voltage regulation in various electronic design projects and industrial systems. It is available in packages ready for insertion into machinery for improved production efficiency. Explore more products like this in the Voltage Regulator category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the UA78L10ACLP voltage regulator is 25V.
This model has a quiescent current of 3.8 mA, which helps ensure low power consumption.
The TO-92 package has dimensions of 4.83mm in length, 3.43mm in width, and 3.68mm in height.
It supports a maximum operating temperature of 125°C, making it suitable for high-temperature environments.
This model features a 3-pin through-hole mount configuration for easy PCB assembly.
This voltage regulator is compatible with applications such as telecommunications, computing, and portable devices.
The UA78L10ACLP is a positive polarity voltage regulator.
Yes, it is equipped with internal thermal overload protection and short-circuit current limiting for enhanced safety.
This model is part of the UA78Lxx series of voltage regulators.
The minimum input voltage for the UA78L10ACLP is 12.5V.
The UA78L10ACLP has a pin count of 3.
The country of origin for this voltage regulator is India.
