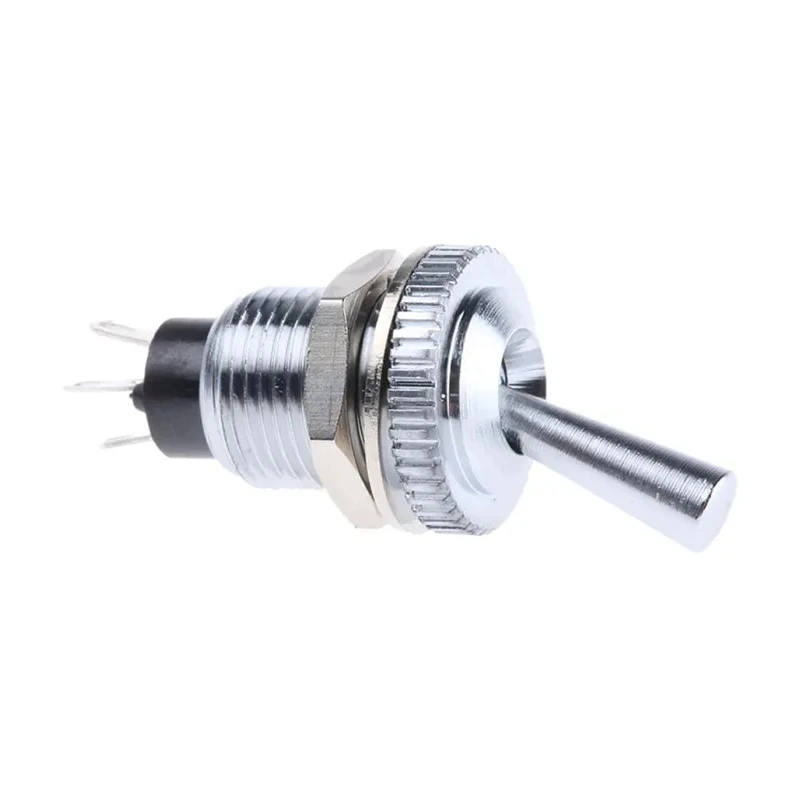

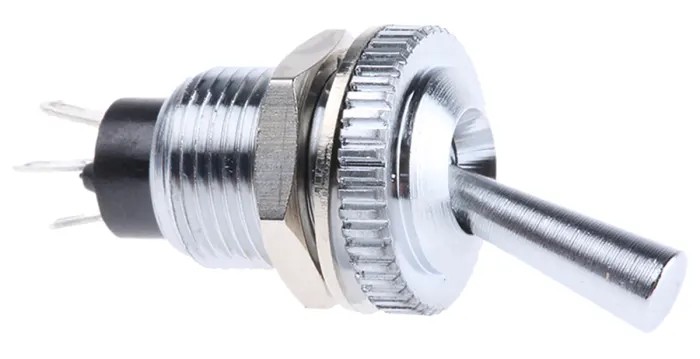

EOZ Toggle Switch Panel Mount On-On SPDT Solder Terminal 48 V dc 220 V ac 01 17001 21

Free Delivery in India | Lowest Global Shipping Charges

EOZ Toggle Switch Panel Mount On-On SPDT Solder Terminal 48 V dc 220 V ac 01 17001 21



Category Toggle Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Height	35.2mm
IP Rating	IP67, IP65
Approvals	CECC, NFC, MIL, OTAN, LNZ etc. for the tropical version
Mount Type	Panel
Series	DJET
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-40°C

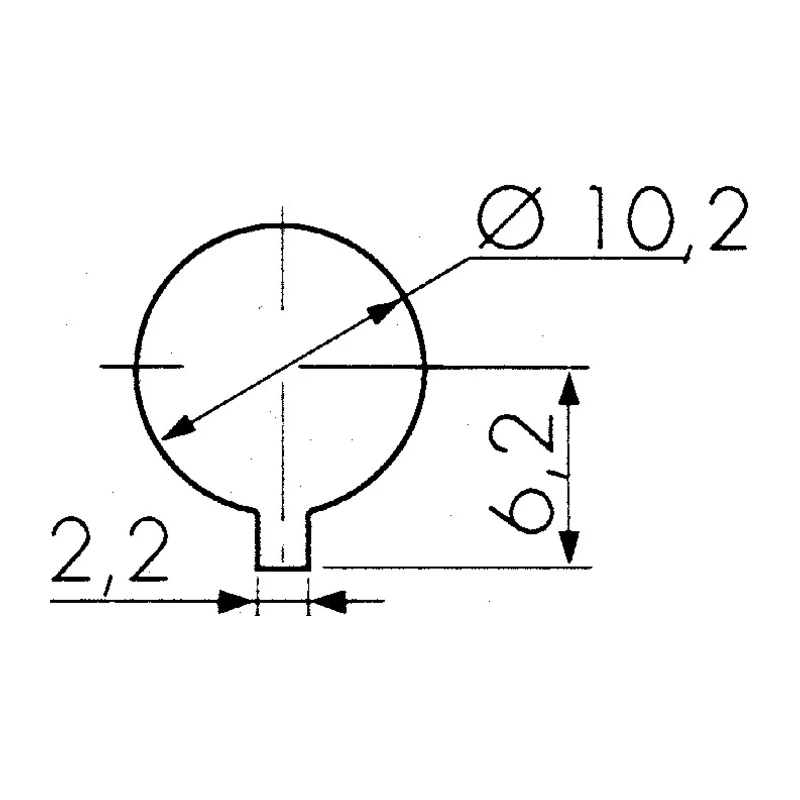

Panel Cutout Size	10.2 mm
Terminal type	Solder
Standards/Approvals	LNZ, IEC, CECC, RoHS, OTAN, NFC, MIL
Switch Operation	On-On
Actuator Length	10.9mm
Contact DC Voltage	48V dc
Switch Contact Current	4.5A
Mechanical Life	100000Operations
Contact AC Voltage	220V ac

Key Features

SPDT contact configuration for versatile circuit control.
On-On switch operation providing stable switching states.
Rated switch contact current of 4.5 A for moderate loads.
Panel mountable with a panel cutout size of 10.2 mm.
Solder terminal type for secure and durable wiring connections.
IP67 and IP65 ratings ensure dust and water resistance.
Operating temperature range from -40°C to 85°C suited for harsh environments.
Mechanical life rated for 100,000 operations guaranteeing longevity.

Product Description

EOZ 01 17001 21 Toggle Switch is a robust panel mount SPDT (Single Pole Double Throw) switch designed for both DC and AC applications with ratings of 48 V dc and 220 V ac. The On-On switch operation ensures reliable and crisp switching actions suitable for multiple circuit configurations. This switch utilizes solder terminals, providing secure electrical connections ideal for industrial and commercial electrical assemblies.

Constructed to withstand harsh environments, it boasts IP67 and IP65 ingress protection ratings, ensuring resistance against dust ingress and short-term water immersion. The switch operates effectively in extreme temperature ranges from -40°C to 85°C, making it well-suited for use in industrial, electrical automation, and control panel applications.

The compact design includes a panel cutout size of 10.2 mm and an actuator length of 10.9 mm, facilitating simple integration into control panels and instrumentation. It offers a switch contact current rating of 4.5 A, supporting moderate current switching duties with high contact reliability and stable resistance.

Durability is enhanced by a mechanical life expectancy of 100,000 operations, ensuring long-term performance and maintenance-free operation. Compliance with multiple international standards including LNZ, IEC, CECC, RoHS, OTAN, NFC, and MIL certifications highlights its safety and quality for professional electrical use.

This switch is ideal for use in industrial control panel installation, electrical equipment manufacturing, and automation systems requiring precise and durable switching solutions. Its rugged construction with proven electrical ratings and certifications ensures dependable service in demanding environments.

SPDT contact configuration for versatile circuit control. On-On switch action with stable and clear switching states. Solder terminal type for reliable wiring connections. Ingress protection rated IP67 and IP65 for dust and water resistance.

Operating temperature range from -40°C to 85°C for harsh environments. Mechanical life of 100,000 operations ensures long-lasting reliability. Compact actuator length of 10.9 mm and mounting cutout of 10.2 mm facilitate panel integration.

Rated switch contact current is 4.5 A for moderate electrical loads. Complies with LNZ, IEC, CECC, RoHS, OTAN, NFC, and MIL standards for safety and quality.
