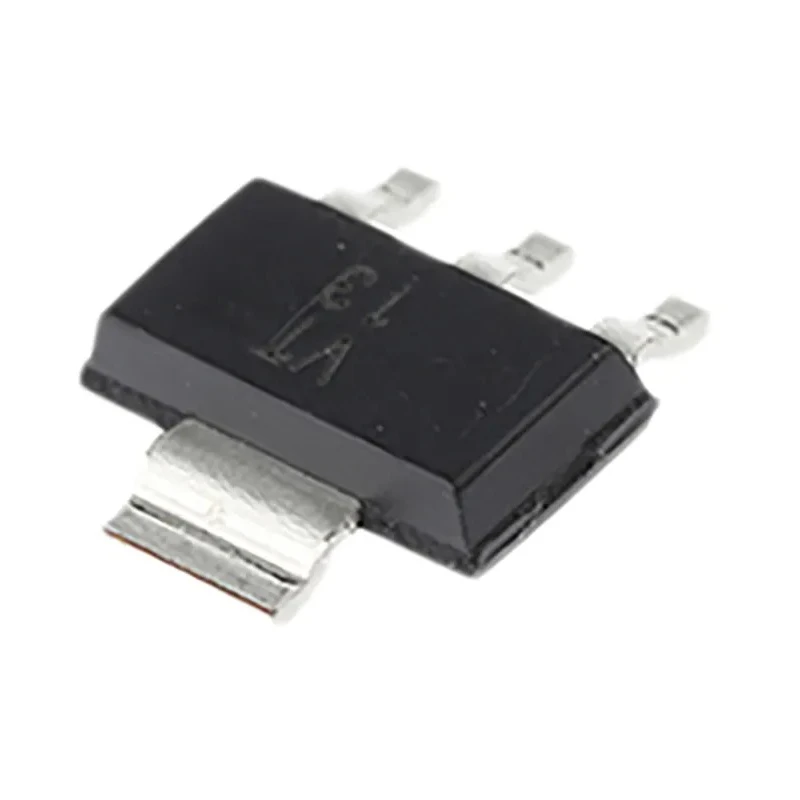

Texas Instruments Voltage Regulator 15V Surface Mount SOT-223 4-Pin TLV1117-50CDCY

Texas Instruments TLV1117-50CDCY is an advanced low dropout (LDO) linear voltage regulator designed for efficient voltage regulation in electronic devices. It is housed in a compact SOT-223 4-pin surface mount package, making it highly suitable for modern compact electronic assemblies. This regulator supports a regulated output voltage of 15V with a minimum input voltage of 6.4V and a maximum input voltage of 15V, providing precise voltage control within these ranges.

The device operates with a quiescent current of only 5mA, enhancing energy efficiency in battery-powered and low-power applications. It supports a maximum continuous output current of up to 800mA, suitable for power management in various consumer, industrial, and instrumentation circuits. The device is optimized to maintain stable voltage output with low dropout, ensuring performance where conventional linear regulators may fail.

Thermal and overload protections are incorporated to provide device reliability and longevity, with a maximum operating temperature rating of 125°C. The positive polarity design ensures compatibility with standard positive input supply systems.

With compact physical dimensions of 6.5mm length, 3.5mm width, and 1.6mm height, it occupies minimal PCB space, ideal for compact instrumentations, power connectors, and semiconductor modules. The surface mount technology allows easy automated assembly and enhanced manufacturing efficiency.

Operates with low input-output voltage differential suitable for sensitive electronics. Provides a maximum output current of up to 800mA ensuring efficient power delivery. Features a low quiescent current of 5mA to enhance energy savings.

Supports operating temperatures up to 125°C with thermal protection. Compact SOT-223 4-pin surface mount package dimensions perfect for space-constrained PCBs. Designed for positive polarity supply applications with stable voltage regulation.

Designed to improve production efficiency with ready-to-use packaged components.

This Voltage Regulator is widely applicable in industrial, instrumentation, laboratory, and consumer electronics where precise, stable voltage output is required. Texas Instruments' TLV1117 series continues to offer reliable and economical power management solutions meeting modern electronic demands.
