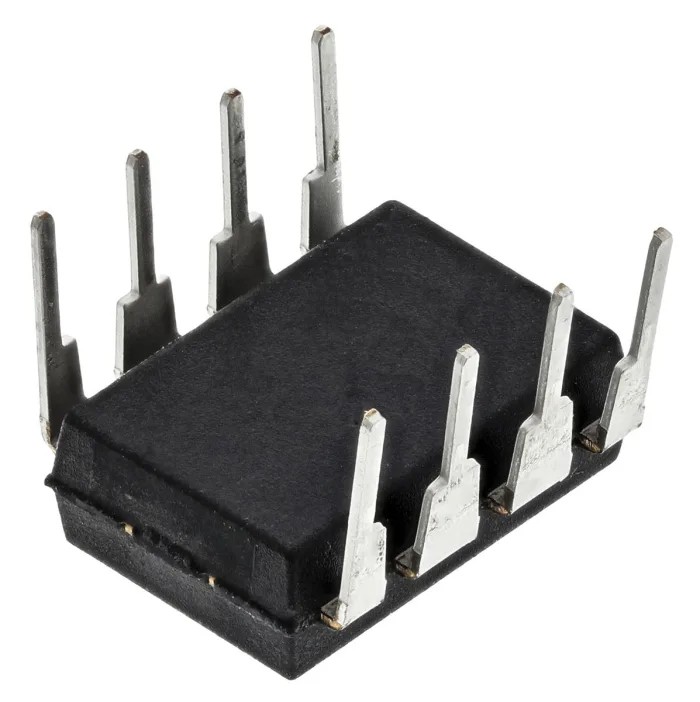

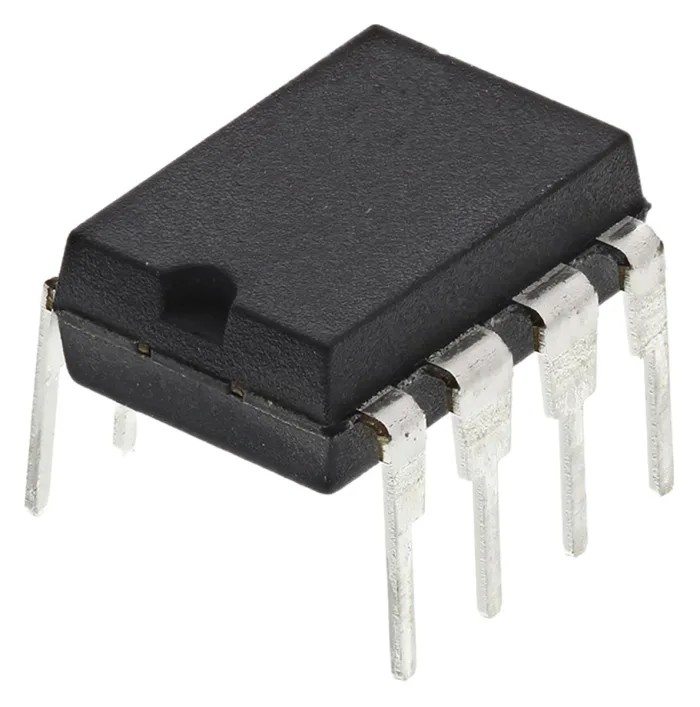

Texas Instruments MOSFET Gate Driver 9A Output Current 8-Pin PDIP 15V UCC27322P

Texas Instruments UCC27322P MOSFET Gate Driver is a high-performance integrated circuit designed to provide efficient gate driving capability to MOSFET and IGBT power devices. It operates at a fixed supply voltage of 15 volts, delivering a high output current of 9 amperes to ensure rapid switching and minimal losses in power management circuits. Packaged in a compact 8-pin PDIP format, this device facilitates easy through-hole mounting on printed circuit boards.

The driver features five output channels driven by a single input driver, allowing versatile connection options for multiple MOSFET or IGBT gates in industrial, laboratory, automotive, and commercial electronic applications. It exhibits fast switching characteristics with both rise and fall times of 20 nanoseconds, enhancing the efficiency and responsiveness of the power stage.

Designed for reliability, the UCC27322P supports operation across a broad temperature range from -40°C up to 105°C, fitting demanding environmental conditions encountered in manufacturing, HVAC control systems, and power conversion equipment. Measuring 9.81mm in length, 6.35mm in width, and 4.57mm in height, it offers an optimal balance between performance and PCB space utilization.

The component belongs to the UCC2732 series of MOSFET and IGBT drivers by Texas Instruments, a trusted brand with worldwide recognition for quality semiconductor products. The device does not carry automotive-specific standards but is widely used in industrial and commercial electronic assemblies where robust gate drive solutions are critical.

High output current of 9 amperes suitable for demanding MOSFET drive requirements. Operating voltage range fixed at 15 volts ensuring stable performance. Compact 8-pin PDIP package ideal for through-hole mounting applications.

Fast switching times with 20ns rise and fall times improve overall efficiency. Single driver configuration with five outputs for versatile circuit integration. Wide operating temperature range from -40°C to 105°C for reliability in harsh environments.

Dimensions of 9.81mm length by 6.35mm width and 4.57mm height optimize PCB space. Series UCC2732 family component designed specifically for MOSFET and IGBT applications. Through-hole mount type enhances mechanical stability in circuit boards.

Non-automotive rated component without additional standards or approvals.

Suitable for industrial, laboratory, manufacturing, and electronic design applications, the UCC27322P driver enhances power MOSFET and IGBT switching performance. EnvMart customers can reliably source this Texas Instruments device for their electronic component needs.
