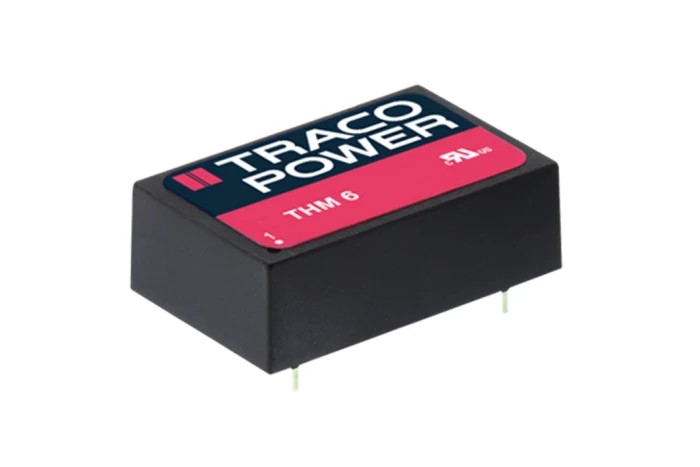

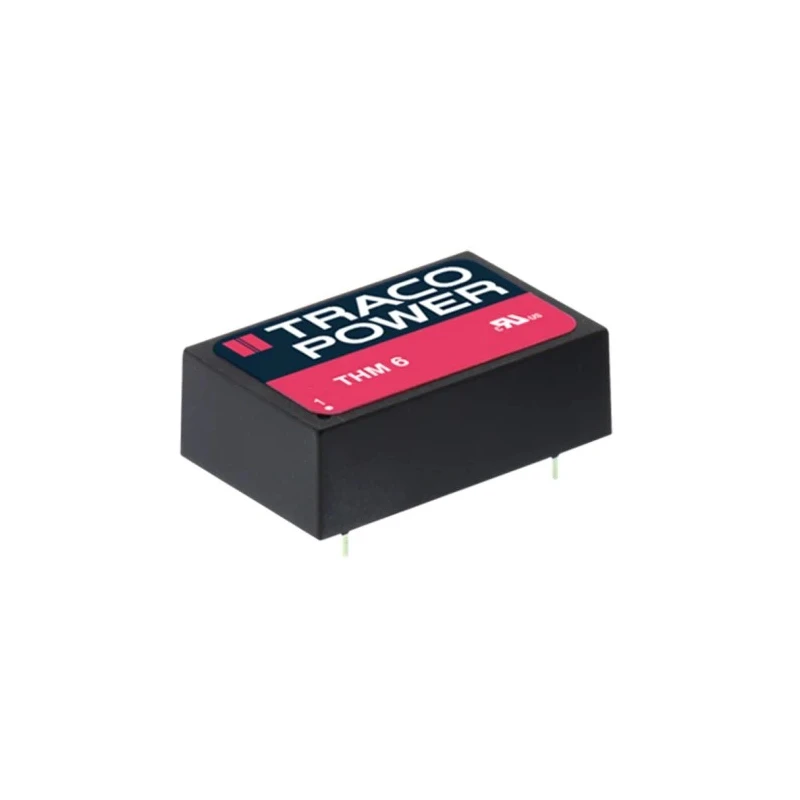

TRACOPOWER 6 W Medical Grade DC/DC Converter 12 V DC Output 500 mA 9 V DC Input 4.5 V Input 2:1 Input Ratio PCB THM 6-0512
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 6 DC/DC Converter, 12V dc/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 31.8mm |
| Model | THM 6-0512 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | THM 6 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4700000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage |
Key Features
- PCB mountable DIP package ensures easy integration into electronic assemblies.
- Offers reinforced isolation rated at 5kV AC for high safety in medical applications.
- Operates efficiently with 86% efficiency across a wide temperature range from -40°C to 90°C.
- Complies with IEC/EN/ES 60601-1 3rd edition standards for 2 x MOPP patient protection.
- Low leakage current below 2 μA to ensure patient safety and system integrity.
- High mean time between failures (MTBF) of 4,700,000 hours indicates robust reliability.
- Suitable for demanding applications such as medical devices, transportation control, measurement, and IGBT drivers.
- Includes a 5-year product warranty for quality assurance.
Product Description
TRACOPOWER THM 6-0512 is a high-performance medical grade DC/DC converter designed for precise and reliable power supply in sensitive applications. It features a 2:1 input voltage range accepting from 4.5V up to 9V DC and provides a stable 12V DC output at 500mA current with maximum output power of 6 watts. This converter is housed in a DIP-24 plastic package well suited for PCB mounting, enhancing ease of assembly and integration.
The unit delivers reinforced isolation rated at 5kV AC RMS, ensuring electrical safety in medical environments, and features an exceptionally low leakage current of less than 2 microamps. It complies with IEC/EN/ES 60601-1 3rd edition certification, offering two means of patient protection (2x MOPP). TRACOPOWER integrates ISO 14971 risk management for product safety and manufactures under ISO 13485 quality management standards.
Operating reliably over an ambient temperature range from -40°C to +90°C and capable of functioning at altitudes up to 5000 meters, this converter performs optimally in demanding industrial, medical, transportation, and measurement applications. It boasts a high efficiency of 86% and a robust MTBF of 4.7 million hours, endorsing its dependability.
The physical dimensions are compact and practical for designs requiring minimal footprint: 31.8 mm length, 20.3 mm width, and 10.2 mm depth, housed in a DIP package for straightforward PCB mounting. This product supports critical electronic assemblies with acceptance criteria according to IPC-A-610 Level 3 and is backed by a 5-year warranty.
Wide 2:1 input voltage range for flexible power sourcing. 5kV AC reinforced isolation for safety compliance. IEC/EN/ES 60601-1 certified medical grade design with 2x MOPP protection. Low leakage current below 2 µA for patient safety.
High efficiency of 86% reduces heat dissipation. Extended operating temperature from -40°C to 90°C. Reliable operation up to 5000 meters altitude. Compact DIP-24 plastic package suitable for PCB mounting. Quality assured under ISO 13485 and ISO 14971 risk management.
5-year warranty for long-term reliability. This converter is ideal for medical devices, transportation control systems, precision measurement equipment, and IGBT driver applications. Explore the Electronics & Electricals category at EnvMart for more DC/DC Converters and related power supply components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 12V DC with a maximum output current of 500mA.
It accepts a wide input voltage range from 4.5V to 9V DC, with a 2:1 input ratio.
The converter operates with an efficiency of 86%, which helps reduce heat dissipation during operation.
The dimensions are 31.8 mm in length, 20.3 mm in width, and 10.2 mm in depth, designed for PCB mounting.
It features reinforced isolation rated at 5kV AC, ensuring electrical safety in medical applications.
This unit operates reliably over an ambient temperature range from -40°C to +90°C.
The MTBF is rated at 4,700,000 hours, indicating robust reliability for long-term use.
It complies with IEC/EN/ES 60601-1 3rd edition standards, providing two means of patient protection (2x MOPP).
It is suitable for demanding applications such as medical devices, transportation control, measurement, and IGBT drivers.
The converter is housed in a DIP-24 plastic package, which is suitable for PCB mounting.
The maximum output power is 6 watts, providing sufficient power for various applications.
The leakage current is less than 2 microamps, ensuring patient safety and system integrity.
