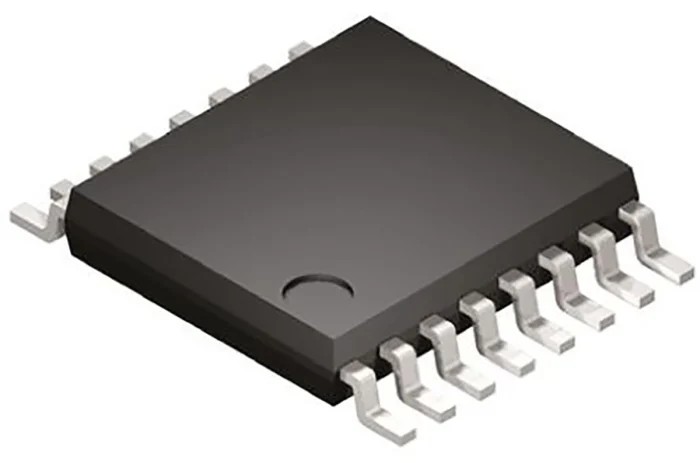

Texas Instruments 2-Channel Non-Inverting Line Transceiver, Dual Channel, 16-Pin TSSOP SN65C3232EPW

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Channel Non-Inverting Line Transceiver, Dual Channel, 16-Pin TSSOP SN65C3232EPW

Name: Texas Instruments 2-Channel Non-Inverting Line Transceiver, Dual Channel, 16-Pin TSSOP SN65C3232EPW
Brand: Texas Instruments
SKU: 202674



Category Line Interface ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.2mm
Length	5.1mm
Model	SN65C3232EPW
Width	4.5mm
Mount Type	Surface
Series	SNx5C3232E
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Dual Channel Transceiver
Number Of Channels	2
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	SN65
Logic Function	Line Driver
Minimum Supply Voltage	3V
Maximum High Level Output Current	-1mA
Maximum Propagation Delay Time @ CL	300ns
Supply Current	1mA
Maximum Low Level Output Current	1.6mA

Key Features

Operates with a supply voltage range of 3V to 5.5V.
Supports a maximum data rate of up to 1 Mbps with a propagation delay of 300 ns.
Features surface mount type with a height of 1.2 mm, length 5.1 mm, and width 4.5 mm.
Input type is single ended with non-inverting polarity.
Designed for robust RS-232 communication protocols conforming to TIA/EIA-232-F and ITU V.28 standards.
Supply current consumption is low at 1 mA for efficient power usage.
Operating temperature range from -40°C to 85°C ensures use in industrial applications.
Includes ESD protection up to ±15 kV Human Body Model and ±8 kV contact discharge levels.

Product Description

Texas Instruments SN65C3232EPW is a high-performance 2-channel, non-inverting line transceiver designed for data communication interfaces. This dual-channel device integrates two line drivers and two line receivers in a compact 16-pin TSSOP package, suitable for surface mounting on printed circuit boards.

Operating with a supply voltage range from 3 V to 5.5 V, it supports robust RS-232 communication protocols compliant with TIA/EIA-232-F and ITU V.28 standards. The device offers up to 1 Mbps data rates with a maximum propagation delay time of 300 ns, making it well-suited for industrial and communication applications requiring fast and reliable data transmission.

The device features non-inverting polarity with single-ended inputs, consuming only 1 mA supply current, contributing to low power system designs. Its operating temperature range of -40°C to 85°C enables reliable operation in demanding environments.

With physical dimensions of 1.2 mm height, 5.1 mm length, and 4.5 mm width, the SN65C3232EPW is compact and space-efficient. This line transceiver includes enhanced electrostatic discharge (ESD) protection resilient to ±15 kV human-body-model and ±8 kV contact discharge, ensuring device longevity and reliability in industrial environments.

This product is ideal for use in industrial automation, control systems, instrumentation, and any application requiring dependable RS-232 line driver functionality. The package is supplied in tubes ready for insertion into assembly machinery to improve production efficiency.

Operates with 3 V to 5.5 V supply voltage range. Dual channel transceiver with 2 drivers and 2 receivers. Data rate up to 1 Mbps with 300 ns propagation delay. Surface mount 16-pin TSSOP package. Robust RS-232 protocol compliance.

Low supply current of 1 mA. Operating temperature from -40°C to 85°C. High ESD protection levels for reliability. Compact size for space-sensitive applications. Discover a wide range of semiconductor Line Interface ICs at EnvMart for your electronic design needs.
