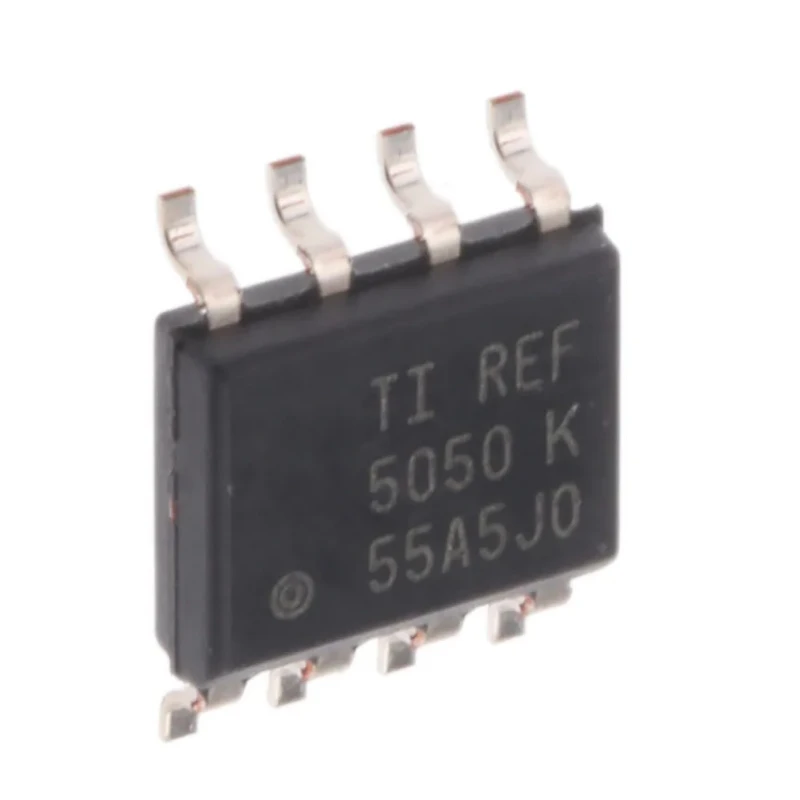

Texas Instruments Fixed Series Voltage Reference 5V ±0.05% 10mA 8-Pin SOIC REF5050ID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | REF5050ID |
| Mount Type | Surface |
| Output type | Fixed |
| Series | REF5050 |
| Temperature Coefficient | 3 ppm/°C |
| Output Current | 10mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 30 ppm/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 18V |
| Line Regulation | 1 ppm/V |
| Minimum Input Voltage | 5.2V |
| Pin Count | 8 |
| Reference Voltage | 5V |
| Initial Accuracy | ±0.05 % |
Key Features
- Provides a stable 5V fixed reference voltage for accurate power management.
- Features ±0.05% initial accuracy ensuring high precision in voltage regulation.
- Supports output current up to 10mA to drive various electronic circuits.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Surface mount package SOIC with 8 pins for compact PCB integration.
- Maximum input voltage of 18V suitable for diverse electronic applications.
- Temperature coefficient of 3 ppm/°C ensures minimal drift with temperature changes.
- Line regulation of 1 ppm/V for superior voltage stability.
Product Description
Texas Instruments REF5050ID is a fixed series voltage reference IC delivering a precise 5V output voltage with initial accuracy ±0.05% and supporting an output current of 10mA. This device is housed in an 8-pin SOIC surface mount package, designed for reliable integration into a broad range of electronic circuits requiring strict voltage stability.
Featuring a compact footprint with dimensions of 4.9mm length and 1.58mm height, the REF5050ID supports a maximum input voltage of 18V and minimum input voltage of 5.2V, making it suitable for various industrial, laboratory, and commercial power management applications.
The device operates efficiently across a wide temperature range from -40°C to 125°C, delivering excellent line regulation at 1 ppm/V and load regulation of 30 ppm/mA, backed by a low temperature coefficient of 3 ppm/°C to minimize voltage variations under changing environmental conditions.
Its series topology offers precise and stable voltage reference critical for instrumentation, control systems, power supplies, and sensor calibration in sectors including electronics manufacturing, test and measurement, automotive electronics, and communication equipment.
Provides a stable 5V fixed reference voltage for accurate power management. Features ±0.05% initial accuracy ensuring high precision in voltage regulation. Supports output current up to 10mA to drive various electronic circuits.
Operates reliably in temperatures ranging from -40°C to 125°C. Surface mount package SOIC with 8 pins for compact PCB integration. Maximum input voltage of 18V suitable for diverse electronic applications. Temperature coefficient of 3 ppm/°C ensures minimal drift with temperature changes.
Line regulation of 1 ppm/V for superior voltage stability. Load regulation of 30 ppm/mA to maintain output quality under load variations. Compact dimensions: 4.9mm length and 1.58mm height for efficient board space use. Explore our wide range of power management ICs and electronic components on EnvMart for precise Voltage Reference and industrial-grade applications.
