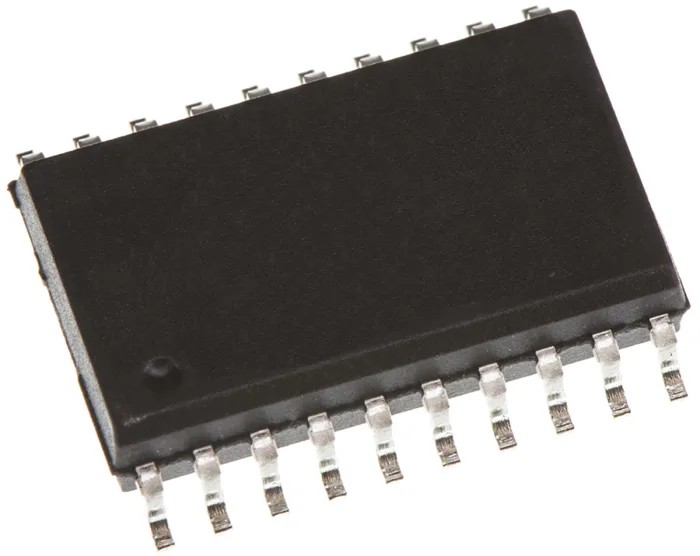

Texas Instruments 2-Channel Class A-B Audio Amplifier IC, Surface Mount, 20-Pin SOIC Package TPA6120A2DWP

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Channel Class A-B Audio Amplifier IC, Surface Mount, 20-Pin SOIC Package TPA6120A2DWP

Name: Texas Instruments 2-Channel Class A-B Audio Amplifier IC, Surface Mount, 20-Pin SOIC Package TPA6120A2DWP
Brand: Texas Instruments
SKU: 202523
Price: 4.94 USD
Availability: InStock



Category Audio Amplifier ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	2.55mm
Length	12.82mm
Model	TPA6120A2DWP
Width	7.52mm
Mount Type	Surface
Series	TPA6120A2
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	20
Maximum Supply Voltage	28V
Minimum Supply Voltage	12V
Amplifier Type	Audio
Amplifier Class	Class A-B

Key Features

Operates with a supply voltage range from 12V to 28V.
Supports dual audio channels for stereo sound amplification.
Designed with Class A-B amplifier technology for high fidelity audio output.
Compact SOIC package with 20 pins for efficient PCB integration.
Wide operating temperature range from -40°C to 85°C for reliable performance.
Surface mount design allows easy automated PCB assembly.
Compatible with various audio and multimedia applications requiring quality amplification.
Does not comply with automotive standards, intended for general electronic use.

Product Description

Texas Instruments TPA6120A2DWP is a highly integrated dual-channel audio power amplifier IC utilizing Class A-B architecture. It is packaged in a 20-pin SOIC surface mount form factor, providing a compact solution suitable for headphone drivers and stereo audio applications.

Operating reliably over a wide temperature range from -40°C to 85°C, and supporting supply voltages between 12V and 28V, this amplifier IC delivers high-fidelity audio performance for consumer electronics and audio equipment.

The SOIC package ensures easy and space-saving PCB mounting, making it ideal for integration into compact audio devices. Although not approved under automotive standards, it meets general industrial and commercial semiconductor requirements.

This amplifier IC is optimized for dual-channel stereo use, enabling clear sound reproduction with low distortion, benefiting audio enhancement in devices such as headphones, multimedia players, and other sound amplification hardware.

Operates with supply voltage from 12V to 28V. Class A-B amplifier technology ensures quality output. Dual audio channels support stereo applications. Compact 20-pin SOIC surface mount package. Wide operating temperature range of -40°C to 85°C.

Dimensions are 12.82mm length, 7.52mm width, and 2.55mm height for PCB layout planning. Designed for audio amplification in consumer electronics. Not certified for automotive applications.

This Texas Instruments audio amplifier IC is recommended for engineers and designers focusing on audio and multimedia product development requiring efficient dual-channel amplification in a compact package. Explore more Audio Amplifier ICs and related components in EnvMart's Electronics & Electricals catalog for your design and manufacturing needs.
