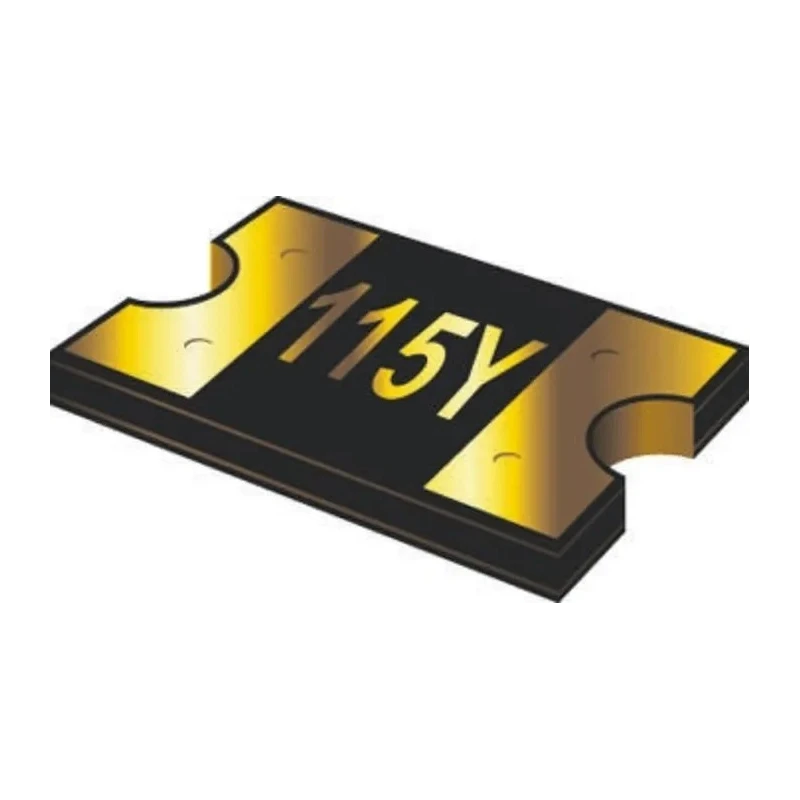

Bourns 1.1 A 6V Resettable Fuse MF-NSMF110-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6V |
| Brand | Bourns |
| Height | 0.7mm |
| Length | 3.4mm |
| Model | MF-NSMF110-2 |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | MF-NSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Trip Current | 2.2A |
| Power Dissipation | 0.6W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.1s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.06Ω |
| Maximum Resistance | 200mΩ |
| TE Connectivity 1.1A Resettable Fuse, 6V dcBrand | TE Connectivity |
Key Features
- Compact 1206 footprint saves board space.
- Fast time to trip of 0.1 seconds.
- Electroless nickel immersion gold plated terminals ensure reliable connections.
- Rated current capacity up to 100A for fault tolerance.
- Maintenance-free automatic reset for thousands of cycles.
- Suitable for surface mount technology applications.
- Operates between -40°C to 85°C temperatures.
- Low profile and symmetrical design for easy PCB mounting.
Product Description
Bourns MF-NSMF110-2 is a resettable fuse with a hold current rating of 1.1 A and voltage rating of 6V, designed to protect electrical and electronic circuits from excessive current conditions. Featuring a compact 1206 package size, this surface mount device provides reliable circuit protection in a small form factor.
This fuse uses an advanced resettable design that automatically switches from a low resistance to a high resistance state upon detecting overload or short circuit conditions, and resets when the fault is cleared and power is removed, allowing it to endure thousands of fault cycles without replacement.
The device has a fast response time to trip faults in 0.1 seconds and supports a trip current of 2.2 A with a maximum current rating of 100 A. The terminals feature electroless nickel immersion gold plating for corrosion resistance and durability.
The MF-NSMF110-2 operates effectively within temperatures ranging from -40°C to 85°C and dissipates power up to 0.6 W. Its symmetrical and low-profile design enables easy placement on printed circuit boards, saving valuable board space.
Applications include security systems, power supplies and transformers, automotive and medical equipment, instrumentation, computing peripherals, audio visual, and telecommunications systems.
Compact 1206 footprint saves board space. Fast trip time of 0.1 seconds for fault protection. Electroless nickel immersion gold plated terminals for reliability. Current rating of 100 A and hold current of 1.1 A. Maintenance-free automatic reset capability.
Operates between -40°C and 85°C temperature range. Power dissipation rating of 0.6 W. Surface mount technology suitable for automated assembly. Low profile and symmetrical design on PCB. Compliant with UL and RoHS standards.
This Resettable Fuse is ideal for industrial, automotive, medical, telecommunications, and electronic circuit protection applications. For more resets and similar products, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 1.1 A.
The maximum current rating for the MF-NSMF110-2 is 100 A.
This resettable fuse has a voltage rating of 6V.
The trip current for the MF-NSMF110-2 is 2.2 A.
The time to trip for this resettable fuse is 0.1 seconds.
This model operates effectively within a temperature range of -40°C to 85°C.
The package size of the MF-NSMF110-2 is 1206.
The terminals of the MF-NSMF110-2 are electroless nickel immersion gold plated for reliable connections.
The power dissipation rating for the MF-NSMF110-2 is 0.6 W.
This resettable fuse is suitable for applications in security systems, power supplies, automotive equipment, and telecommunications systems.
This model complies with UL and RoHS standards.
The dimensions of this resettable fuse are 3.4 mm in length, 1.8 mm in width, and 0.7 mm in height.
