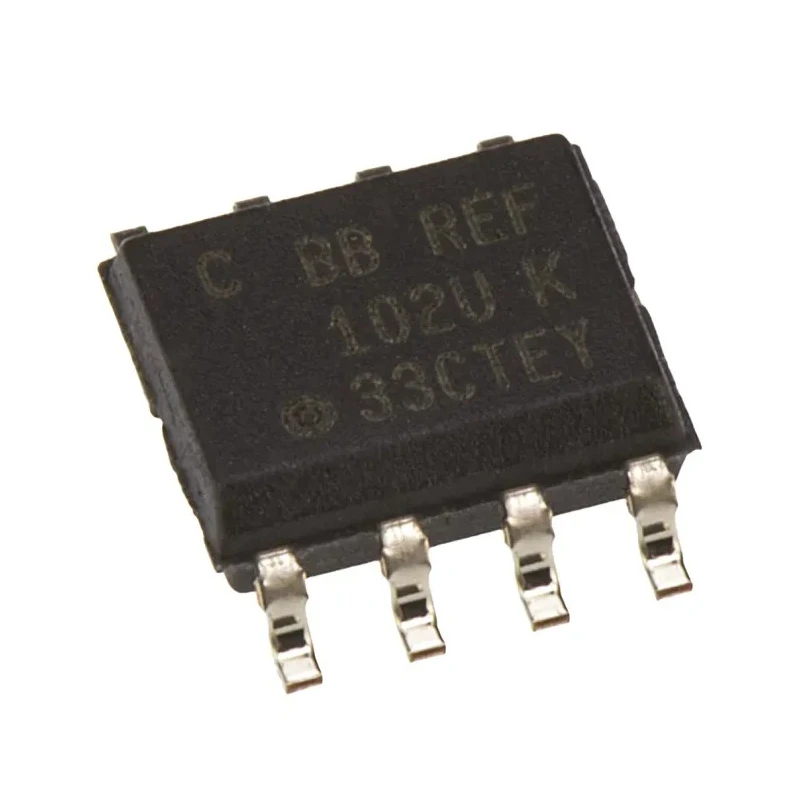

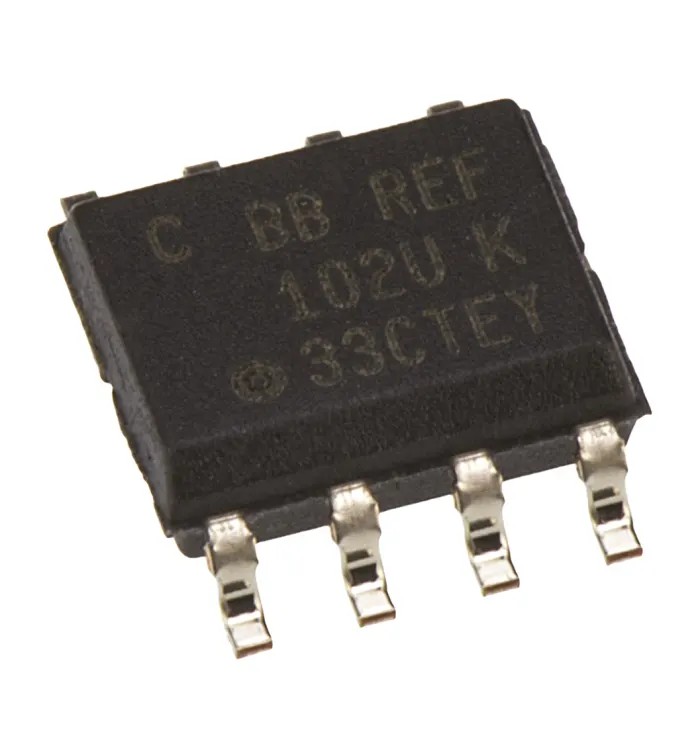

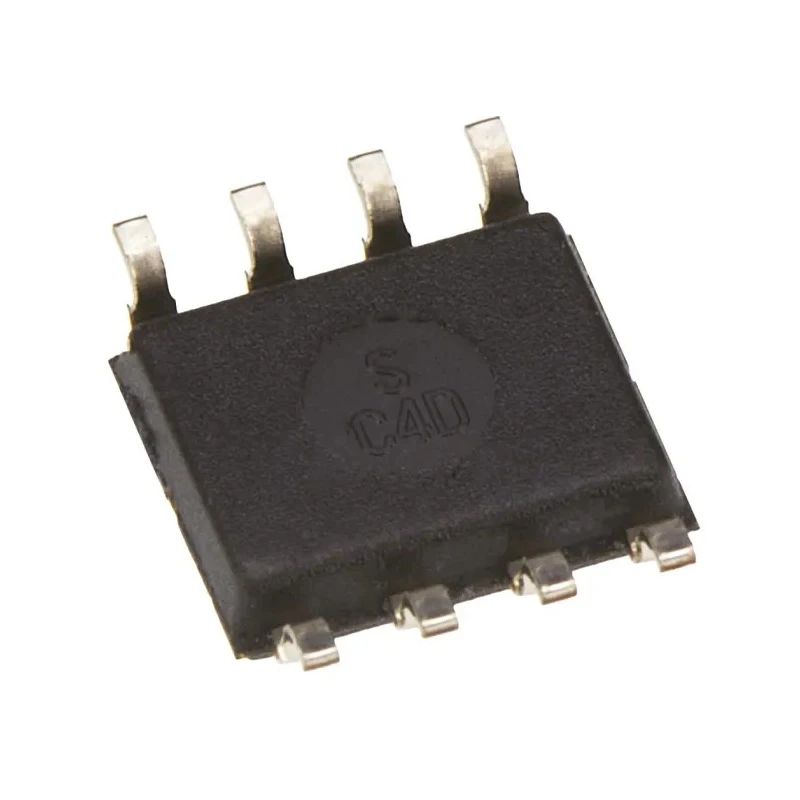

Texas Instruments Fixed Series Voltage Reference 10V ±2.5% Initial Accuracy 8-Pin SOIC REF102CU

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Fixed Series Voltage Reference 10V ±2.5% Initial Accuracy 8-Pin SOIC REF102CU

Name: Texas Instruments Fixed Series Voltage Reference 10V ±2.5% Initial Accuracy 8-Pin SOIC REF102CU
Brand: Texas Instruments
SKU: 202494
Price: 18.89 USD
Availability: InStock



Category Voltage Reference Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	4.9mm
Model	REF102CU
Mount Type	Surface
Output type	Fixed
Series	REF102
Temperature Coefficient	2.5 ppm/°C
Topology	Series
Maximum Operating Temperature	85°C
Package Type	SOIC
Load Regulation	20 ppm/mA
Minimum Operating Temperature	-25°C
Reference Type	Fixed
Maximum Input Voltage	40V
Line Regulation	1 ppm/V
Minimum Input Voltage	11.4V
Pin Count	8
Reference Voltage	10V
Initial Accuracy	±2.5 %

Key Features

Provides a fixed reference voltage of 10 volts for accurate power management.
Initial accuracy of ±2.5% ensures reliable voltage stability.
Temperature coefficient of 2.5 ppm/°C supports consistent performance across temperature ranges.
Surface mount SOIC package with 8 pins enhances compact PCB designs.
Operating temperature range from -25°C to 85°C aids in diverse industrial applications.
Maximum input voltage of 40V and minimum input voltage of 11.4V allow flexible power supply sources.
Line regulation of 1 ppm/V and load regulation of 20 ppm/mA enable stable voltage output despite load changes.
Series topology type providing stable fixed output voltage.

Product Description

Texas Instruments REF102CU is a fixed series voltage reference designed for precise voltage regulation applications. It provides a stable 10V output voltage with an initial accuracy of ±2.5%, suitable for industrial, laboratory, and electronic power management systems. Encased in an 8-pin SOIC surface mount package, the compact design allows easy integration on printed circuit boards.

Its temperature coefficient of 2.5 ppm/°C ensures minimal variation in output voltage over temperature ranges from -25°C to 85°C, covering a broad range of operating environments. The device supports a maximum input voltage of 40V and a minimum input voltage of 11.4V to accommodate varying supply voltages.

Ref102CU features excellent line regulation of 1 ppm/V and load regulation of 20 ppm/mA, providing stable output under varying load conditions. This ensures accurate power delivery in sensitive electronic circuits. Its physical dimensions of 1.58mm height and 4.9mm length optimize PCB layout space.

Applications include industrial automation, instrumentation, power management circuits, and other environments requiring stable reference voltages. It does not conform to automotive standards and includes no specific certifications.

Fixed 10V reference voltage for precision applications. Initial accuracy tolerance of ±2.5% for reliable outputs. Stable performance across industrial temperature ranges. Compact 8-pin SOIC surface mount package design. High input voltage range and excellent line and load regulation.

Series topology ensuring consistent fixed voltage output.

This Texas Instruments fixed series voltage reference provides dependable and accurate voltage regulation solutions suitable for electronics manufacturing and industrial applications. Explore more Voltage Reference devices in the Power Management ICs category at EnvMart.
