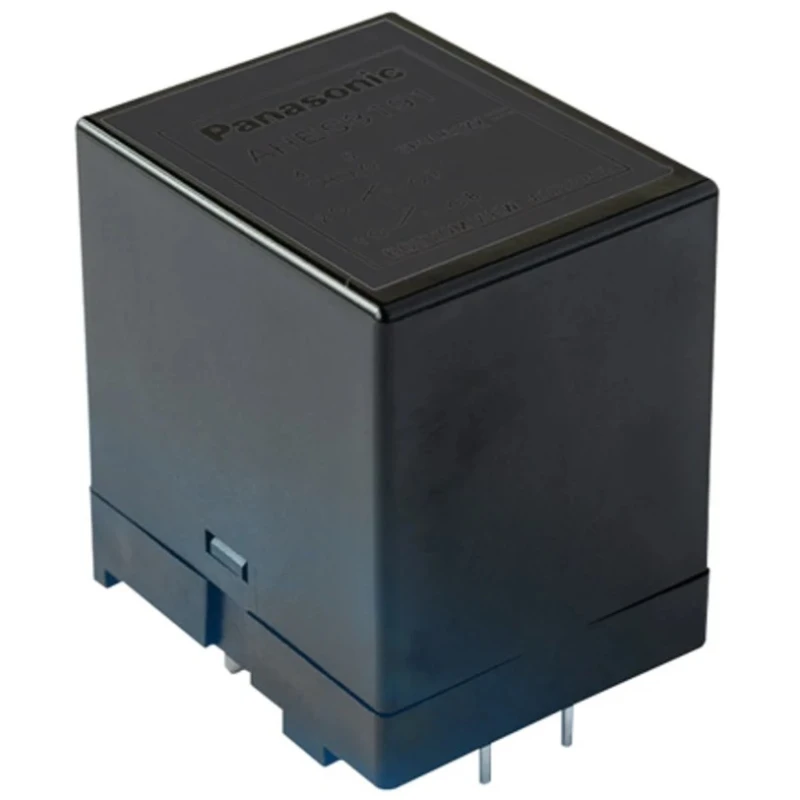

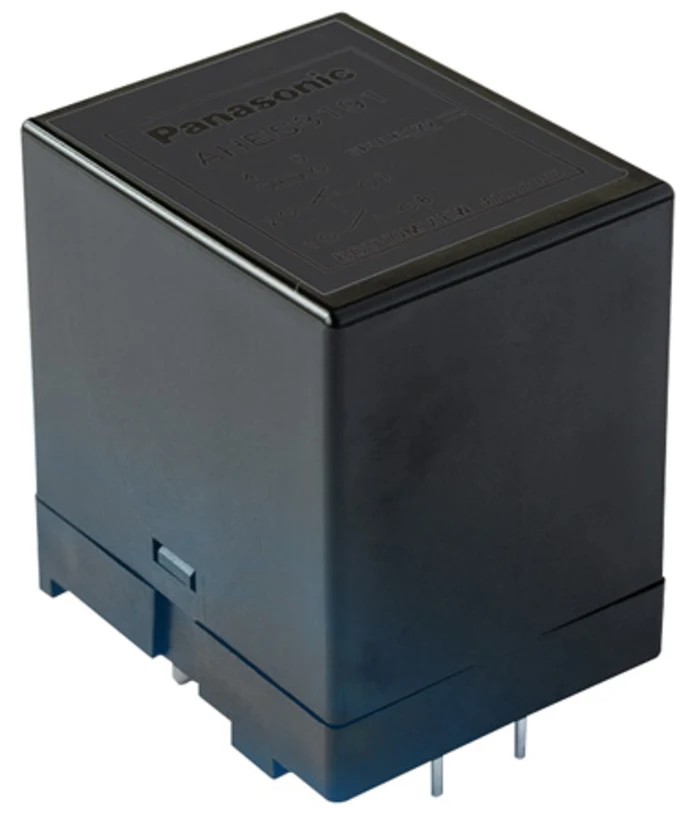

Panasonic PCB Power Relay DPST, 24V DC Coil Voltage, 35A Switching Current, Silver Alloy Contacts AHES3292
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 40mm |
| Length | 30mm |
| Model | AHES3292 |
| Width | 36mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, VDE |
| Coil Resistance | 306.4Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 480V |
| Coil Power | 1.88W |
Key Features
- Compact design suitable for PCB mounting applications.
- Coil voltage rating of 24V DC ensures reliable operation.
- High switching current capacity of 35 amperes for robust performance.
- Utilizes silver alloy contact material for durability and low contact resistance.
- Wide operating temperature range from -40°C to 85°C for versatile industrial use.
- Coil resistance of 306.4 Ω provides efficient electromagnetic operation.
- Complies with RoHS and VDE standards for quality assurance.
- Suitable for photovoltaic power generation systems and industrial equipment.
Product Description
Panasonic AHES3292 PCB Power Relay is engineered to provide high reliability and robust performance for industrial and commercial applications. Featuring a DPST (Double Pole Single Throw) contact configuration, this relay is designed for printed circuit board installation. The relay operates with a 24V DC coil, delivering efficient electromagnetic switching with a coil resistance of 306.4 Ω and power consumption of 1.88W.
The contact system includes silver alloy material offering excellent conductivity and low contact resistance of 100mΩ, supporting a switching current of up to 35A and switching power of 9.7 kVA. It can handle switching voltages up to 110V DC and 480V AC, making it versatile for various electrical circuits.
With an operational temperature range from -40°C to 85°C, the relay is suited to withstand demanding environmental conditions. Dimensions of 40mm (H) x 36mm (W) x 30mm (L) ensure compatibility with compact PCB layouts. It complies with RoHS and VDE standards, assuring safety and environmental compliance.
Typical applications include photovoltaic power generation systems like solar inverters, uninterruptible power supplies (UPS), inverters, office air conditioners, and other industrial equipment demanding reliable power relay performance.
Compact size designed for PCB mounting. 24V DC coil voltage ensuring stable relay actuation. High switching current capacity of 35A. Silver alloy contacts for enhanced durability. Wide temperature tolerance from -40°C to 85°C.
Low coil resistance supporting efficient power use. RoHS and VDE compliance for safety and quality. Fitted with PCB pin terminals for easy installation. Manufactured in Thailand with consistent quality assurance. Ideal for energy management, industrial, and HVAC applications.
This Panasonic AHES3292 PCB Power Relay is a new product ideally suited for integration in industrial automation, renewable energy systems, and electrical control panels. Explore EnvMart’s extensive range of relays and electronic components to find compatible parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 24V DC, ensuring reliable operation for various applications.
This model has a maximum switching current capacity of 35 amperes, making it suitable for robust performance in industrial settings.
The dimensions of this relay are 40mm in height, 36mm in width, and 30mm in length, allowing for compatibility with compact PCB layouts.
It utilizes silver alloy as the contact material, which provides excellent conductivity and low contact resistance.
The relay features a DPST (Double Pole Single Throw) contact configuration, suitable for various electrical circuits.
The operational temperature range for this relay is from -40°C to 85°C, making it suitable for demanding environmental conditions.
The coil resistance is 306.4 Ω, supporting efficient electromagnetic operation.
It can handle switching voltages up to 110V DC and 480V AC, providing versatility for different applications.
This model is designed for PCB mounting, featuring PCB pin terminals for easy installation.
It complies with RoHS and VDE standards, ensuring safety and environmental compliance.
Typical applications include photovoltaic power generation systems, uninterruptible power supplies (UPS), and industrial equipment.
This relay is manufactured in Thailand, ensuring consistent quality assurance.
