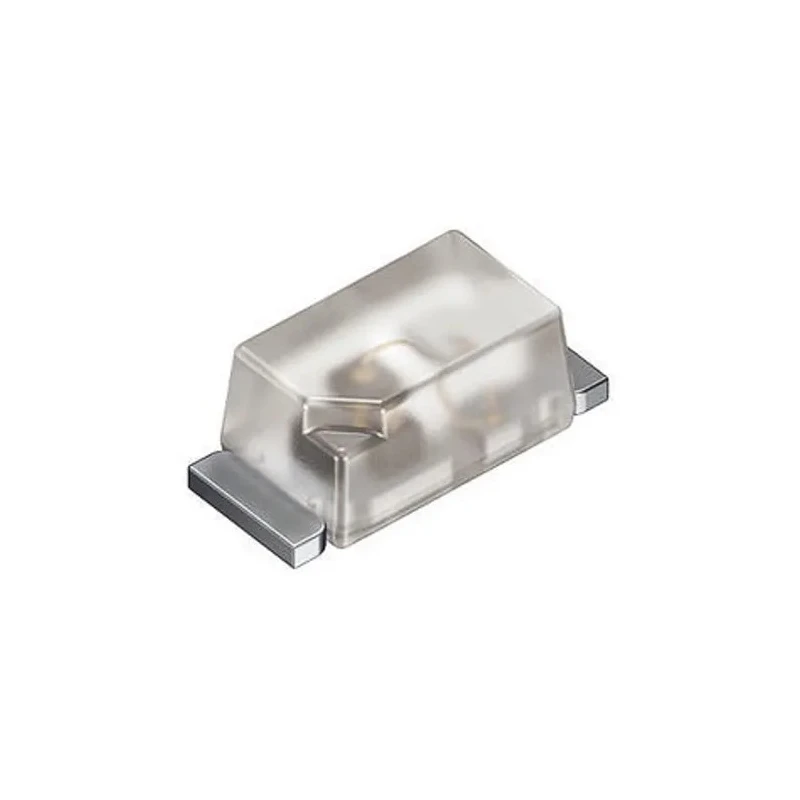

ams OSRAM 2 V Red LED 0603 Surface SmartLED LS L296-N1Q2-1

Name: ams OSRAM 2 V Red LED 0603 Surface SmartLED LS L296-N1Q2-1
Brand: ams OSRAM
SKU: 202061
Price: 0.13 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Model	LS L296-N1Q2-1
Mount Type	Surface
Series	SmartLED
Maximum forward current	60mA
Viewing angle	160 °
Package Type	0603
Standards/Approvals	RoHS, J-STD-020B, JEDEC Level 2, JESD22-A114-B, CECC 00802
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	112 mcd
Maximum Power Dissipation	170mW
Lens Dimensions	1.7 x 0.8 x 0.65 mm (L x W x H)
Lens Shape	Rectangular
Lens Finish	Diffused Resin
LED Luminous Flux	0.275 lm
ams OSRAM2.3 V Red LED SMD, LS L296-P2Q2-1Brand	OSRAM Opto Semiconductors

Key Features

Features a 2 V forward voltage with 60mA maximum forward current.
Provides high luminous intensity of 112 mcd and luminous flux of 0.275 lm.
Compact 0603 surface mounting package measuring 1.7 x 0.8 x 0.65 mm.
Wide viewing angle of 160° ensures broad light distribution.
Rectangular shape lens with diffused resin finish for smooth light emission.
Maximum power dissipation of 170mW suitable for efficient operation.
Complies with RoHS, J-STD-020B, JEDEC Level 2 standards ensuring quality and environmental safety.
Ideal for outdoor displays, signal illumination, and display backlighting applications.

Product Description

ams OSRAM LS L296-N1Q2-1 is a high-power red LED from the SMARTLED 0603 series, designed for reliable and efficient performance in electronic and optoelectronic applications. Operating at a forward voltage of 2 V and a maximum forward current of 60mA, this surface mount device is housed in the standard 0603 package with compact dimensions of 1.7 x 0.8 x 0.65 mm (L x W x H).

The LED produces a luminous intensity of 112 millicandela and luminous flux of 0.275 lumens, with a wide viewing angle of 160 degrees enabled by its rectangular diffused resin lens. Its maximum power dissipation rating is 170 mW, balancing brightness with energy efficiency.

This OSRAM SMARTLED 0603 series LED conforms to important industry standards including RoHS, J-STD-020B, JEDEC Level 2, and CECC 00802, ensuring high quality and compliance for use in commercial and industrial environments.

Typical use cases include outdoor displays, display backlighting, signal and symbol illumination, as well as floor marker lighting. The red color output with a dominant wavelength of 633 nm makes it optimal for signaling and indicator lighting applications where vivid and reliable light emission is critical.

The compact size and surface mount design facilitate automatic assembly onto PCBs, improving production efficiency for manufacturers. This LED is especially useful in industries such as electronics manufacturing, automotive signaling, and commercial display technology.

Features a 2 V forward voltage with 60mA maximum forward current. Provides high luminous intensity of 112 mcd and luminous flux of 0.275 lm. Compact 0603 surface mounting package measuring 1.7 x 0.8 x 0.65 mm. Wide viewing angle of 160° ensures broad light distribution.

Rectangular shape lens with diffused resin finish for smooth light emission. Maximum power dissipation of 170mW suitable for efficient operation. Conforms to RoHS and JEDEC standards for quality and safety. Ideal for outdoor displays, signal illumination, and display backlighting.

Supports automated PCB assembly for manufacturing efficiency. Explore more high-quality LEDs from ams OSRAM and enhance your electronic devices with reliable illumination components through EnvMart.
