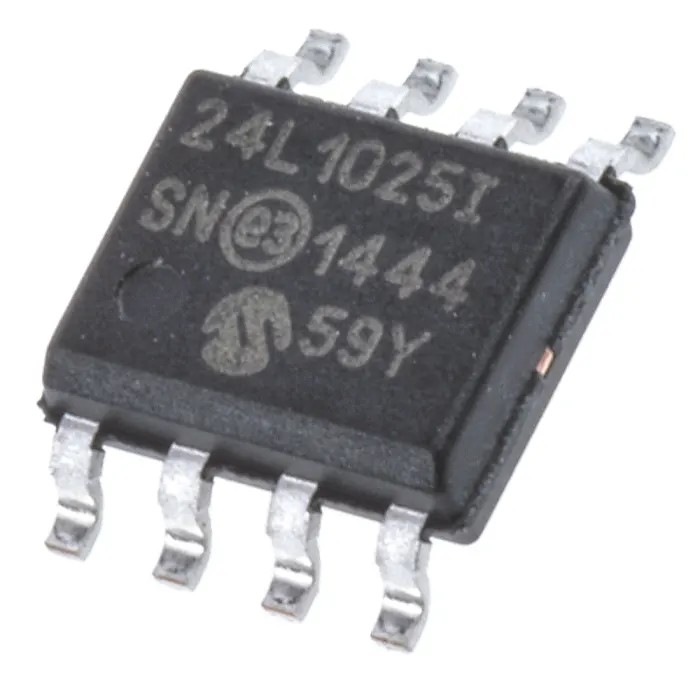

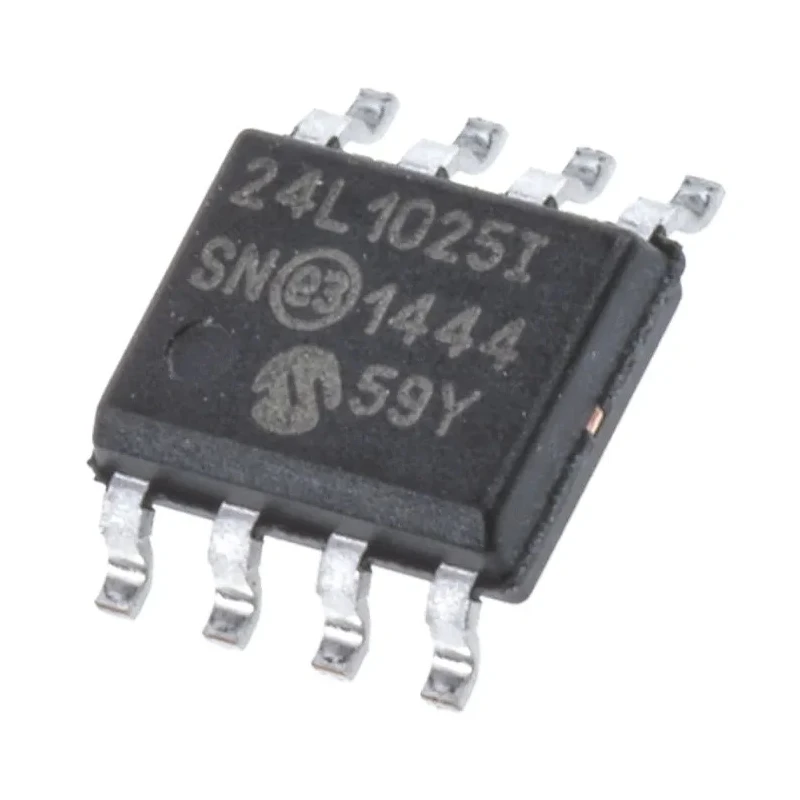

Microchip 1 MB Serial EEPROM, 900 ns 8-Pin SOIC Serial-2 Wire 24LC1025-I/SN

Microchip 24LC1025-I/SN is a high-capacity 1 MB Serial EEPROM featuring a fast 900 ns maximum random access time, packaged in an 8-pin SOIC for surface mounting. This serial EEPROM utilizes a Serial-2 Wire interface compatible with I²C™ standards, facilitating easy integration into various electronic circuits for data storage applications.

With a memory organization of 128K x 8 bits, it supports efficient and reliable data handling, ideal for embedded systems, automotive, and industrial equipment requiring non-volatile memory.

Designed for operation in harsh environments, it maintains functionality over a wide temperature range from -40°C to 85°C, meeting automotive AEC-Q100 standards.

The device operates at supply voltages from 2.5 V up to 5.5 V and supports a maximum clock frequency of 400 kHz. Its low supply current of 450 μA reduces power consumption, making it suitable for battery-powered systems.

Data retention is rated at 200 years, ensuring long-term data integrity. The compact footprint with a length of 4.9 mm and width of 6 mm allows space-efficient PCB layouts. Memory size of 1 MB with 128K x 8 bit organization.

Serial-2 Wire interface for easy communication. 8-pin SOIC surface mount package design. Maximum clock frequency of 400 kHz. Operating voltage between 2.5 V and 5.5 V. Operating temperature range from -40°C to 85°C. Compliance with automotive AEC-Q100 standard.

Low supply current of approximately 450 μA. Data retention of up to 200 years. Compact size with 4.9 mm length and 6 mm width.

This Microchip serial EEPROM is well suited for electronics manufacturing, industrial controls, automotive systems, and any application requiring robust, high-density non-volatile memory components.
