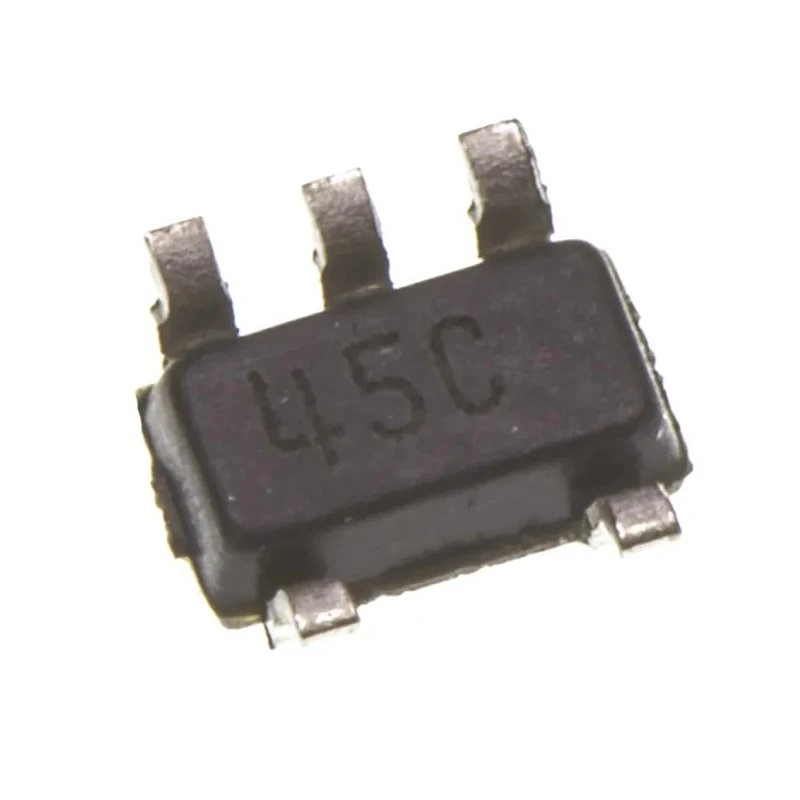

Texas Instruments LDO Linear Voltage Regulator 150mA 16V SOT-23 Package Positive Polarity LP2985AIM5-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 16V SOT-23 5-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 1.02mm |
| Length | 2.92mm |
| Model | LP2985AIM5-3.3/NOPB |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | LP2985-N |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Polarity | Positive |
| Maximum Input Voltage | 16V |
| Quiescent Current | 1μA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 5 |
Key Features
- Operates with a maximum input voltage of 16V.
- Provides a maximum output current of 150mA.
- Low quiescent current consumption of 1μA.
- Compact SOT-23 5-pin surface mount package for space-efficient designs.
- Wide operating temperature range up to 125°C.
- Positive polarity design for standard voltage regulation applications.
- Suitable for portable and battery-powered device applications.
- Part of the LP2985-N series with excellent line regulation and PSRR.
Product Description
Texas Instruments LP2985AIM5-3.3/NOPB is a high-performance LDO (Low Dropout) linear voltage regulator designed for applications requiring low quiescent current and low noise operation. It supports a continuous output current of up to 150mA while maintaining a low input-output voltage differential, enabling efficient power management in compact electronic devices.
This voltage regulator is housed in a space-saving SOT-23 5-pin surface mount package, making it suitable for modern circuits with tight layout constraints. With a maximum input voltage rating of 16V and operational capability up to 125°C, it ensures reliable performance across various industrial and commercial environments.
The LP2985-N series is known for its excellent line voltage regulation and high power supply rejection ratio (PSRR), making this device ideal for sensitive analog and digital systems that demand stable voltage supply with minimal interference.
Key applications include portable and battery-powered devices, communication equipment, embedded systems, and instrumentation circuits. Its positive polarity design allows straightforward integration in typical power rails where positive voltage regulation is required.
The device operates within an input voltage range from 2.5V to 16V. It draws a very low quiescent current of 1μA, reducing overall power consumption. Compact package dimensions suitable for minimal PCB footprint. Offers stable and noise-free output voltage, supporting reliable performance in sensitive electronic applications.
Supports a maximum operating temperature of 125°C to withstand demanding operating conditions.
The device does not conform to any automotive standard and does not bear specific regulatory approvals, making it suited primarily for general purpose industrial and commercial electronics.
Explore the full range of Voltage Regulators from Texas Instruments for effective and efficient power management solutions available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LP2985AIM5-3.3/NOPB is 16V.
It provides a maximum output current of 150mA.
The quiescent current consumption is very low at 1μA.
This voltage regulator operates within a temperature range up to 125°C.
It is housed in a compact SOT-23 5-pin surface mount package.
The minimum input voltage is 2.5V.
This voltage regulator has a positive polarity design.
The dimensions are 2.92mm in length, 1.6mm in width, and 1.02mm in height.
It is suitable for portable and battery-powered devices, communication equipment, embedded systems, and instrumentation circuits.
This model is part of the LP2985-N series.
The low quiescent current of 1μA helps reduce overall power consumption, making it efficient for battery-powered applications.
It supports surface mounting, suitable for modern circuit designs.
