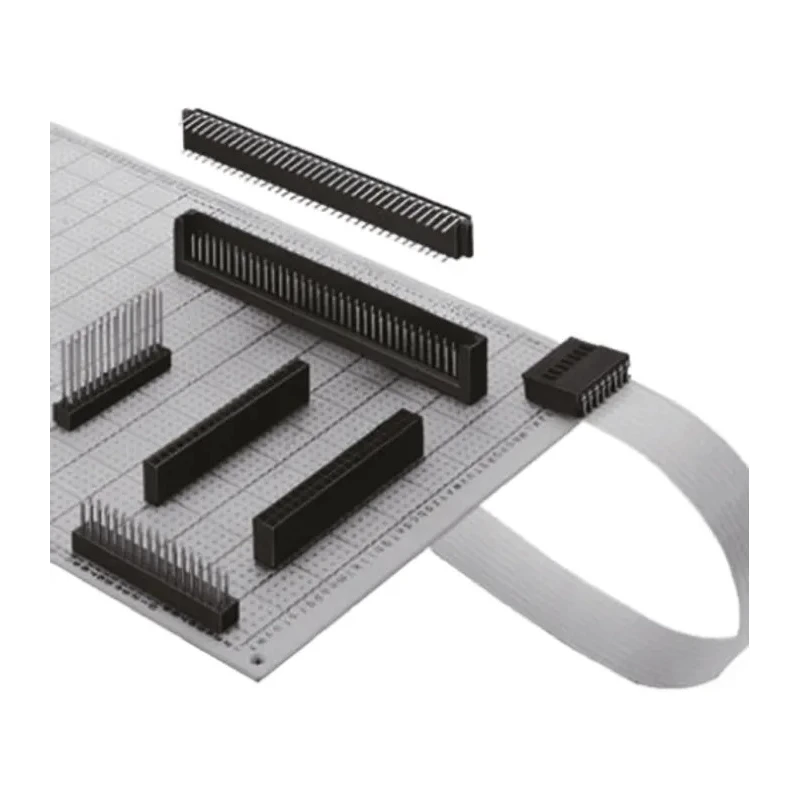

Hirose HIF3H Series Straight Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded HIF3H
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | HIF3H |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | HIF3H |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Featuring a 2.54 mm pitch and 10 contact pins for reliable board-to-board connections.
- Constructed with brass contact material and gold plating to ensure excellent conductivity and corrosion resistance.
- Shrouded design provides extra protection and alignment during assembly.
- Through-hole mount type offers sturdiness for PCB applications.
- Rated for 3A current and 300V voltage for versatile electrical uses.
- Operates in a temperature range of -55°C to 85°C, suitable for varied environments.
- Male contact gender with solder termination type for secure soldered joints.
Product Description
Hirose HIF3H series straight through hole PCB header featuring 10 brass contacts arranged in 2 rows at a 2.54 mm pitch, designed for board-to-board connector applications. This shrouded connector ensures precise alignment and protection for electronic assembly, offering high reliability in industrial and electronic manufacturing environments.
The 3A current rating and 300V voltage capacity make it suitable for medium power electronic equipment. Gold-plated contacts provide superior conductivity and resistance to corrosion, while the black UL94V-0 PBT housing material enhances durability and flame retardance.
Designed for through-hole mounting, the header is ideal for secure PCB connections in computers, termination devices, automation, and office electronic machinery. The operating temperature range from -55°C to 85°C ensures stable performance in diverse environmental conditions.
The male gender contacts with solder termination type allow for strong and lasting solder joints on printed circuit boards. 10 contacts organized in 2 rows with 2.54 mm pitch. Shrouded, straight orientation for precise connector mating and protection.
Constructed with brass contacts and gold plating for durability and conductivity. Through-hole mount suitable for robust PCB assembly. Current rating of 3A and voltage rating of 300V. Operating temperatures from -55°C to 85°C for industrial and commercial uses.
Male contact gender with solder termination for reliable electrical connections.
Hirose connectors are well-regarded in electronics manufacturing for their reliable performance across a wide range of industrial, commercial, and laboratory equipment. This model is made in Japan, ensuring high manufacturing standards and component quality.
Explore the broad selection of Hirose PCB Headers and connectors in the EnvMart catalogue for your next project or production requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 10 contacts arranged in 2 rows with a 2.54 mm pitch, designed for board-to-board connections.
It is rated for a maximum current of 3A and a maximum voltage of 300V, making it suitable for medium power electronic applications.
The HIF3H series utilizes a solder termination type, allowing for secure soldered joints on printed circuit boards.
It operates within a temperature range of -55°C to 85°C, suitable for diverse environmental conditions.
The contacts are constructed from brass and feature gold plating, which provides excellent conductivity and corrosion resistance.
This model is designed for through-hole mounting, which provides sturdiness for PCB applications.
The contacts are male gender, designed for reliable electrical connections in various applications.
The shrouded design provides extra protection and alignment during assembly, ensuring precise mating of connectors.
This model is made in Japan, ensuring adherence to high manufacturing standards.
It is ideal for use in computers, termination devices, automation, and office electronic machinery.
The header features a pitch of 2.54 mm and has 10 contacts organized in 2 rows, but specific dimensions are not provided in the data.
It is designed as a board-to-board connector system, suitable for various electronic assembly applications.
