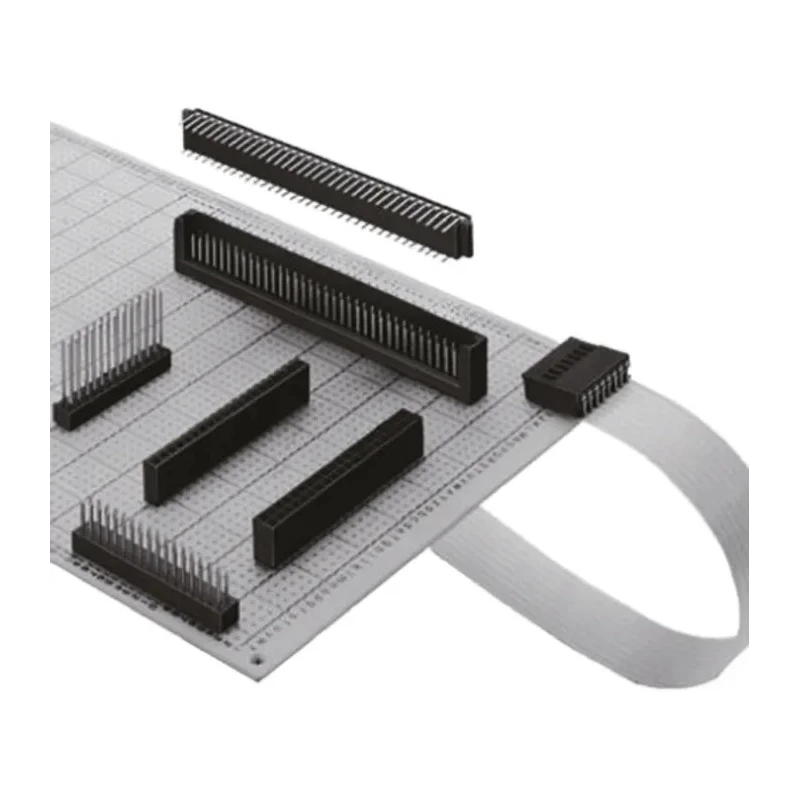

Hirose Series Straight Through Hole PCB Socket, 26-Contact, 2 Row, 2.54 mm Pitch, 12A, 300V, Solder Termination HIF3H

Hirose HIF3H Series Straight Through Hole PCB Socket HIF3H offers a professional-grade board-to-board connector solution featuring 26 contacts arranged in 2 rows with a 2.54 mm pitch. This connector is constructed with polybutylene terephthalate housing which complies with UL94V-0 flammability standards, ensuring excellent safety and durability in electronic assemblies.

The socket utilizes bronze contacts plated with gold to provide low contact resistance and ensure long-term reliability even under frequent mating and harsh environmental conditions. Its female contact gender and straight orientation facilitate seamless integration into various PCB designs.

Designed for through-hole mounting and solder termination, this connector guarantees robust mechanical fixation and electrical connection suited for industrial, electronic, computing, office automation, and termination equipment applications.

It supports a current rating of 12A and a voltage rating of 300V, with an operating temperature range from -55°C to +85°C, making it well suited for demanding operating conditions.

The HIF3H series includes polarization guides to avoid mis-insertion risks, enhancing assembly reliability. Manufacturing precision and high-quality materials underlie its consistent performance.

26-contact configuration arranged in 2 rows for reliable connections. 2.54 mm pitch spacing ensures compatibility with standard PCB layouts. Rated for 12 amperes current capacity and 300 volts operating voltage. Constructed with polybutylene terephthalate housing material offering electrical insulation and durability.

Features gold plated bronze contacts providing excellent conductivity and corrosion resistance. Straight orientation with through-hole mount for secure attachment to printed circuit boards. Operating temperature range from -55°C to 85°C suitable for a variety of environments.

Connector system designed for board-to-board interconnections in industrial and electronic equipment. Female contact gender type. Manufactured in Japan ensuring quality and precision engineering.

This Hirose HIF3H PCB Socket connector is widely used in electronics manufacturing, industrial machinery, and office automation devices, offering dependable electrical performance and ease of installation. EnvMart provides this product for industrial and laboratory applications requiring robust PCB connections supporting standard voltage and current ratings.
