Texas Instruments 5-Channel Charge Pump Regulator, 250mA Output Current, -5.2V Output Voltage, 2.3MHz Switching LM27761DSGT

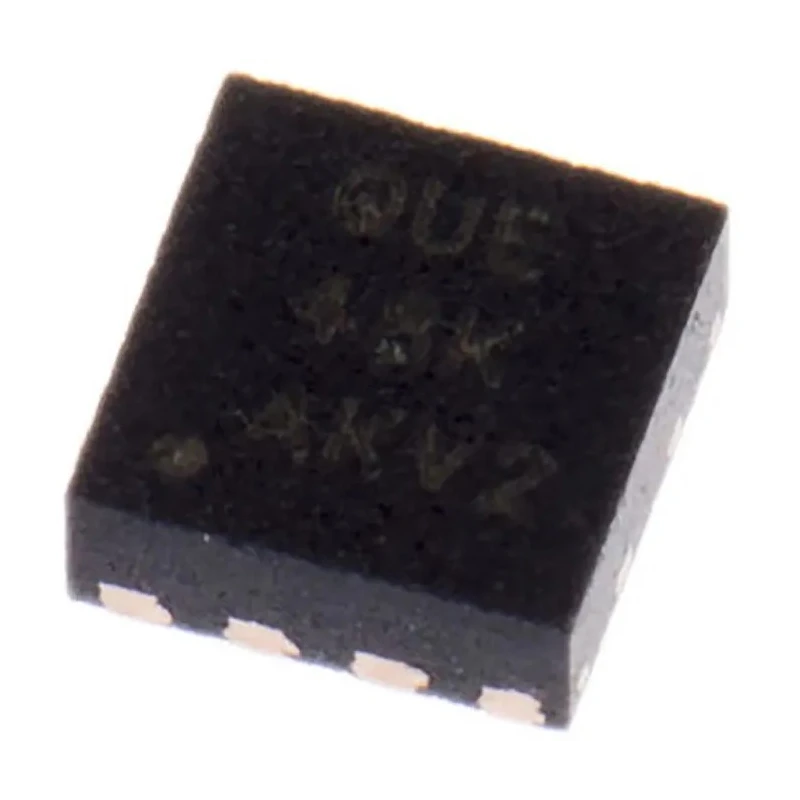

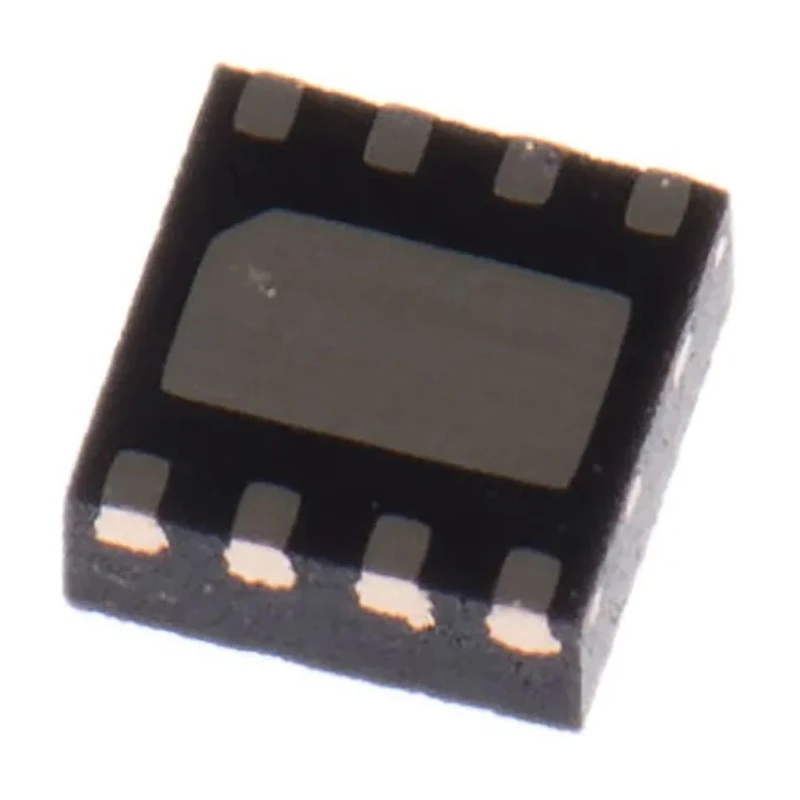

Texas Instruments LM27761DSGT is a 5-channel charge pump regulator delivering an output current of 250 mA with an output voltage of -5.2V. This switching regulator operates at a frequency of 2.3 MHz and is housed in a compact WSON 8-pin surface mount package measuring 2.1mm by 2.1mm with a height of 750 µm.

The device utilizes an inverting charge pump topology to efficiently convert input voltages between 2.7V and 5.5V, producing a regulated negative output voltage. Its low quiescent current of 7 µA makes it highly suitable for low power and battery-powered applications. The five output channels and adjustable output voltage options provide design flexibility in power management circuits.

Designed for durability, this voltage regulator operates reliably within a temperature range of -40°C to 85°C, making it appropriate for industrial, communication, and consumer electronic devices requiring stable negative voltage supplies. The device does not conform to automotive standards and is manufactured in the Philippines.

Inverting charge pump converter requires no inductor, simplifying design. High switching frequency reduces external component size. Low quiescent current conserves power during idle periods. Compact WSON package enables space-saving PCB layouts.

Wide temperature range enhances suitability for industrial applications. Adjustable output voltage supports diverse voltage requirements. Five output channels increase versatility in multi-rail systems. Surface mount design optimizes manufacturing efficiency.

This product is ideal for power management in electronic systems including industrial tools, communication equipment, and consumer electronics. Explore more Voltage Regulators and power management ICs on EnvMart for reliable industrial-grade components.
