Murata Power Solutions 1W SIP Single Output Unregulated Isolated DC-DC Converter Through Hole, 12V DC Output NME2412SC

Free Delivery in India | Lowest Global Shipping Charges

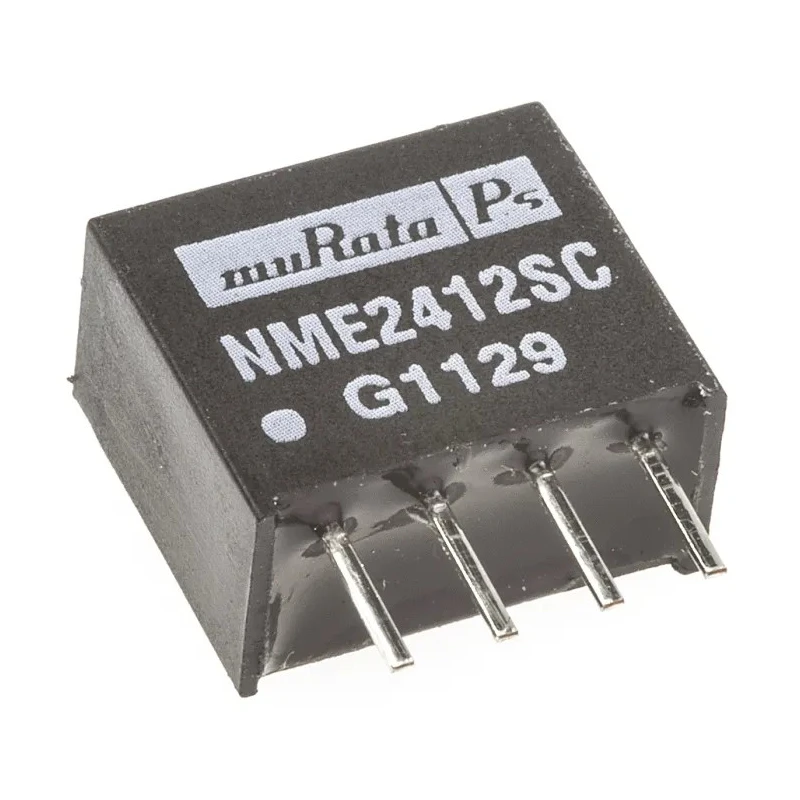

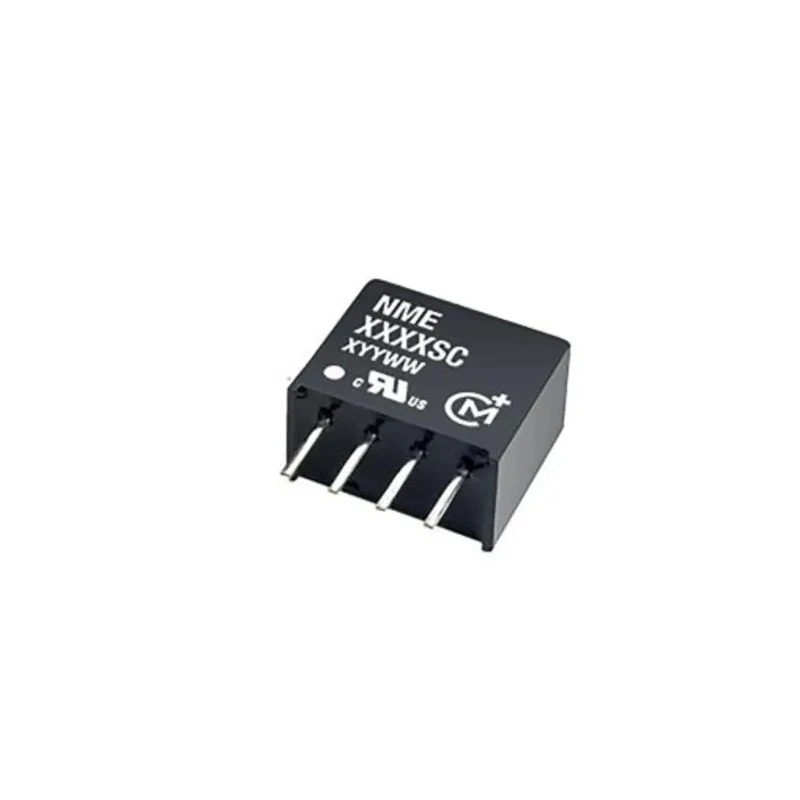

Murata Power Solutions 1W SIP Single Output Unregulated Isolated DC-DC Converter Through Hole, 12V DC Output NME2412SC

Name: Murata Power Solutions 1W SIP Single Output Unregulated Isolated DC-DC Converter Through Hole, 12V DC Output NME2412SC
Brand: Murata Power Solutions
SKU: 200826
Price: 17.29 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters Murata Power Solutions NME DC/DC Converter, 12V dc
Brand	Murata Power Solutions
Efficiency	80%
Length	11.48mm
Model	NME2412SC
Depth	10mm
Gross Weight	1.3g
Width	10mm
Mount Type	Through Hole
Series	NME
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	163000h
Number of outputs	1
Ripple and Noise	150mV Pk-Pk
Maximum Output Power	1W
Maximum Input Voltage	26.4V dc
Standards/Approvals	RoHS
Minimum Input Voltage	21.6V
Number of Pins	4
Output Voltage 1	12V dc
Output Current 1	83mA
Output Voltage Adjustment Range	21.6/26.4 V
Isolation Voltage	1kV dc

Key Features

Input voltage range is from 21.6V to 26.4V DC.
Output current is rated at 83 mA with 1 watt maximum power output.
High efficiency of 80% ensures minimal power loss.
1 kV DC isolation between input and output improves safety and performance.
SIP4 plastic package with 4 pins for through-hole mounting.
Operating temperature range from -40°C to 85°C for versatile industrial applications.
Compact dimensions with length 11.48 mm, width 10 mm, and depth 10 mm.
Compatible with RoHS standards ensuring compliance with environmental regulations.

Product Description

Murata Power Solutions NME2412SC is a high efficiency 1 watt SIP single output unregulated isolated DC-DC converter designed for industrial and electronic applications requiring stable power supply conversion.

This module supports a DC input voltage range from 21.6 to 26.4 V and outputs a regulated 12 V DC at a maximum current of 83 mA. It features a through-hole mounting type and a compact SIP4 package design for easy installation on PCBs.

The converter offers 1 kV DC isolation voltage between input and output, which safeguards sensitive electronics from voltage spikes and interference. Its efficiency rating of approximately 80% ensures effective power conversion with minimal energy loss.

Designed to operate reliably within a wide temperature range from -40°C to 85°C, this DC-DC converter is suitable for use in industrial control, communication equipment, instrumentation, and embedded systems. The package is UL 94V-0 compliant, ensuring flame retardancy and safety.

The NME2412SC complies with the RoHS directive, making it environmentally safe for all uses. Its MTBF value of 163,000 hours highlights superior durability and robust performance. Physical dimensions of this converter are compact, with a length of 11.48 mm, width of 10 mm, and depth of 10 mm, fitting well in space-constrained electronic assemblies.

Input voltage range from 21.6 to 26.4 V DC. Unregulated 12 V DC output at 83 mA maximum current. Isolation voltage of 1 kV between input and output. High efficiency of 80% to reduce energy loss. Through-hole SIP4 package for easy PCB mounting.

Operates between -40°C and 85°C ambient temperature. Compact size 11.48 mm x 10 mm x 10 mm. Compliant with RoHS environmental standards. MTBF of 163,000 hours for extended reliability. Typical applications include industrial instrumentation, measurement equipment, communications devices, and embedded control systems requiring DC power conversion and isolation.

Explore our range of DC/DC Converters for robust power supply solutions and related products in the Electronics & Electricals category at EnvMart.
