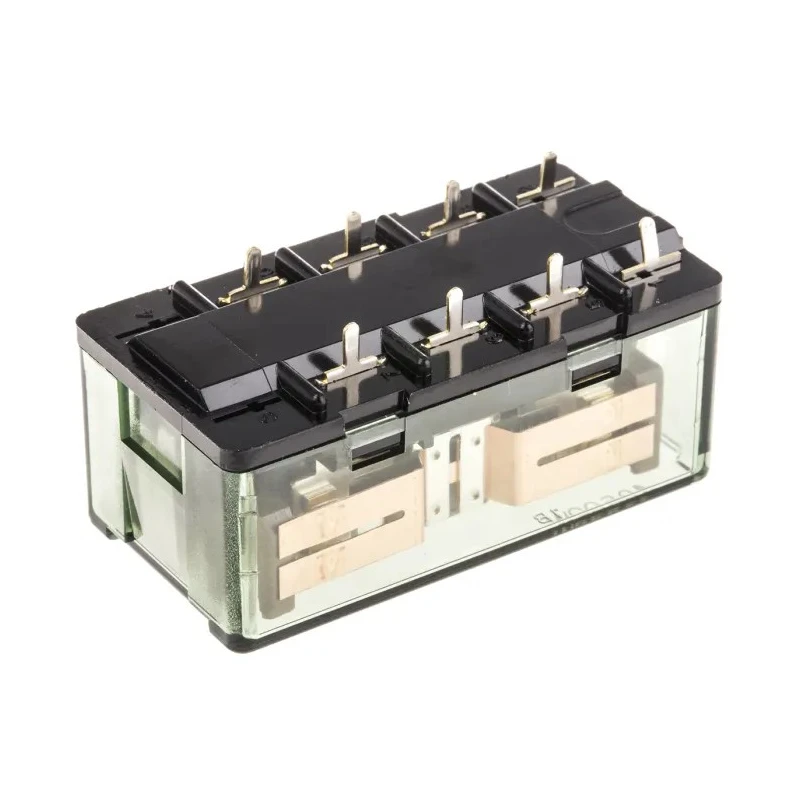

Panasonic PCB Non-Latching Relay 24V DC Coil 15A Switching Current DPDT SP2-P-24V

Panasonic SP2-P-24V is a high-quality PCB non-latching power relay featuring a 24V DC coil and a 15A switching current with DPDT contact configuration. This relay belongs to the SP series known for high sensitivity, long operational life, and resistance to vibration and shock, making it ideal for demanding industrial, automation, and electronic applications.

The relay is designed to be mounted on printed circuit boards (PCBs) using solder terminals, providing secure electrical connections. The contacts are made of a silver alloy, ensuring a low contact resistance of 30 mΩ which supports efficient electric current transfer.

Its compact dimensions (51mm x 25.6mm x 22mm) allow integration into space-constrained control panels or devices. The coil has a resistance of 1.9 kΩ and a nominal operating power of 300 mW, optimizing energy efficiency.

Operating temperature ranges from -50°C to a maximum of 60°C, enabling reliable performance in harsh environmental conditions. The relay’s switching capabilities extend up to 15A current, 250V AC voltage, and 48V DC voltage, making it suitable for switching moderate loads.

This relay complies with RoHS directives, assuring environmental safety and quality. Manufactured in Japan, it reflects Panasonic’s standards of excellence in electrical component manufacturing.

Suitable for applications in industrial automation, electronic control systems, power management, and signal conditioning, this relay ensures dependable switching and durability. The product offers excellent performance for control circuits, safety circuits, and other electronic devices requiring reliable DPDT relay functions.

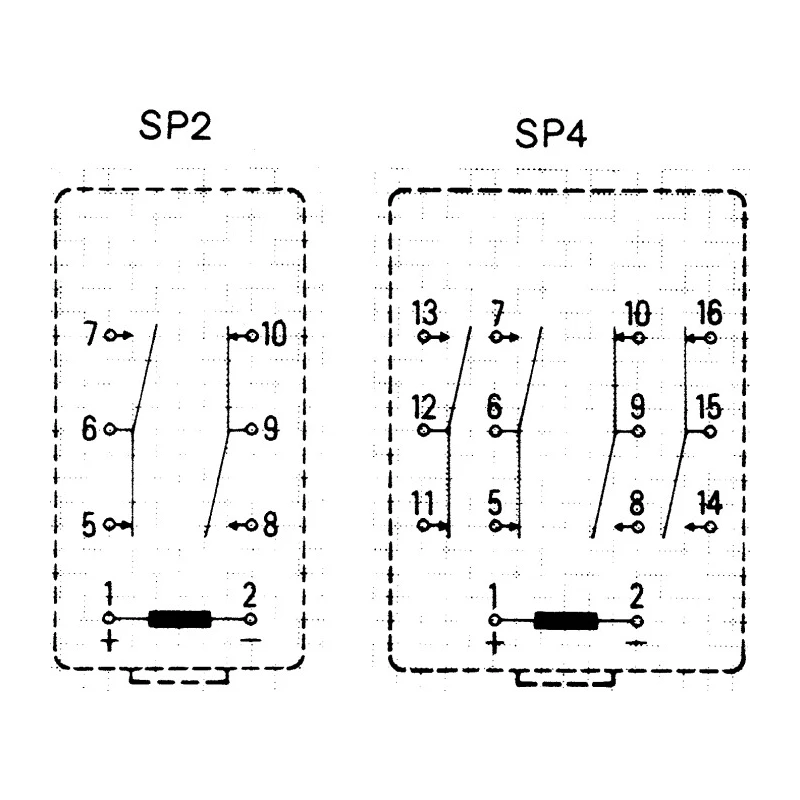

This relay features a 24V DC coil voltage suitable for PCB mounting. It has a double-pole double-throw contact configuration for versatile switching applications. The relay supports switching currents up to 15A with AC voltage up to 250V and DC voltage up to 48V.

Constructed with silver alloy contacts offering low contact resistance of 30 mΩ for efficient performance. Compact dimensions of 51mm length, 25.6mm width, and 22mm height optimize board space utilization. Coil resistance measures 1.9 kΩ with nominal coil power consumption of 300 mW.

Designed for robust operation with high vibration and shock resistance, operating over -50°C to 60°C temperature range. Complies with RoHS standards and is made in Japan.
