WAGO 2060 Series PCB Terminal Block Female Push-in, 3-Pole, 9A, 320V, 3-Way 2060-453/998-404

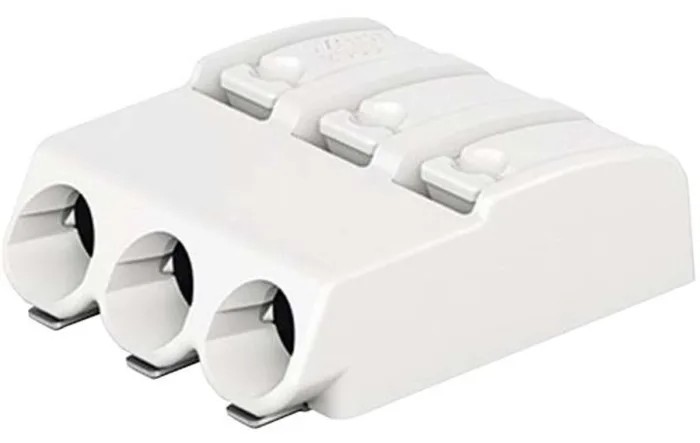

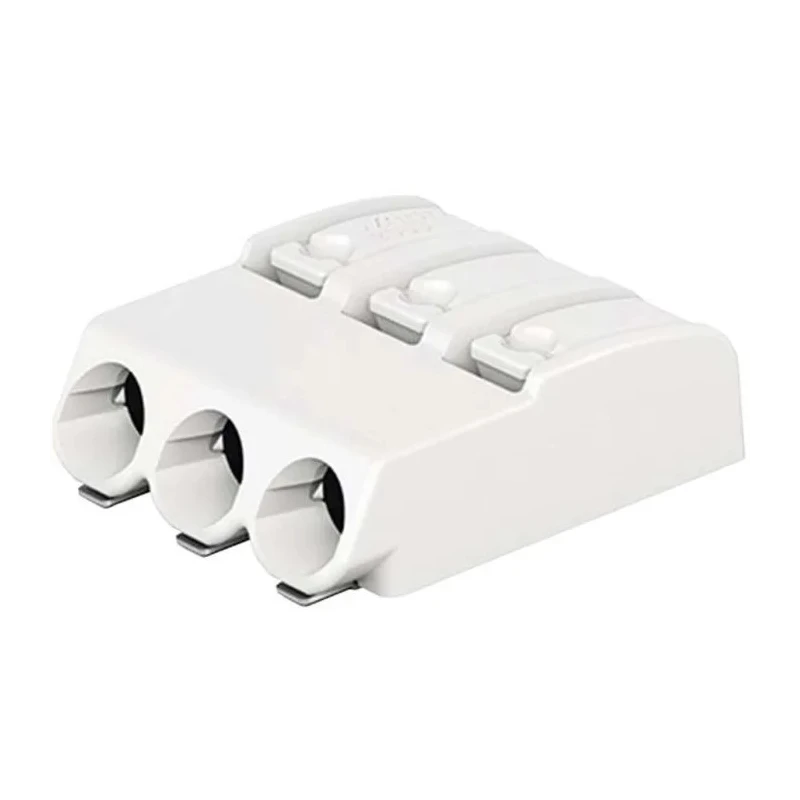

WAGO 2060-453/998-404 is a 3-pole female PCB Terminal Block with push-in connection technology, rated for currents up to 9A and voltages up to 320V. This series 2060 connector features a compact flat design with a height of 4.5 mm and 4 mm pin spacing suitable for dense PCB layouts in electronic devices.

The terminal block employs a sprung Cage Clamp® mechanism that securely holds both single strand and multi-strand wires fitted with ferrules, providing reliable and vibration-resistant connections. Push buttons allow effortless conductor insertion and removal, facilitating efficient assembly and maintenance in industrial and commercial electronics applications.

Suitable for conductor cross-sections ranging from 0.2 to 0.75 mm² (24 to 18 AWG), this connector supports versatile wiring needs. The contact material is copper alloy with tin plating to ensure optimal conductivity and protection against corrosion, enhancing durability.

Certified to meet UL 1059, IEC/EN 60664-1, and UL 1977 standards, it guarantees compliance with international safety and quality requirements. It also features a 330 mm diameter, white color, and PCB mount type. This connector is ideal for use in electronics manufacturing, lighting connectors, power connectors, and various industrial control systems.

The blocks can be arranged side-by-side to create multi-way connectors without losing any poles, making them adaptable to more complex wiring needs. This product is manufactured in Switzerland, ensuring high manufacturing quality and consistency.

Features a flat, low profile design suitable for manual and automated wiring systems. Equipped with a sprung Cage Clamp® mechanism securing solid and multi-strand conductors. Push-in termination with push buttons ensures easy wire connection and removal.

Accepts conductors from 24 AWG to 18 AWG (0.2 to 0.75 mm²). Complies with UL 1059, IEC/EN 60664-1, and UL 1977 standards. Contacts are copper alloy plated with tin for durability and conductivity. Blocks can be placed side-by-side to form multi-way connectors.

These terminal blocks are extensively used in industrial automation, HVAC systems, electronics, manufacturing, and water treatment applications. For advanced connector solutions, explore the Electronics & Electricals category on EnvMart.
