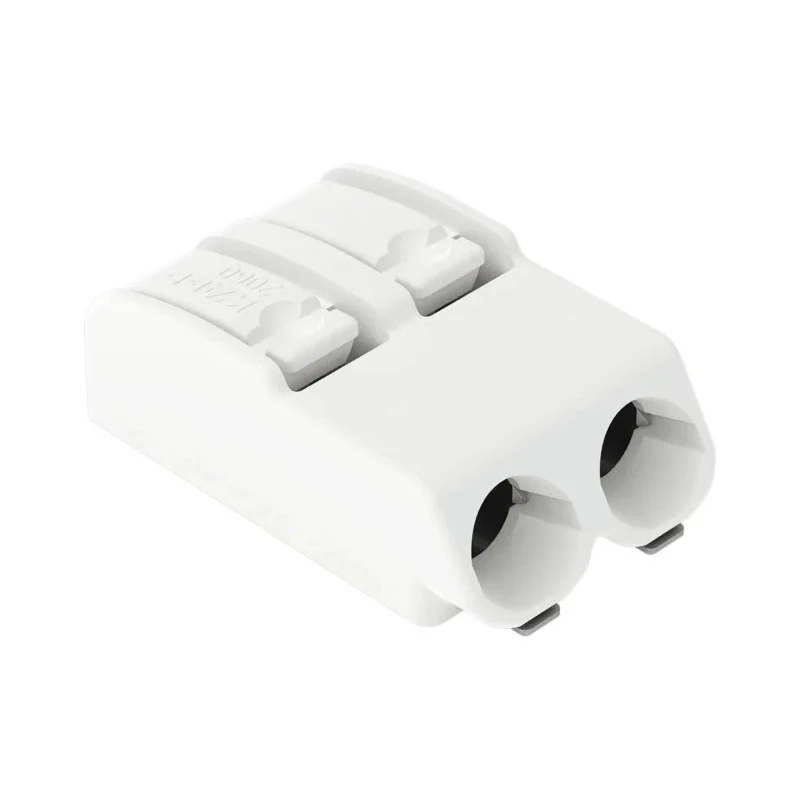

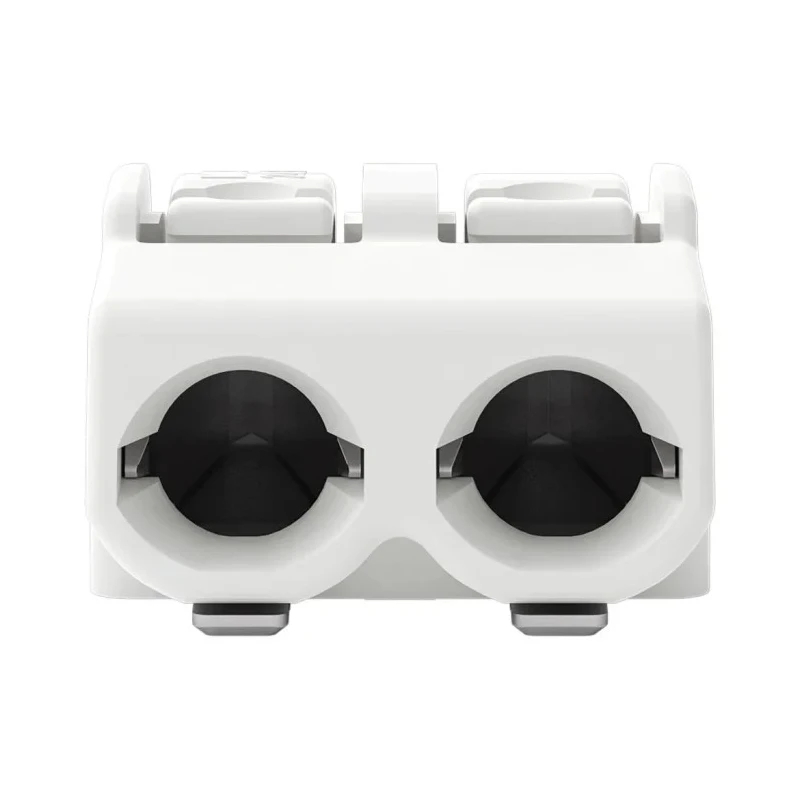

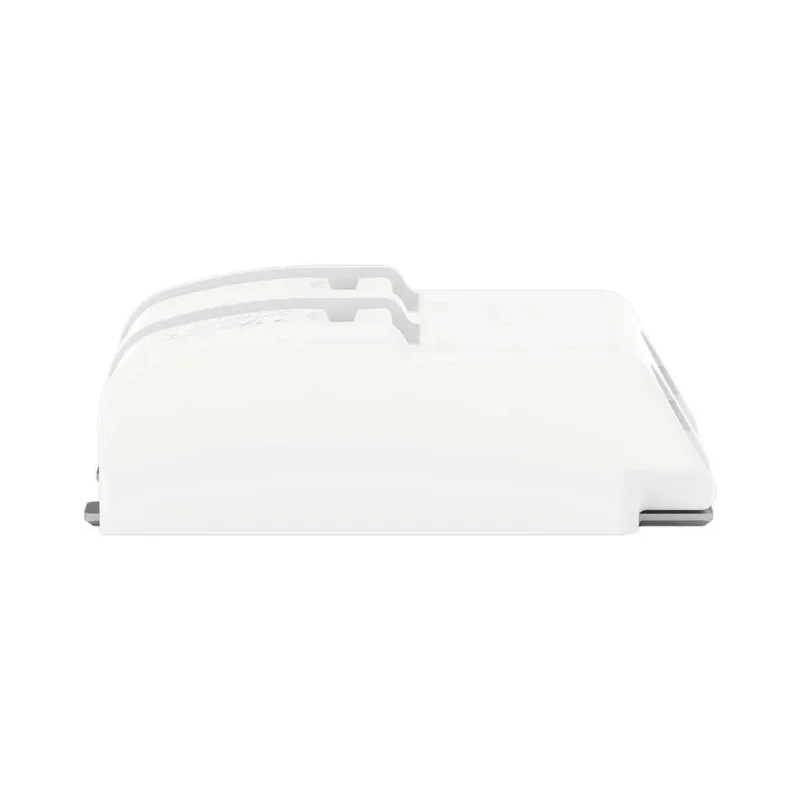

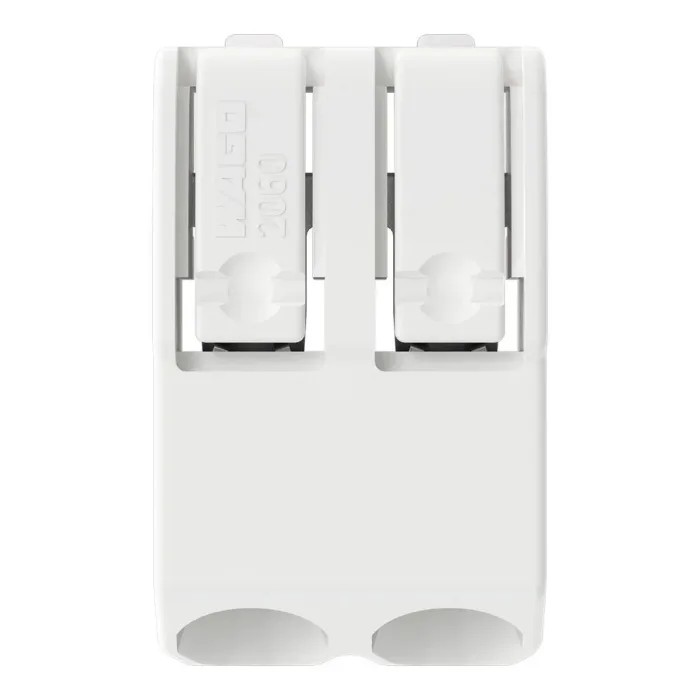

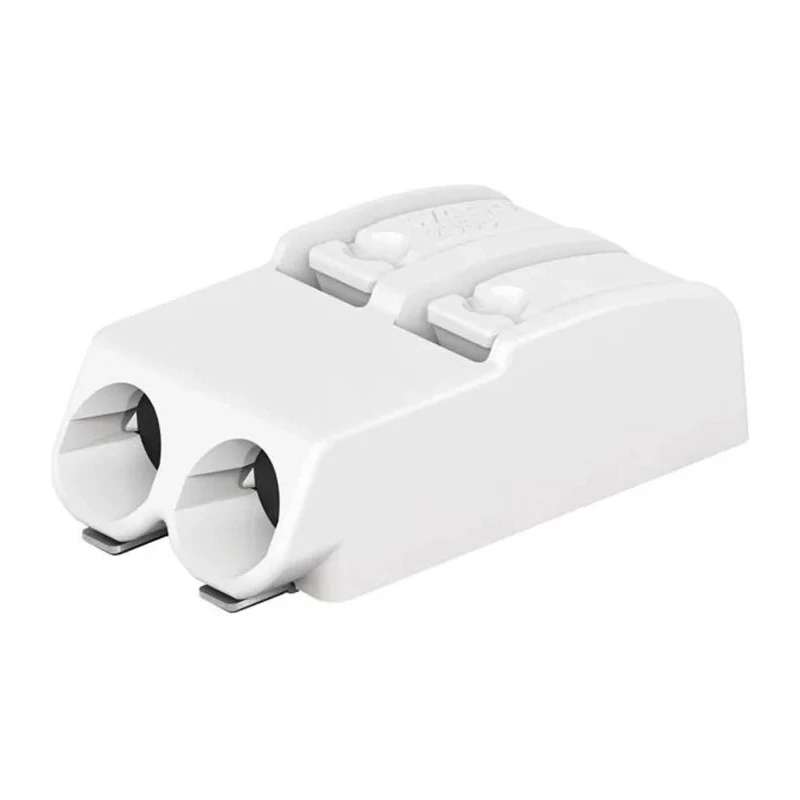

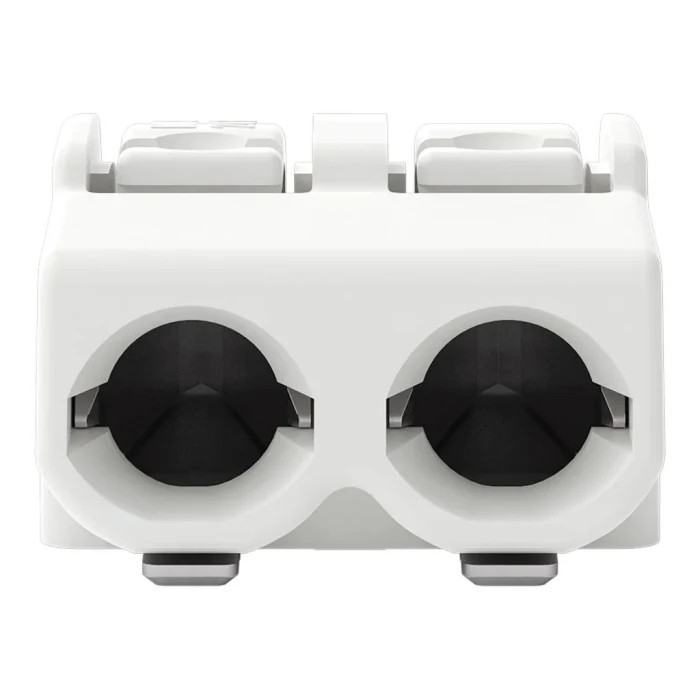

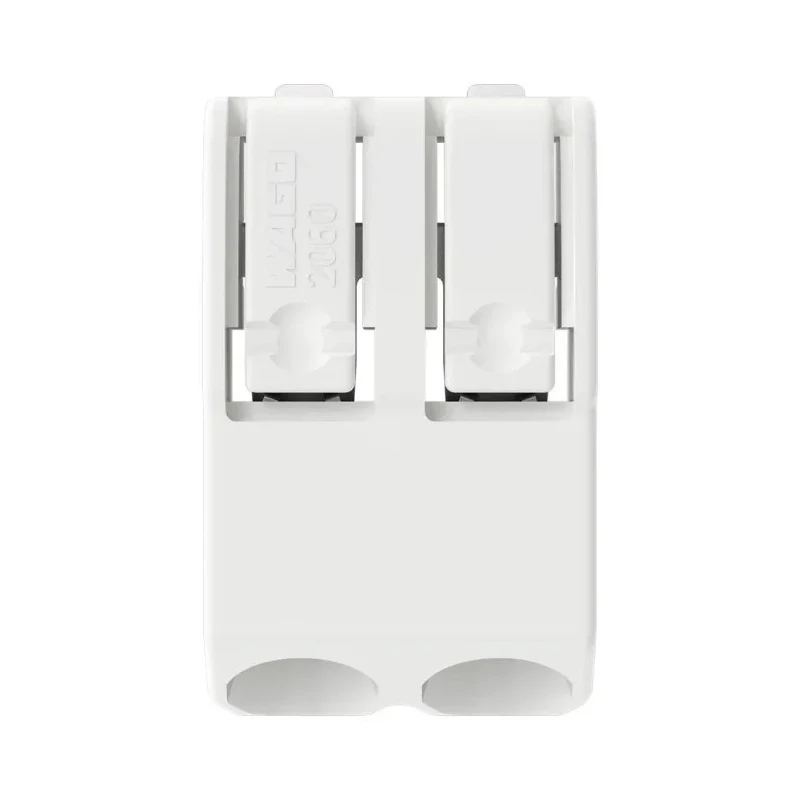

WAGO 2060 Series PCB Terminal Block Female Push-in, 2-Pole, 9A, 320V 2060-452/998-404

WAGO 2060-452/998-404 is a female PCB terminal block connector from the 2060 Series, designed for reliable push-in wiring in electronics assembly. It supports a voltage rating of 320V and a current rating of 9A, making it suitable for compact and precise PCB applications.

The connector features copper alloy contacts with tin plating, providing excellent conductivity and corrosion resistance. Its compact size of 4.5 mm (H) x 7.9 mm (W) x 13.1 mm (D) helps maximize available PCB space. The push-in termination system enables quick and tool-free wiring for solid conductors between 24 and 18 AWG, while integrated push buttons facilitate conductor insertion and removal for all wire types.

This terminal block is rated for an impulse voltage of 2.5 kV, ensuring robust protection against transient power surges, and complies with relevant UL and IEC/EN standards, including UL 1977, UL 1059, and IEC/EN 60664-1.

Ideal for high-reliability industrial and commercial environments such as medical centers, automated manufacturing, laboratory testing, and textile production, this PCB Terminal Block enhances operational safety and efficiency.

Delivered in tape and reel packaging, the connector supports automated soldering and placement processes for streamlined electronic manufacturing. Compact design to optimize PCB space utilization. Copper alloy contacts with tin plating for durability and conductivity.

Tool-free push-in termination for quick wiring. Impulse voltage rating of 2.5 kV ensures spike protection. Acceptance of 24 to 18 AWG solid and stranded conductors. Compliance with UL and IEC/EN safety standards. Suitable for medical, industrial, laboratory, and textile applications.

Supports automated PCB assembly via tape and reel packaging. Explore the full range of WAGO connectors and terminal blocks at EnvMart for your electronic component needs.
