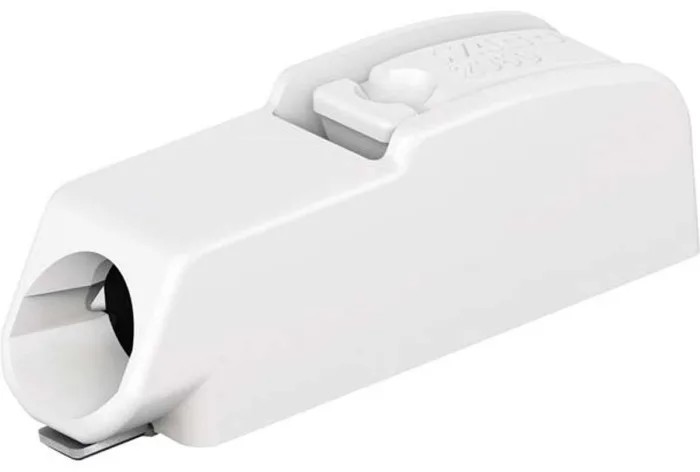

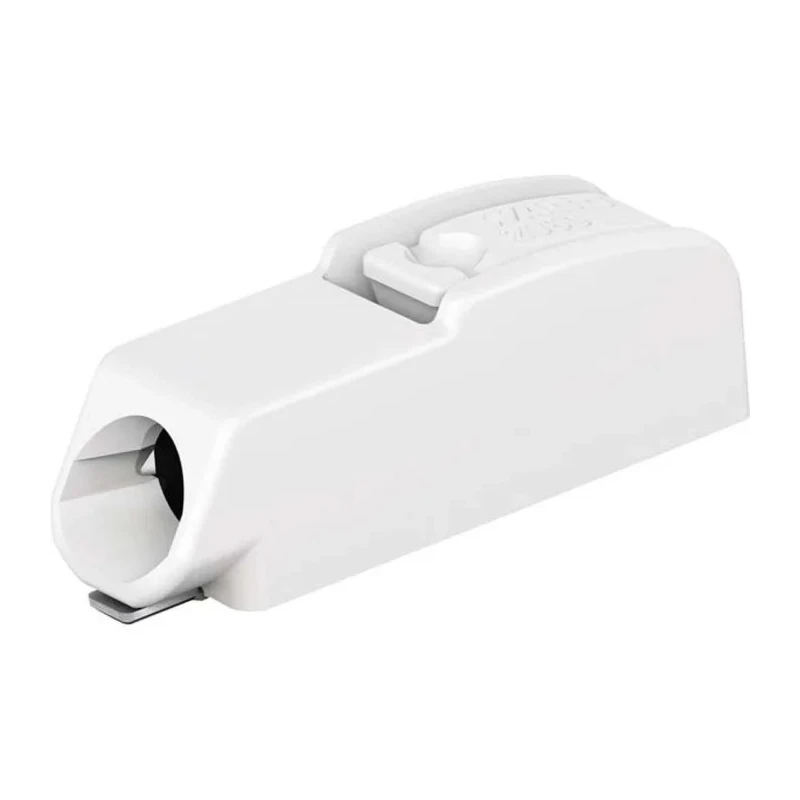

WAGO 2060 Series PCB Terminal Block Female Push-in, 1-Pole, 17.5A, 600V, 1-Way 2060-451/998-404

WAGO 2060-451/998-404 PCB Terminal Block Female Push-in from the 2060 series is a robust electronic component designed for PCB mounting. It supports electrical connections at 17.5A and up to 600V, making it suitable for power and signal distribution on printed circuit boards.

This 1-pole, 1-way terminal block features a white housing and female connector gender, ideal for use in diverse electronic assemblies requiring reliable, secure wiring connections. Its push-in termination with Cage Clamp® technology enables rapid and tool-free conductor insertion, enhancing wiring efficiency.

The terminal block accommodates conductor sizes from 24 AWG to 18 AWG, both solid and ferruled cables, providing versatility for manual and automated wiring systems. The flat, low-profile design supports dense PCB layouts and group arrangement without loss of poles.

Engineered for durability, the contacts are made of copper alloy with tin plating to ensure excellent conductivity and corrosion resistance. The product fully complies with UL 1977, UL 1059, and IEC/EN 60664-1 safety standards, certifying its suitability for global electronic applications.

Key product dimensions include a height of 4.5 mm and 4 mm pin spacing, critical for precise PCB design integration. The 330 mm diameter referenced relates to manufacturing or reel packaging details rather than the part dimension.

Originating from Switzerland, this terminal block exemplifies high-quality European electrical components. Ideal industries include electronics manufacturing, industrial automation, instrumentation, and electrical machinery assembly.

The female connector features a flat, low profile design ideal for manual and automated wiring. Push-in Cage Clamp® mechanism secures both single and multi-strand cables fitted with ferrules. Operates safely with a voltage rating of 600V and current rating of 17.5A.

Termination accepts conductor sizes 24 AWG to 18 AWG (0.2 to 0.75 mm²) with direct solid conductor push-in. Equipped with push buttons for easy connection and removal of conductors. Compliance with UL 1977, UL 1059, and IEC/EN 60664-1 standards ensures reliable safety and performance.

Contact materials include copper alloy with tin plating for enhanced conductivity and corrosion resistance. Compact height of 4.5 mm and pin spacing of 4 mm respect PCB layout constraints. Browse other high-quality electronic components and PCB Terminal Blocks at EnvMart for your industrial or laboratory applications.
