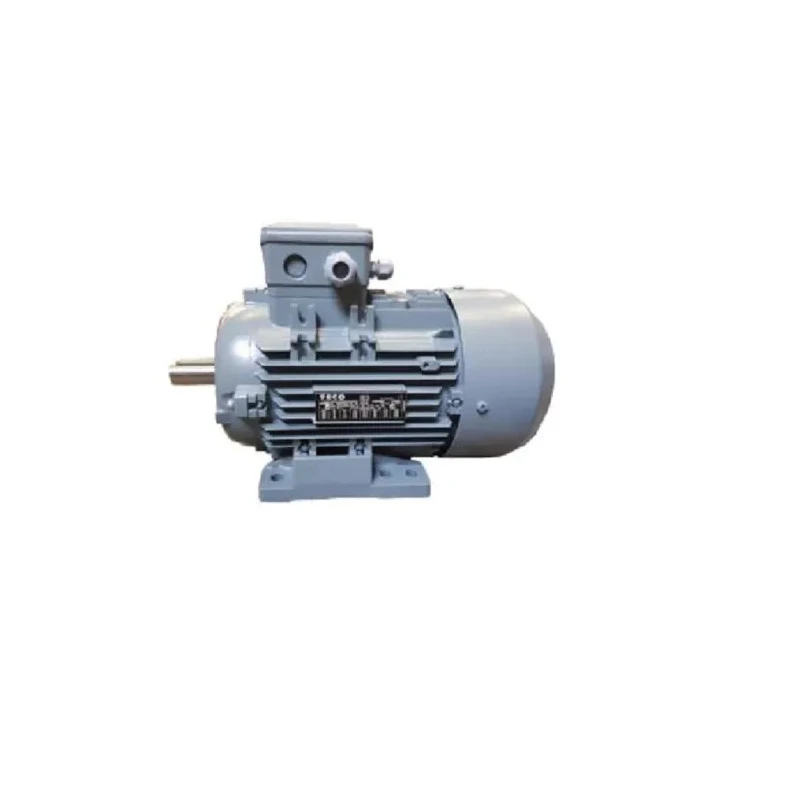

RS PRO 3 Phase Squirrel Cage Induction AC Motor, 15 kW, IE3 Efficiency, 2-Pole, 400V, Foot Mounting AAP160M2B 187-9896

RS PRO AAP160M2B 3 Phase Squirrel Cage Induction AC Motor delivers 15 kW power with IE3 energy-efficient operation and a 2-pole design running at 2945 rpm. Powered at 400V with a three-phase supply, the motor features a robust aluminium frame ensuring outstanding corrosion resistance and reduced weight, facilitating ease of handling and installation.

This foot-mounted squirrel cage induction motor complies with IEC 60034 standards and is RoHS certified, ensuring high quality and environmental safety. It includes advanced features such as deep groove bearings with C3 shielding by reputed manufacturers like SKF, FAG, NSK, or NTN, and oil seals fitted at both shaft ends to prevent ingress of contaminants, which significantly extends bearing life and reduces maintenance requirements.

The RS PRO motor also incorporates two earthing terminals for safe installation and an NDE shaft drilled and tapped to allow easy mounting of various accessories, catering to versatile industrial needs. Its inverter-rated windings further enable modern drive compatibility for efficient control.

Compact dimensions (length 553.5 mm, width 398 mm, depth 398 mm) and a shaft diameter of 42 mm with a length of 110 mm add to its adaptability in multiple industrial environments. The maximum output torque is 48.64 Nm, with a current rating of 26.9 A, making it suitable for demanding applications.

High energy efficiency reduces operating costs in continuous industrial use. Aluminium housing provides durability while maintaining light weight. Foot mounting simplifies installation in various machinery setups. Suitable for industrial applications including pumps, fans, blowers, gearboxes, machine tools, and conveyor systems.

RoHS compliance ensures environmentally friendly operation. Deep groove C3 shielded bearings enhance performance and longevity. Oil seals on both ends prevent contaminants and lubrication loss. Inverter-rated windings support variable speed drive applications.

Two earthing terminals for enhanced safety. NDE shaft is drilled and tapped for mounting accessories.

This motor is ideal for industrial, manufacturing, HVAC, and water treatment applications where reliable, efficient, and robust motor performance is critical. RS PRO products are well recognized for providing reliable industrial components suitable for rigorous conditions. Browse our catalog for more RS PRO AC Motors and compatible industrial automation products on EnvMart.
