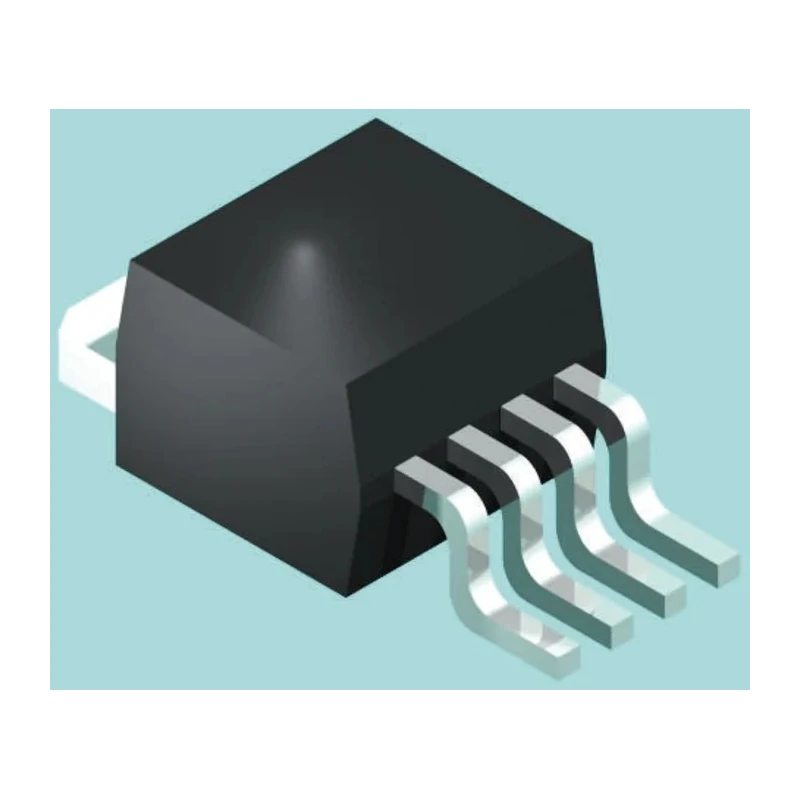

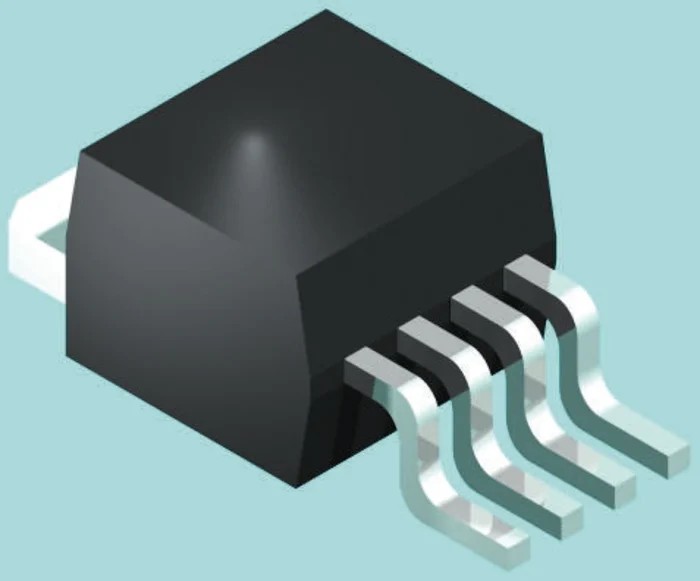

Texas Instruments Voltage Regulator 5.5V SOT-223 5-Pin TPS79601DCQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | TPS79601DCQ |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | TPS796xx |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 265μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 5 |
Key Features
- Operates with a maximum input voltage of 5.5 volts and a minimum input voltage of 2.7 volts.
- Features a 5-pin SOT-223 surface-mount package for efficient mounting and space-saving designs.
- Offers a low quiescent current of 265 microamps optimizing power efficiency.
- Designed with positive polarity and ensures up to 1 ampere current output.
- Measures 6.5 mm in length, 3.5 mm in width, and 1.6 mm in height, suitable for compact circuit boards.
- Provides maximum operating temperature tolerance up to 150 degrees Celsius for robust performance.
- Ideal for use in power management within various semiconductor circuits and electronic components.
- Manufactured under the TPS796xx series ensuring reliability and standardized quality.
Product Description
Texas Instruments TPS79601DCQ Voltage Regulator is a high-performance low dropout (LDO) linear voltage regulator designed to provide stable and efficient voltage regulation in electronic circuits. Packaged in a compact SOT-223 5-pin configuration, it supports surface mount technology, making it ideal for modern, space-constrained applications.
This regulator operates with an input voltage range from 2.7 volts to a maximum of 5.5 volts, maintaining a positive polarity output. Its low quiescent current of 265 microamps significantly reduces power consumption, enhancing device efficiency especially in battery-operated equipment.
The TPS79601DCQ supports a maximum operating temperature of 150 degrees Celsius, allowing it to perform reliably under demanding thermal conditions common in industrial and commercial electronic environments. Dimensions of the device are 6.5 mm length, 3.5 mm width, and 1.6 mm height, suitable for compact PCB designs requiring precise voltage regulation.
Designed within the TPS796xx series, this voltage regulator integrates advanced features such as excellent line regulation, low output noise, and high power supply rejection ratio (PSRR), making it suitable for sensitive power management applications in semiconductor and electronic component systems.
Applications include industrial instrumentation, communication devices, power management modules in consumer electronics, and embedded systems requiring efficient voltage control and minimal electromagnetic interference.
Operates with a maximum input voltage of 5.5 volts and a minimum input voltage of 2.7 volts. Compact 5-pin SOT-223 surface mount package for efficient board integration. Offers low quiescent current of 265 μA for power-efficient operation.
Positive polarity design suitable for standard electronic applications. Maximum operating temperature of 150 °C ensures reliable performance. Dimensions: 6.5 mm length × 3.5 mm width × 1.6 mm height. Part of the TPS796xx series by Texas Instruments with consistent quality and reliability.
Environmentally compliant and designed without specific automotive standards compliance. A versatile choice for power regulation in both commercial and industrial electronic applications.
Explore more electronic components and Voltage Regulators at EnvMart to find precise and reliable power management solutions tailored to your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS79601DCQ operates with a minimum input voltage of 2.7 volts and a maximum input voltage of 5.5 volts.
It features a low quiescent current of 265 microamps, optimizing power efficiency.
This voltage regulator measures 6.5 mm in length, 3.5 mm in width, and 1.6 mm in height, making it suitable for compact circuit boards.
The maximum operating temperature tolerance is up to 150 degrees Celsius.
It is packaged in a 5-pin SOT-223 surface-mount configuration, suitable for efficient mounting.
The TPS79601DCQ has a positive polarity output, making it suitable for standard electronic applications.
It is part of the TPS796xx series, ensuring reliability and standardized quality.
This model is ideal for power management in industrial instrumentation, communication devices, and embedded systems.
The TPS79601DCQ features a 5-pin configuration.
The product is designed without specific automotive standards compliance, making it suitable for general electronic applications.
The country of origin for this voltage regulator is India.
