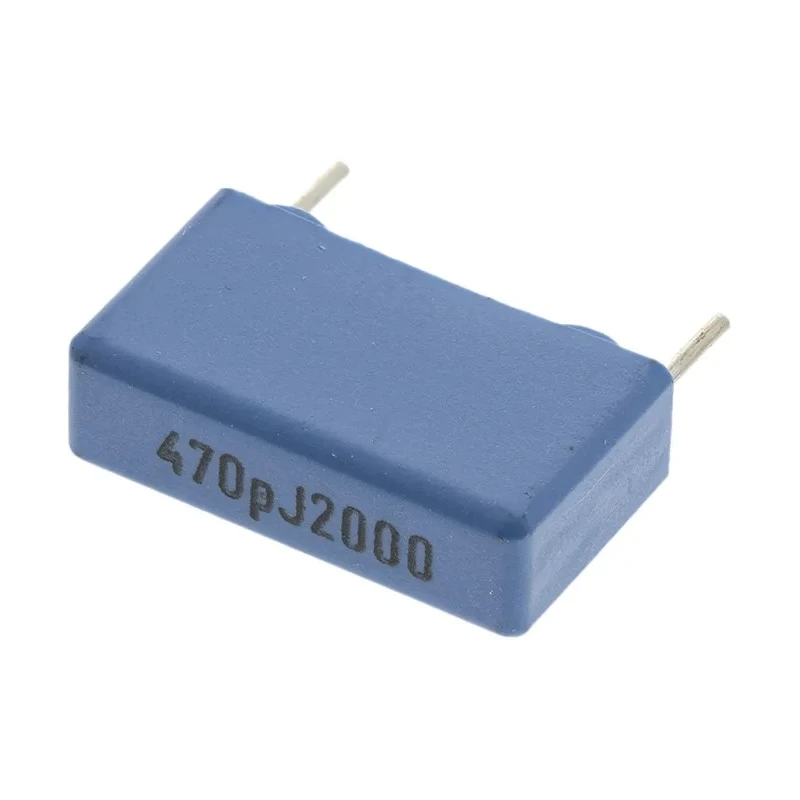

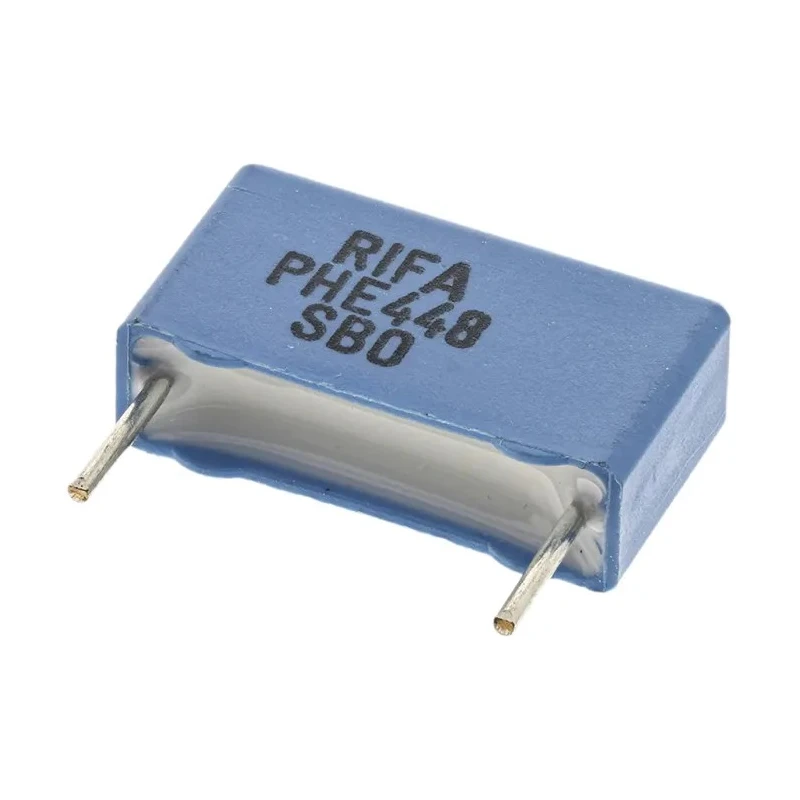

KEMET Film Capacitor Through Hole ±5 % 470 pF 2 kV DC 700V AC PHE448

KEMET PHE448 film capacitor, model PHE448SB3470JR06, is a high performance polypropylene film capacitor with a capacitance of 470 pF and voltage ratings of 2 kV DC and 700 V AC. This through hole mounted capacitor features ±5 % tolerance and is engineered for demanding high frequency and high voltage applications.

Its radial lead terminals with a 15 mm pitch and 6 mm lead length enable easy assembly on printed circuit boards (PCBs). The capacitor is encapsulated in a self-extinguishing UL94V-0 compliant material, ensuring safety and durability in industrial and commercial electronic equipment.

Operating reliably across a temperature range of -55°C to 105°C, this capacitor demonstrates a very low dissipation factor of 0.001%, minimizing power loss and improving efficiency. Its compact dimensions of 18 mm length, 5.5 mm width, and 10.5 mm height make it suitable for tight PCB layouts.

The capacitor is ideal for use in pulse circuits, snubber circuits, and other applications requiring stable capacitance under high voltage stresses. It is supplied in tape and reel packaging, facilitating automated machinery insertion and improved production efficiency.

High voltage and stable capacitance for pulse and snubber circuits. Reliable performance in industrial, automotive, and electronic manufacturing environments. Compliance with safety standards for flame retardance. Compact through hole design for various PCB applications.

Packaging optimized for automated assembly lines.

This Film Capacitor enhances system reliability in electronic components, power supplies, industrial controls, and commercial electronic equipment. Explore a wide selection of capacitors and electronic components to meet your specialized engineering needs at EnvMart.
