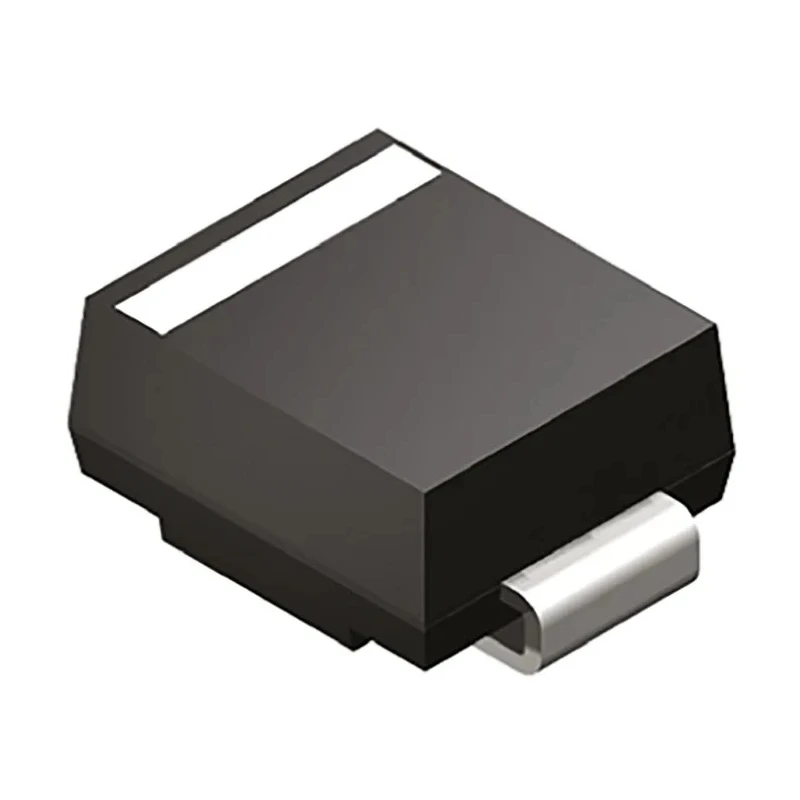

Bourns 1-Element Uni-Directional TVS Diode, 600 W Peak Pulse Power, 2-Pin DO-214 Package P6SMB10A

Bourns P6SMB10A is a high-performance 1-element uni-directional TVS diode designed to protect sensitive electronic circuits from transient voltage spikes. It features a peak pulse power dissipation capacity of 600 W within a compact surface-mount 2-pin DO-214 package. This device is tailored for robust protection in harsh environments typically found in industrial, automotive, and power electronics applications.

The diode configuration is a single uni-directional element, providing effective suppression of voltage surges with a minimum breakdown voltage of 9.5 V and a maximum reverse stand-off voltage of 8.55 V. The clamping voltage of 14.5 V ensures circuits remain within safe operating limits during transients.

Its mechanical dimensions of 4.57 mm length, 3.94 mm width, and 2.23 mm height make it suitable for dense PCB layouts while maintaining ease of surface mount installation. The maximum peak pulse current rating of 50 A supports high transient surge events without performance degradation.

The operating temperature range from -55°C to 150°C enables reliable functionality across varied industrial conditions. The diode also incorporates ESD protection and has a low maximum reverse leakage current of 10 μA for energy efficiency.

This TVS Diode is ideal for transient suppression in power supply lines, communication systems, automotive electronics, and general semiconductor protection tasks. Its P6SMB series origin confirms stringent manufacturing quality and reliable performance standards.

This diode is uni-directional with a single diode configuration. Rated for a peak pulse power dissipation of 600 W ensuring high surge protection. Features a 9.5 V minimum breakdown voltage and 8.55 V maximum reverse stand-off voltage.

Designed for surface mount with compact DO-214 package dimensions of 4.57 mm length and 3.94 mm width. Supports a maximum peak pulse current of 50 A with a clamping voltage of 14.5 V. Operates reliably within a wide temperature range from -55°C to 150°C.

Includes Electrostatic Discharge (ESD) protection for enhanced device durability. Has a low maximum reverse leakage current of 10 μA for efficiency. The product is supplied new and suitable for industrial and electronic component applications.
