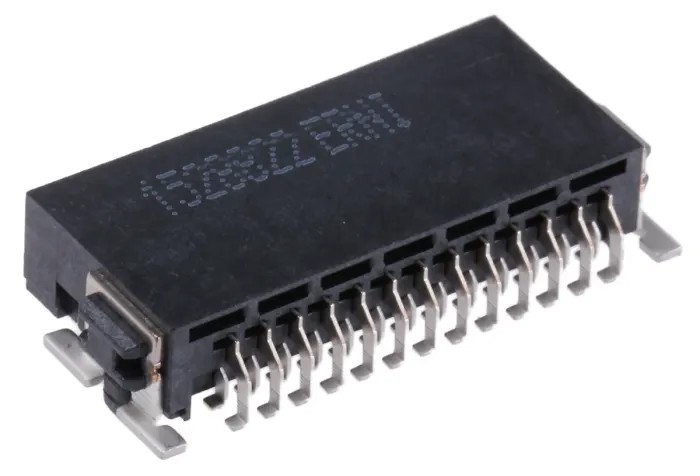

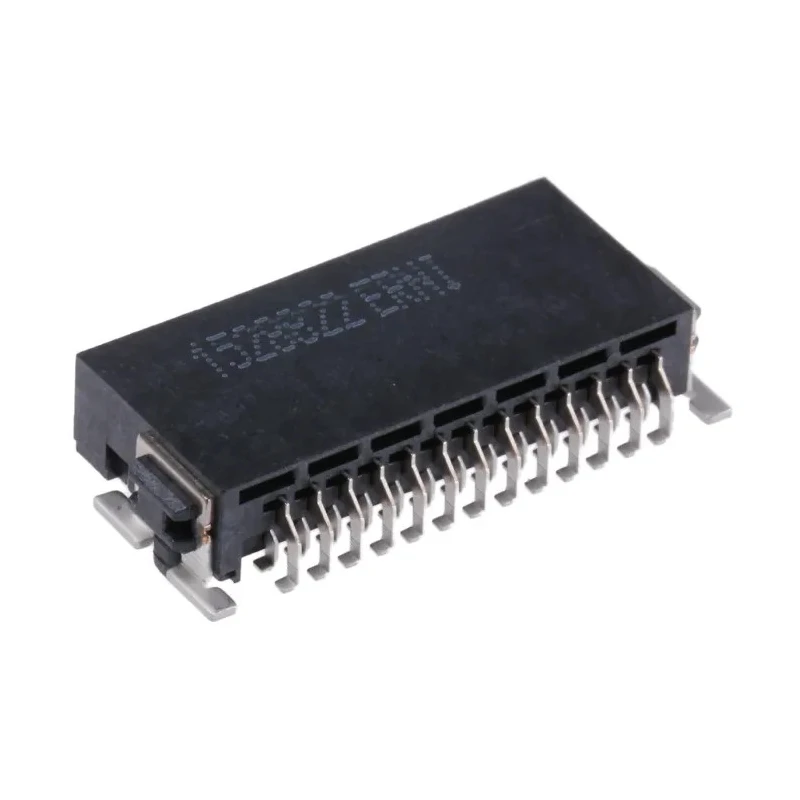

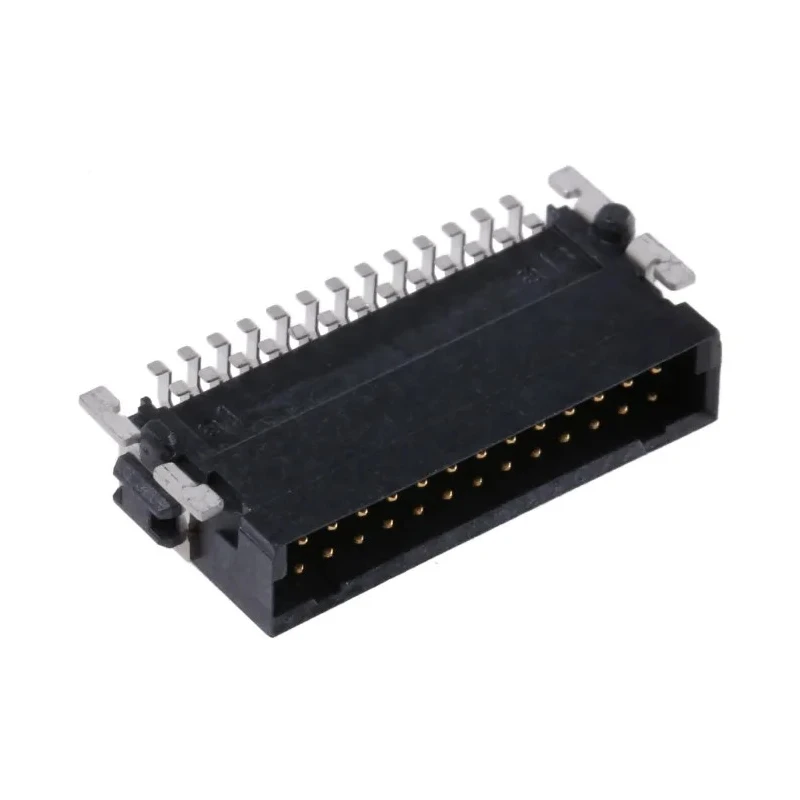

ERNI SMC Series Right Angle Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 154764 / 154764-E

ERNI 154764 / 154764-E is a high-performance SMC Series right angle surface PCB header designed for electronic applications requiring compact, reliable board-to-board connections. This component features a 1.27 mm pitch and 26 contacts arranged in two rows, optimized for space-saving and high-density PCB layouts.

The high-speed SMT connectors support signal transmission rates up to 3 Gbit/s with an ultra-reliable dual beam contact design that ensures low electrical resistance and superior signal integrity.

The housing is molded from Liquid Crystal Polymer (LCP) with UL 94 V-0 flammability classification, providing thermal stability and electrical insulation within a wide operating temperature range of -55°C to +125°C.

Gold plated copper alloy contacts guarantee durability and corrosion resistance, with tin plating on termination areas for effective soldering.

Mounting features include locating pegs for precise PCB positioning and soldering brackets offering high retention force and mechanical stress absorption, ensuring a robust SMT connection resistant to shock and vibration.

The connector’s mating face is polarized to avoid mis-mating, supporting efficient automated assembly processes.

It is ideally suited for daughter card and extender card applications across a variety of industries such as industrial machinery, automotive, communications, medical devices, and consumer electronics.

Compact 2-row, right angle PCB header with 26 contacts. 1.27 mm pitch for high-density PCB designs. High-speed signal capability of up to 3 Gbit/s thanks to dual beam contacts. Durable Liquid Crystal Polymer housing with UL 94 V-0 rating.

Gold plated copper alloy contacts with tin plated terminations. Mating face polarization and locating pegs for accurate assembly. Soldering brackets for secure mechanical retention on PCB. Wide operating temperature range from -55°C to +125°C.

Compatible with fully automated board assembly lines.

ERNI SMC Series connectors represent a premium choice within the PCB Headers category, ensuring reliable electrical and mechanical performance in demanding environments. Browse more ERNI connectors on EnvMart for comprehensive electronic connector solutions.
