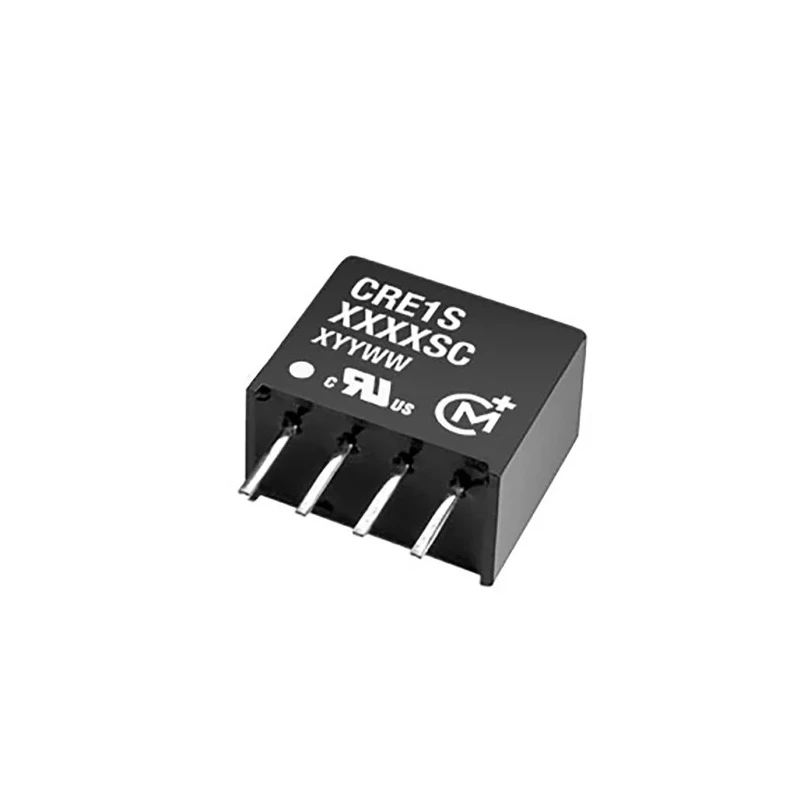

Murata Power Solutions DC/DC Converter 5V DC Output 200 mA 12V DC Input 10.8V Input 1W Through Hole SIP-4 Package CRE1

Murata Power Solutions CRE1 series DC/DC Converter is a compact, reliable module engineered to deliver stable isolated 5V DC output at 200 mA from input voltages ranging between 10.8V and 12V DC. This converter adopts an industry standard SIP-4 through hole package, making it suitable for seamless PCB mounting and integration.

The device supports a wide operating temperature range from -40°C up to 85°C, ensuring dependable performance in demanding industrial, automotive, and electronic applications. The CRE1 converter offers galvanic isolation with an isolation voltage of 1 kV DC to provide safe operation and mitigate interference between circuits.

With a maximum output power of 1 watt and efficiency up to 71%, it is optimized for energy savings while maintaining steady output voltage with minimal ripple noise of 25mV peak-to-peak. Its small form factor and light weight of 1.38 grams further enhance usability in compact designs.

The module features 8 pins and dimensions of approximately 11.53 mm length, 10 mm width, and 10 mm depth. Its output voltage adjustment range between 10.8V and 13.2V allows flexibility in diverse applications requiring precise power regulation.

This CRE series converter complies with CRE, RoHS, and UL standards, underpinning its quality and safety credentials. The converter is ideally suited for industrial electronics, power management systems, communication devices, laboratory equipment, and automotive uses where isolated, low power DC/DC conversion is essential.

Provides isolated single output with galvanic isolation for safety. Industry standard SIP-4 package with through hole mounting. Operating temperature range from -40°C to 85°C for rugged applications. Offers 1 watt maximum output power with 71% efficiency.

Equipped with 8 pins and dimensions of approximately 11.53mm length, 10mm width, and 10mm depth. Ripple and noise at 25mV peak-to-peak ensuring output stability. Output voltage adjustment range from 10.8V to 13.2V supports flexible designs.

Isolation voltage rated at 1kV DC meets safety standards. Lightweight design weighing 1.38 grams facilitates easy PCB integration. Compliant with CRE, RoHS, and UL standards for quality assurance. Explore more DC/DC Converters and power modules on EnvMart for advanced electronics and industrial applications.
