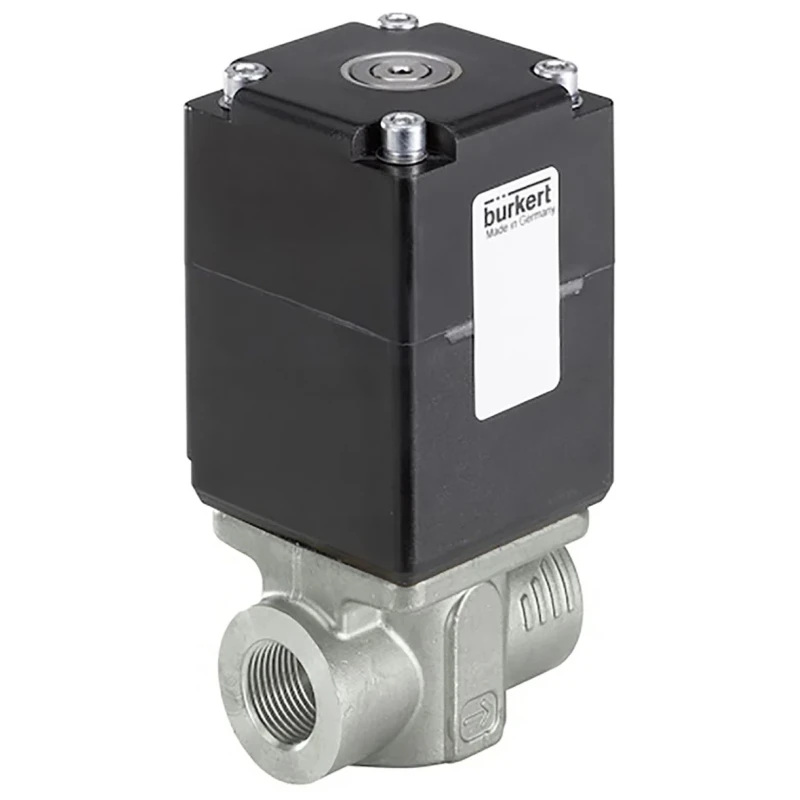

Burkert Proportional Solenoid Valve 2 Port NC, 24V DC, Stainless Steel Body, 3 mm Orifice Diameter 239087

Burkert 239087 Proportional Solenoid Valve is a 2 port, normally closed valve designed for precise and continuous fluid control with 24V DC supply voltage. The valve features a robust stainless steel body and a 3 mm orifice diameter, optimized for liquids and neutral gases. It offers excellent response characteristics with a maximum opening time of 25 ms and an IP65 rating ensuring protection against dust and water ingress.

This valve employs a globe valve operating principle and uses pulse width modulation (PWM) at 900Hz frequency allowing infinitely variable flow control from 0 to 100 percent, making it ideal for applications where smooth and accurate flow adjustment is critical. The frictionless installation of the valve plunger and tight elastomeric seat ensures reliable and tight sealing with repeatability better than 0.5% and hysteresis less than 5% of full scale.

Rated to withstand maximum operating pressures of 10 bar and temperatures up to 55°C, the 239087 valve is suitable in various industrial, laboratory, and manufacturing environments, including fluid power systems, plumbing, and pipeline valve networks requiring precise flow regulation. It complies with important international standards such as ATEX, UL 429, and IECEX, although it has no hazardous area certification.

The valve's connection ports are female and measure 9.53 mm in size, providing efficient flow paths and ease of integration. The proportional two-way valve design and the inclusion of control modules ensure proportional valve opening correlated precisely to input control signals for advanced process control solutions.

Manufactured in Germany, this new Burkert product is engineered to deliver reliability, accuracy, and rapid response for demanding solenoid valve applications. Features direct acting operation with a stainless steel body for durability.

Has a 25 ms response time ensuring excellent valve actuation speed. Offers a flow factor Kv of 0.25 m³/h with a 3 mm orifice diameter. Rated for a maximum operating pressure of 10 bar and temperature up to 55°C. Includes an IP65 protection rating ensuring resistance to dust and water.

Utilizes PWM control with a frequency of 900Hz to give smooth flow adjustment from 0 to 100%. Exhibits high repeatability with less than 0.5% full-scale deviation and minimal hysteresis under 5%. Suitable for controlling liquids and neutral gases in demanding industrial applications.
