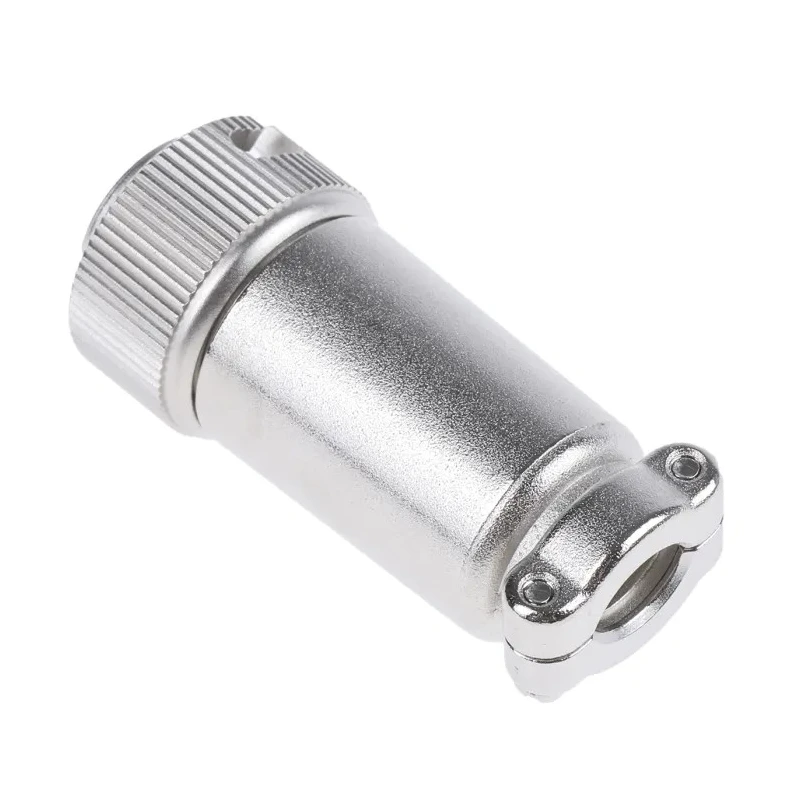

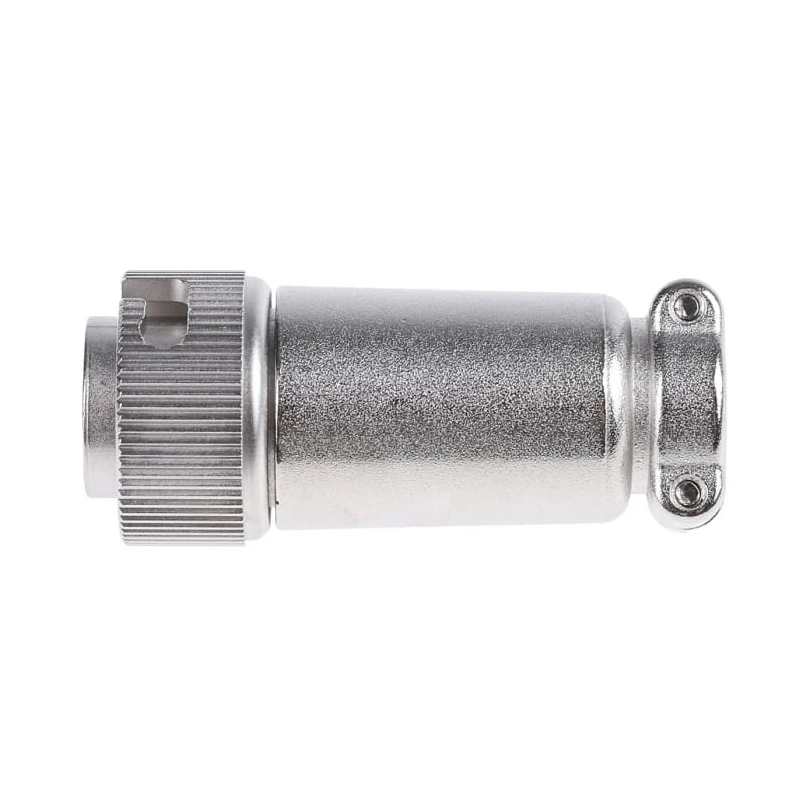

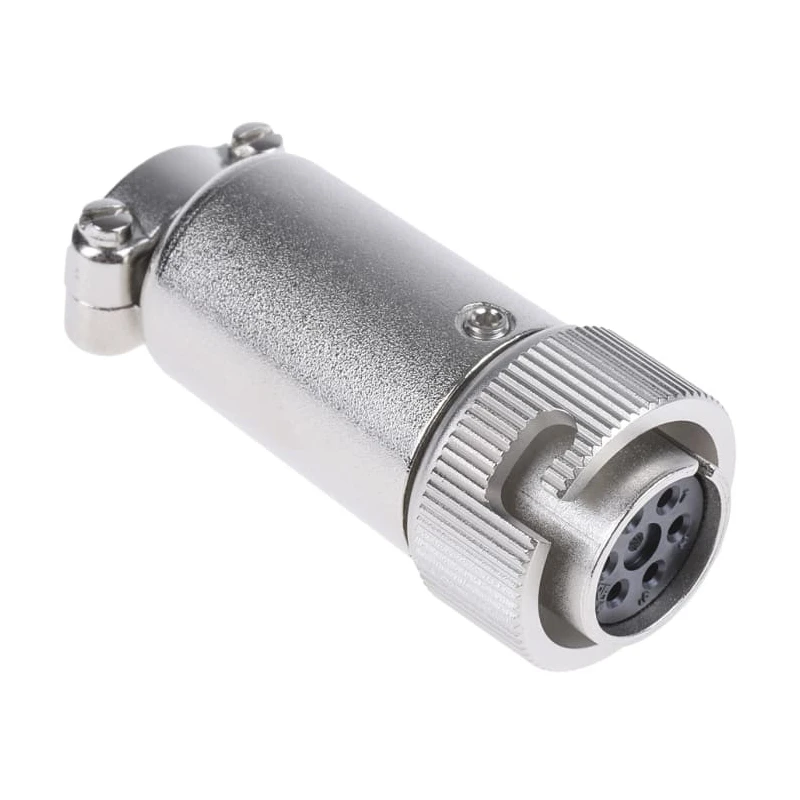

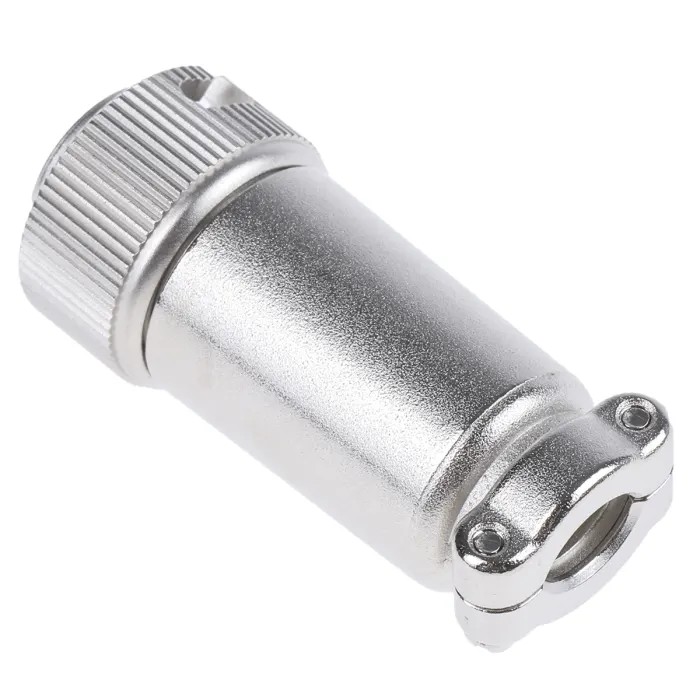

Hirose Industrial Circular Connector 6 Contacts Miniature Cable Plug Female Bayonet RM Series RM12BPE-6S(81)

Hirose RM12BPE-6S(81) is a high-quality industrial circular connector designed for miniature cable plug applications requiring reliable and secure connections. This plug type connector features 6 female contacts and incorporates a bayonet sleeve locking mechanism with five keys in the fitting section to assure smooth and stable coupling.

Engineered for demanding electrical environments, it supports a voltage rating of 350VAC and 490VDC along with a current rating of 5A per contact. The connector housing is made from a combination of aluminium alloy, brass, and zinc alloy with a synthetic resin insulator, providing a robust and lightweight assembly suitable for industrial settings.

The connector’s design delivers excellent mechanical and electrical performance with a straight body orientation and solder termination. It is rated for operation over a wide temperature range from -25°C to 85°C and offers durability for up to 2000 mating cycles, making it ideal for repeated industrial use and maintenance cycles.

The silver-plated contacts of brass and copper ensure low resistance and optimal signal quality. With a shell size of 12mm, the connector fits installations requiring miniature forms, common in audio and video equipment, radio equipment, and other industrial electronics.

Designed with a bayonet sleeve locking mechanism for secure and easy mating. Supports voltage ratings of 350VAC and 490VDC for robust performance. Current capacity rated up to 5A per contact to handle moderate electrical loads.

Constructed with aluminium alloy, brass, and zinc alloy housing materials ensuring durability. Operates reliably between temperatures of -25°C to 85°C, suitable for diverse environments. Silver-plated brass and copper contact materials provide excellent conductivity.

Straight orientation plug with solder termination for secure wiring connections. Offers 2000 mating cycles, delivering longevity in industrial use. Compact shell size of 12mm supports miniature connector form factor.

This Hirose RM series connector is widely applied in industrial electronics, audio/video equipment, radio communication devices, and other fields that require dependable, miniature circular connectors with high mating cycle endurance and electrical ratings.
