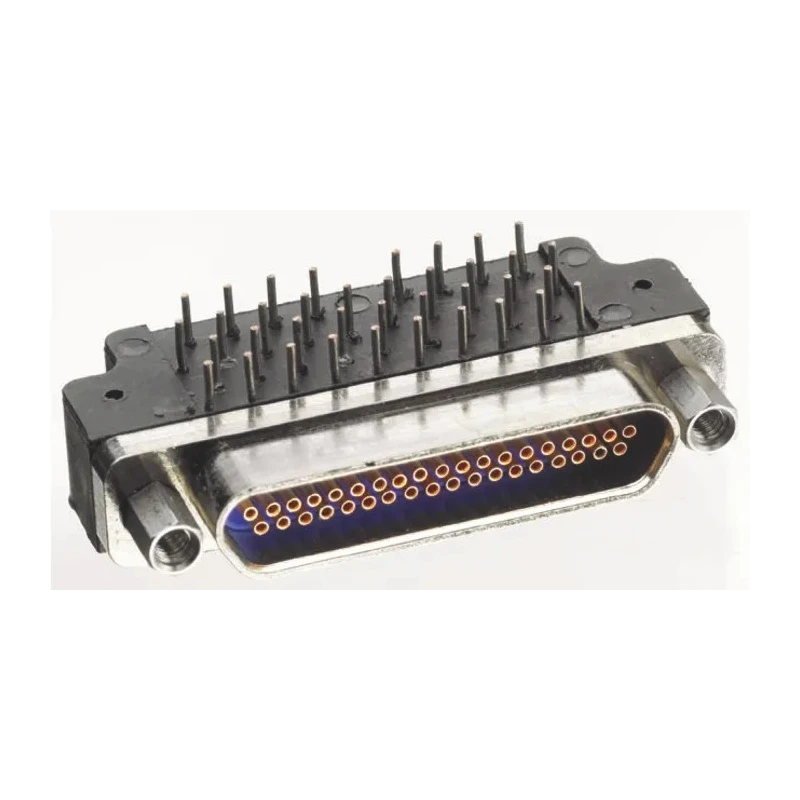

Glenair MWDM 37 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector Female MWDM2L-37SCBRP-.110

Glenair MWDM2L-37SCBRP-.110 is a 37 Way Right Angle Through Hole D-Sub Connector Female designed for high-performance electronic systems requiring robust and reliable connections. The connector features a 2.54 mm pitch and is constructed using an aluminium alloy housing which ensures mechanical strength and durability in demanding environments.

It is manufactured with copper alloy contacts plated with gold over nickel, providing excellent electrical conductivity and resistance to corrosion. Rated for a current of 3 Amps, it supports efficient power transfer through its high density 37-pin layout.

The connector utilizes solder termination, allowing it to be securely mounted on printed circuit boards with through-hole technology. With a right angle orientation, it is suitable for horizontal narrow profile applications where space saving is critical.

Designed to operate in a wide temperature range from -55°C to 150°C, this Micro-D connector is compliant with MIL-C-83513 standards, ensuring reliability under extreme vibration and environmental conditions typical of commercial aerospace, military land and sea, industrial, and telecommunication sectors.

Its metal shell and trapezoidal polarization support secure mating and mechanical integrity. Jackposts are supplied installed for added assembly convenience. This connector is RoHS compliant and features a high-performance liquid crystal polymer molded housing enhancing environmental resistance and longevity.

2.54 mm pitch for compact pin spacing. Aluminium alloy housing offers rugged mechanical protection. Gold over nickel plating on copper alloy contacts provides corrosion resistance. High density 37 contacts accommodate complex wiring needs.

Right angle orientation suited for efficient PCB layout. RoHS compliant and MIL-C-83513 certified for high-quality assurance. Operates within a broad temperature range of -55°C to 150°C. Solder termination ensures solid electrical connections.

Designed for commercial, military, aerospace, industrial, and telecom applications. Discover more high-quality connectors in our D-Sub Connector category at EnvMart for all your precision electronic assembly requirements.
