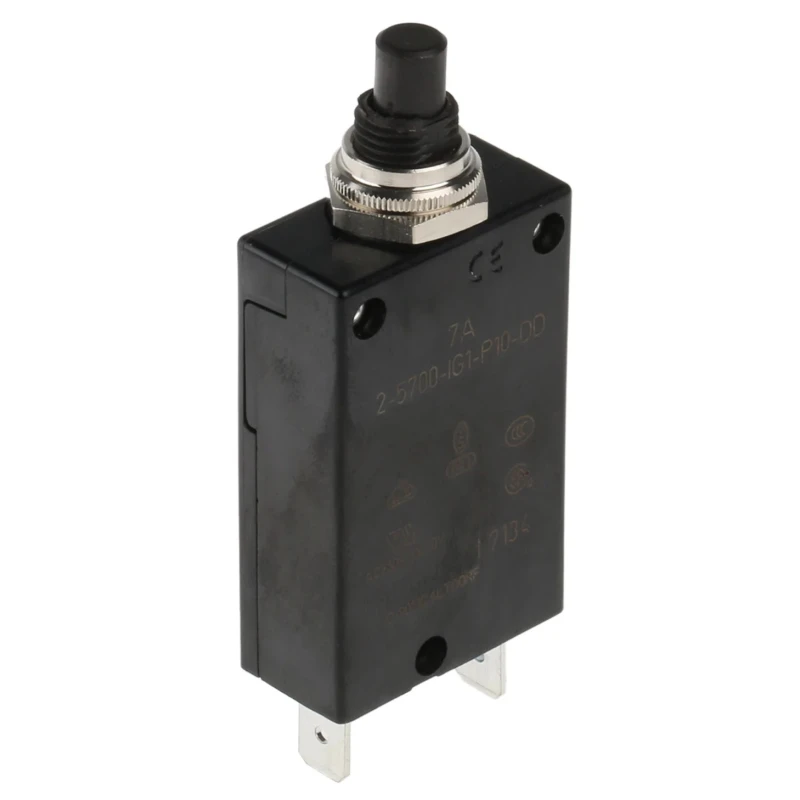

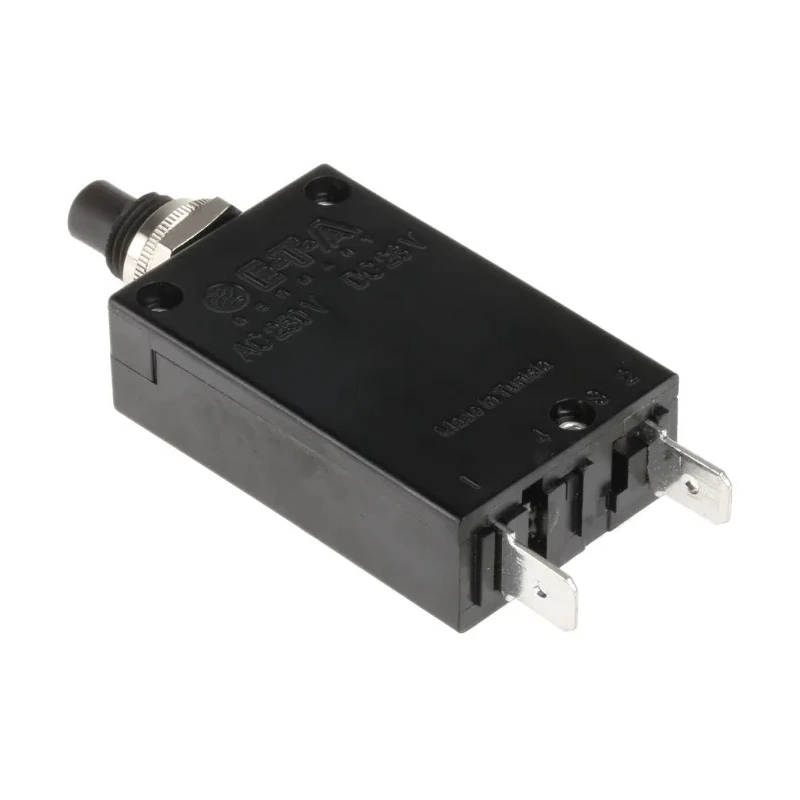

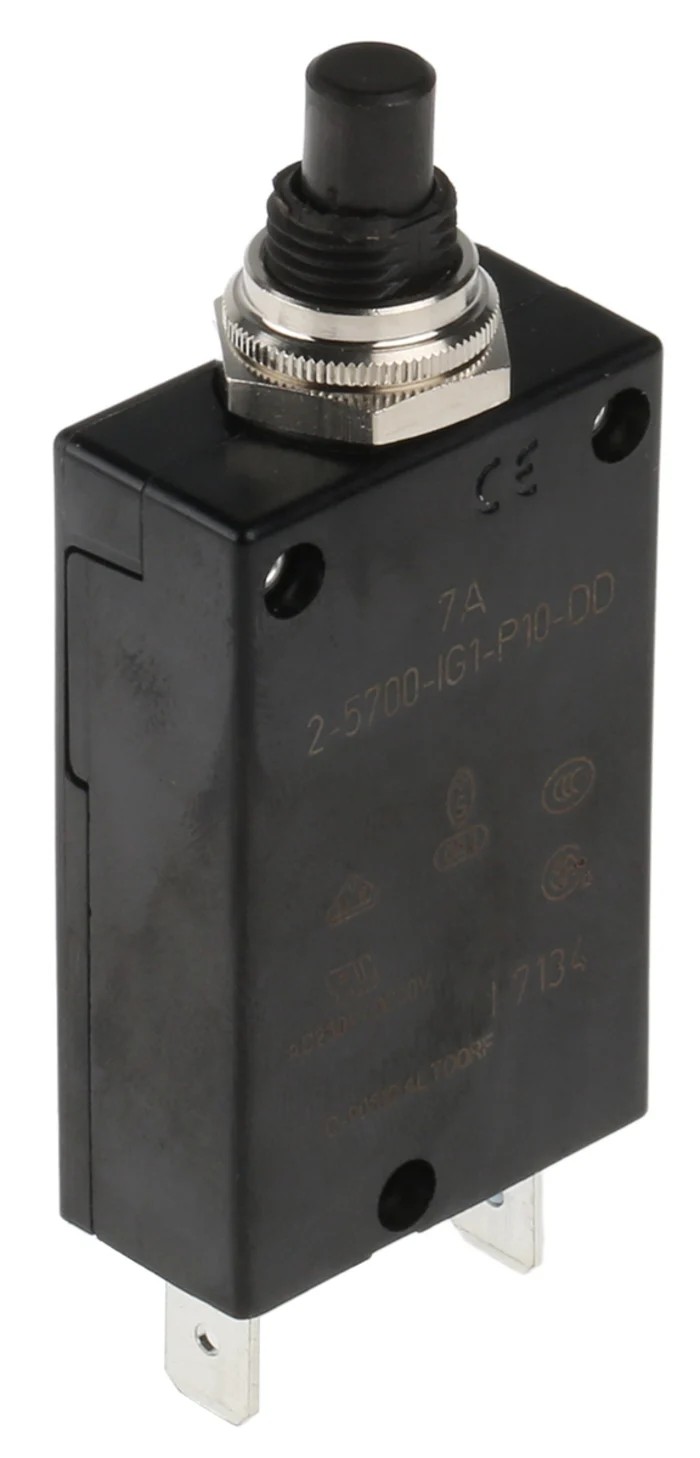

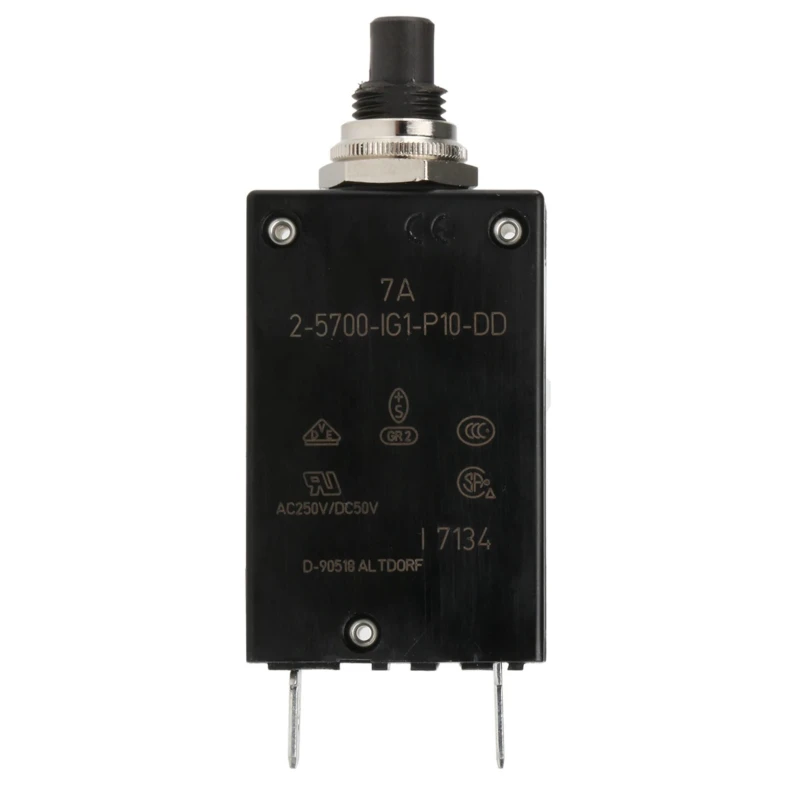

ETA Thermal Overcurrent Circuit Breaker 7A Current Rating 1-Pole Panel Mount 250V AC 50V DC 2-5700-IG1-P10-DD-000040-7A

ETA 2-5700-IG1-P10-DD-000040-7A is a thermal overcurrent circuit breaker designed for panel mounting applications. It supports a current rating of 7A with a single pole configuration, suitable for use in motors, transformers, power supplies, and extra low voltage systems. The breaker features a thermal tripping mechanism to provide reliable overload and short circuit protection, enhancing electrical safety and system reliability.

Compact in size with dimensions of 14.5 mm width, 50 mm height, and 62.2 mm depth, this unit mounts securely through a 3/8 inch or M12 moulded thread-neck single-hole. The blade-type terminals accept standard 6.3-0.8 mm blades for straightforward wiring. Its button reset actuator offers ease of manual resetting after a trip event.

The breaker is rated for AC voltages up to 250 V and DC voltages up to 50 V, supporting a wide range of electrical applications. The unit features a trip free mechanism, which ensures the breaker cannot be held closed during an overload, increasing operational safety and reliability.

Standard compliance includes VDE, CSA, IEC, SEV, and UL approvals, confirming adherence to recognized international quality and safety standards. The product is manufactured in Tunisia and is engineered for durability with a typical operational life of 5000 cycles at twice its nominal current rating.

Thermal tripping mechanism for overload and short circuit protection. Compact panel mount design with secure moulded thread-neck fitting. Blade terminals and button reset actuator for efficient electrical connections. Rated at 250 V AC and 50 V DC for versatile applications.

Trip free mechanism prevents unsafe manual holding of the breaker. On/off status indication enhances visual monitoring of operation. Complies with multiple international safety standards including VDE and UL. Suitable for motors, transformers, and power supply protection.

Manufactured in Tunisia ensuring quality assured production. Designed for longevity with 5000 operational cycles under overcurrent conditions.

These circuit breakers provide reliable electrical protection critical in industrial, commercial, and laboratory environments where motor and power supply safety is paramount. Select ETA thermal circuit breakers for trusted circuit protection solutions. Explore the complete ETA product range and other high-quality Circuit Breakers at EnvMart.
