Glenair MWDL 9 Way Straight Through Hole Micro-D D-Sub Connector, Male with Jack Screw MWDL9P-6E5-18B

Glenair MWDL9P-6E5-18B 9 Way Straight Through Hole Micro-D D-Sub Connector, Male with Jack Screw is a high-performance connector designed to provide exceptional mechanical and electrical integrity in demanding environments such as commercial and military aerospace, land, sea, industrial, and telecommunication applications.

The connector uses a Micro-D 0.050 inch pitch contact system with 9 contacts, supporting a current rating of 3 Amps and an operating voltage of 600 Volts. Its housing is made from high-performance liquid crystal polymer offering excellent resistance to extreme vibration and temperature fluctuations between -55°C and 150°C.

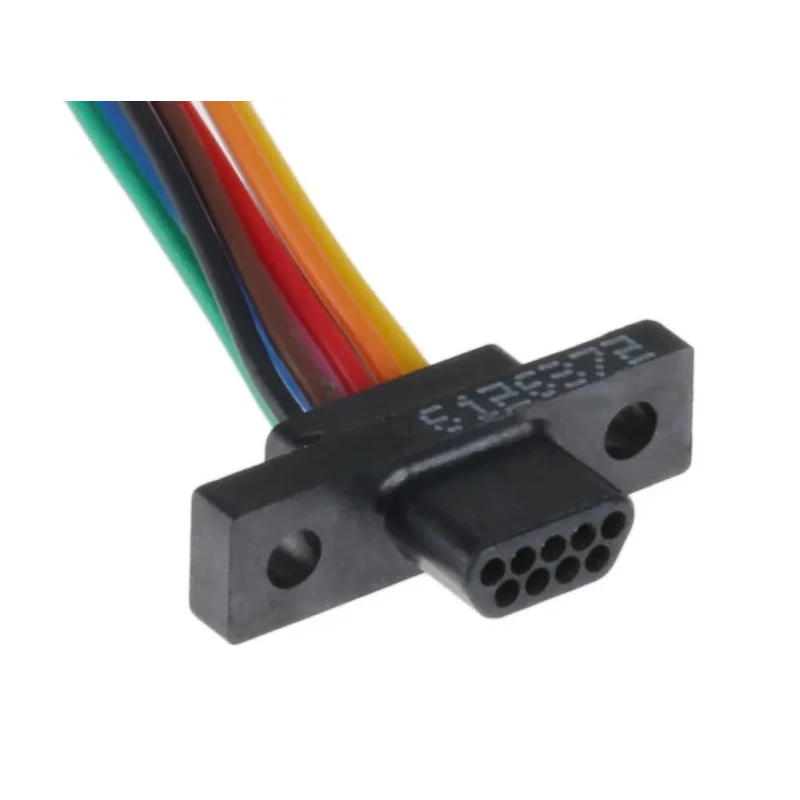

Featuring a gold-plated twist pin contact system, the MWDL9P-6E5-18B provides reliable low-resistance connections and corrosion resistance. The male connector is designed for through-hole mounting with jack screw hardware, ensuring secure and stable installation in printed circuit board assemblies or other electronic systems.

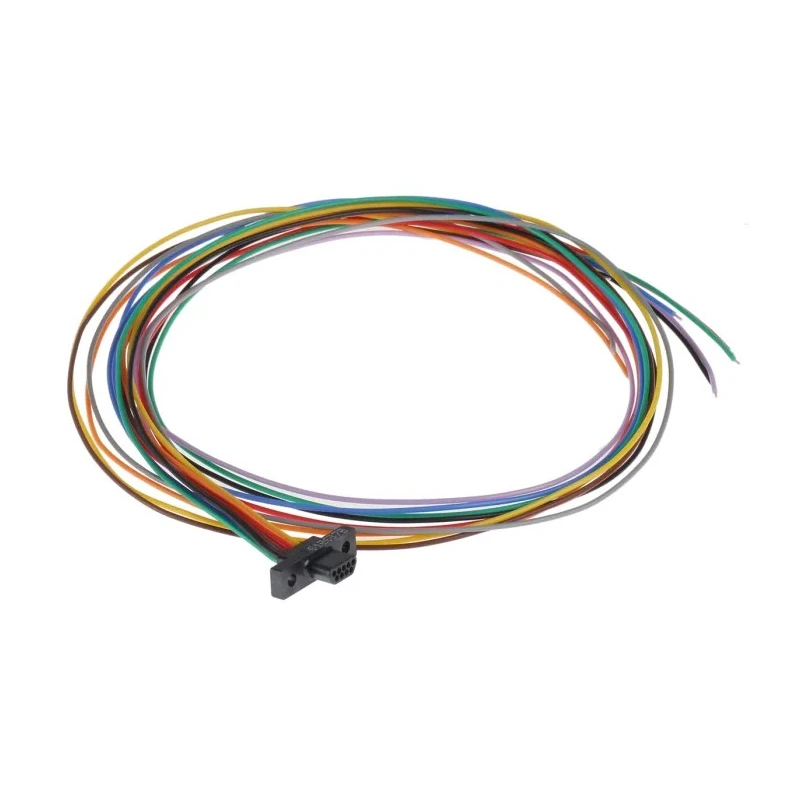

This connector series conforms to MIL-C-83513 military standards and is RoHS-compliant, making it suitable for environmentally regulated industries. It is sold with 450mm (18 inches) of color coded wiring, facilitating straightforward integration in complex wiring harnesses.

The robust design and material selection make it ideal for use in industrial manufacturing, aerospace, defense, telecommunications, and other harsh environment applications requiring reliable electrical connections.

The connector features 9 contacts with a 3 Amp contact rating. Micro-D design with high-density 0.050 inch contact pitch ensures compactness. Constructed with a robust liquid crystal polymer housing for mechanical and environmental durability.

Rated for 600V operation voltage and operating temperatures from -55°C to 150°C. Equipped with a gold-plated twist pin contact system for reliable electrical integrity. Mounting type is through hole with jack screw hardware for secure installation.

Complies with MIL-C-83513 standards for military and industrial applications. Connector gender is male with female contacts inside for interface compatibility. Supplied with 450mm (18 inches) of color coded wiring for easy installation.
