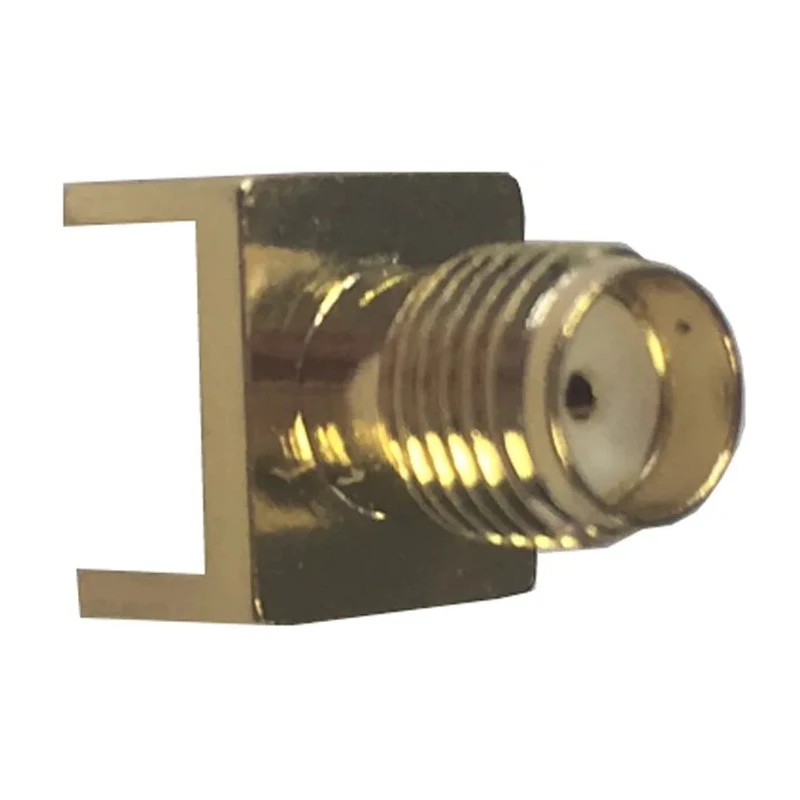

RF Solutions CON Series Coaxial Connector PCB Female SMA 50 Ω Straight Body Solder CON-SMA-EDGE
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | RF Solutions |
| Orientation | Straight |
| Model | CON-SMA-EDGE |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | CON |
| Termination Type | Solder |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Thread | 1/4-36UNS-2A |
| Impedance | 50Ω |
| Maximum Frequency | 18GHz |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- This SMA female connector is designed for printed circuit board mounting with PCB edge mount style.
- The connector features gold-plated brass body and gold-plated beryllium copper contacts for reliable electrical performance.
- It supports a maximum operating frequency of up to 18 GHz with 50 Ω impedance.
- Suitable for PCB thickness ranging from 1.2 mm to 1.6 mm with straight orientation.
- Termination type is solder with a thread specification of 1/4-36UNS-2A.
- The connector operates reliably from 0 degrees Celsius minimum operating temperature.
- This product is manufactured in China and comes in new condition.
Product Description
RF Solutions CON-SMA-EDGE coaxial connector is a PCB edge mount SMA female connector designed for high-frequency applications up to 18 GHz. It features a straight body with solder termination and is intended for use with printed circuit boards that are 1.2 to 1.6 mm thick. The connector body is gold-plated brass with gold-plated beryllium copper contacts, providing excellent conductivity and corrosion resistance.
The connector has a standard size with 50 Ω impedance to ensure signal integrity in RF systems. It includes a Teflon insulator and follows a normal polarity design. The thread size is 1/4-36UNS-2A, ensuring compatibility with common SMA counterparts.
This PCB mount SMA female connector is suitable for industrial, electronics, telecommunications, and laboratory applications requiring reliable RF signal transmission. It is an essential component for assembling RF coaxial circuits, antenna systems, and RF test instrumentation.
PCB edge mount form factor designed for straightforward PCB integration. Gold plating on body and contacts provides durability and efficient signal transmission. Supports high-frequency operation up to 18 GHz, suitable for advanced RF systems.
Robust beryllium copper contact construction with solder termination for secure connections. Ideal for electronics manufacturing, testing, and telecommunications hardware assemblies.
The package contains one RF Solutions CON Series coaxial connector, model CON-SMA-EDGE. This connector is sold new and originates from China. For enhancing your RF component collection, explore the full range of Coaxial Connectors by RF Solutions on EnvMart.
