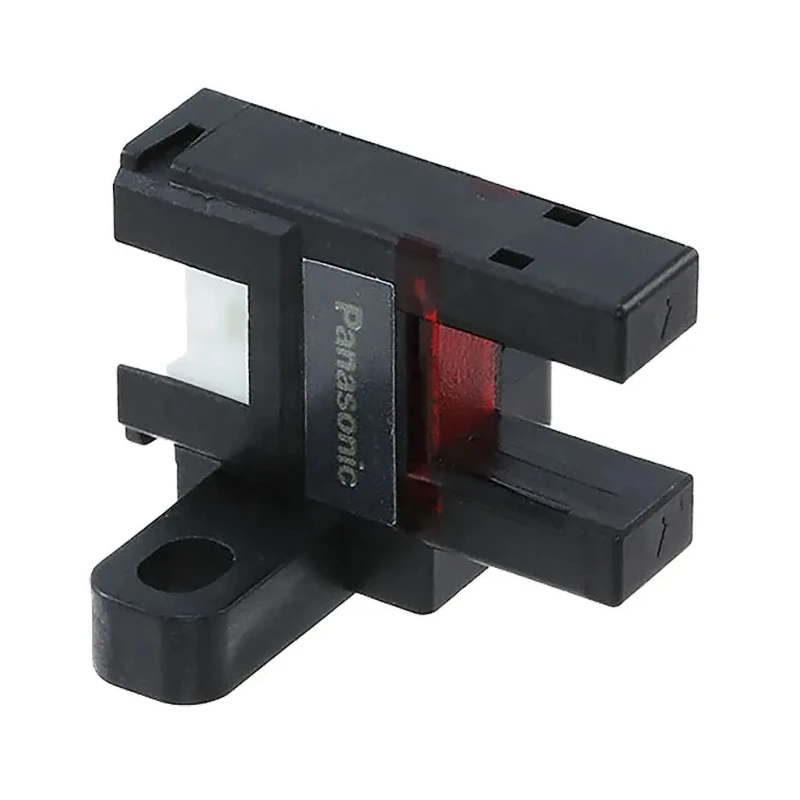

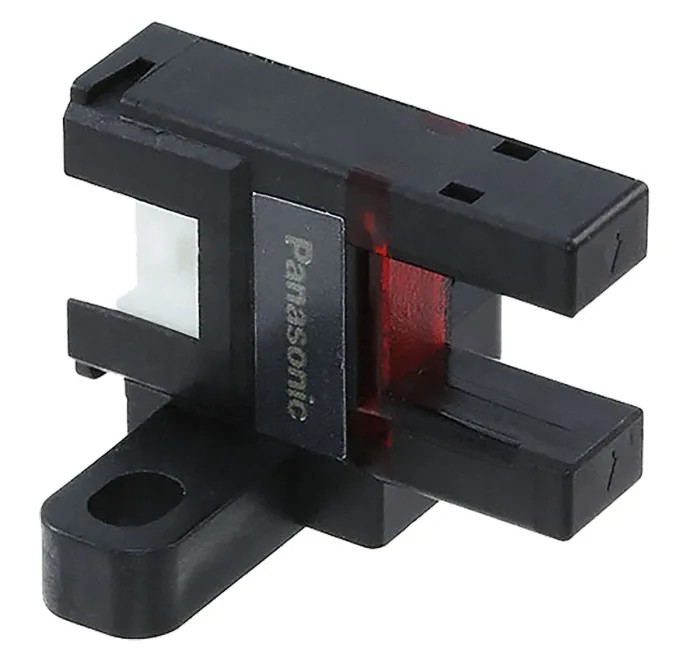

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP40 PM-T65W

Panasonic PM-T65W Through Beam Photoelectric Sensor is a compact fork style sensor designed for reliable detection of opaque materials with a 6 mm detection range. This sensor utilizes infrared light detection and features an NPN output suitable for automation, manufacturing, and control gear applications in industrial environments. The sensor operates across a wide temperature range from -25°C to 55°C, making it suitable for various conditions.

The housing is constructed from polybutylene terephthalate and polycarbonate materials, offering robust protection and durability. Its IP40 rating provides basic protection against solid objects, ensuring stable operation in clean indoor environments. Designed for easy installation, the sensor is mounted using M3 screws in a chassis mount configuration.

This PM-65 series sensor includes protective features such as reverse supply polarity protection, reverse output polarity protection, and output short circuit protection, enhancing reliability and safety in industrial control systems. The compact U-shaped design combines emitter and receiver inside a single fork housing for streamlined sensor placement.

The sensor’s quick response time of 20 to 80 μs supports applications requiring accurate and fast detection signals. It supports a maximum DC voltage of 24V and maximum current of 50mA. The device complies with IEC standards, guaranteeing consistent performance and quality.

Typical industrial use cases include automation systems, manufacturing line control, packaging machinery, robotics, and conveyor detection where precise small object sensing is required. This sensor's compact design facilitates integration into machinery and equipment where space constraints exist.

Fork style sensor with through beam detection for precise object sensing. Detection range of 6 mm suitable for compact industrial environments. NPN transistor output supports robust interfacing. IP40 rated housing ensures basic protection against solids.

Uses infrared light source for consistent operation. Operates reliably between -25°C to 55°C temperature range. Easy mounting via chassis mount with M3 screws. Protective polybutylene terephthalate and polycarbonate housing enhances durability.

Equipped with reverse polarity and short-circuit protection for electrical safety. Compatible with 4-pin connector for simple installation. Browse EnvMart for more Panasonic Photoelectric Sensors and industrial automation components to meet your specific automation and sensing needs.
