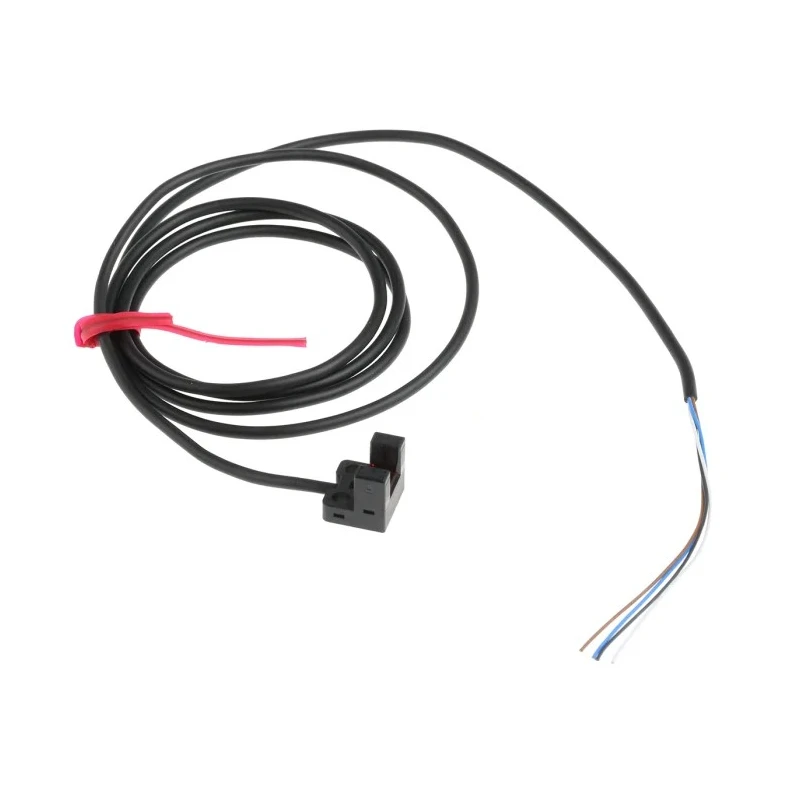

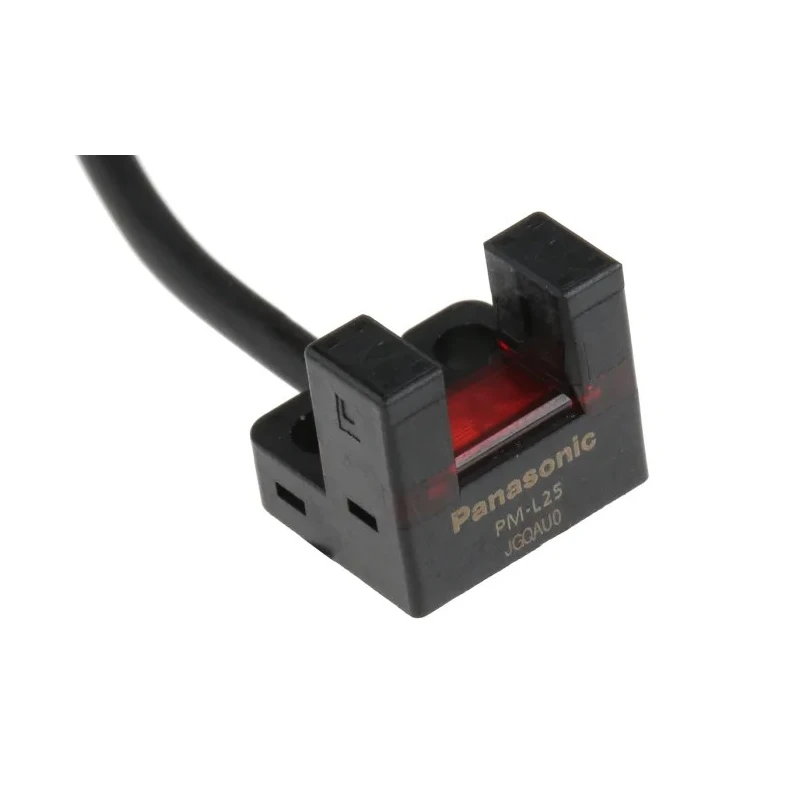

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-L25
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-L25 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-25 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |

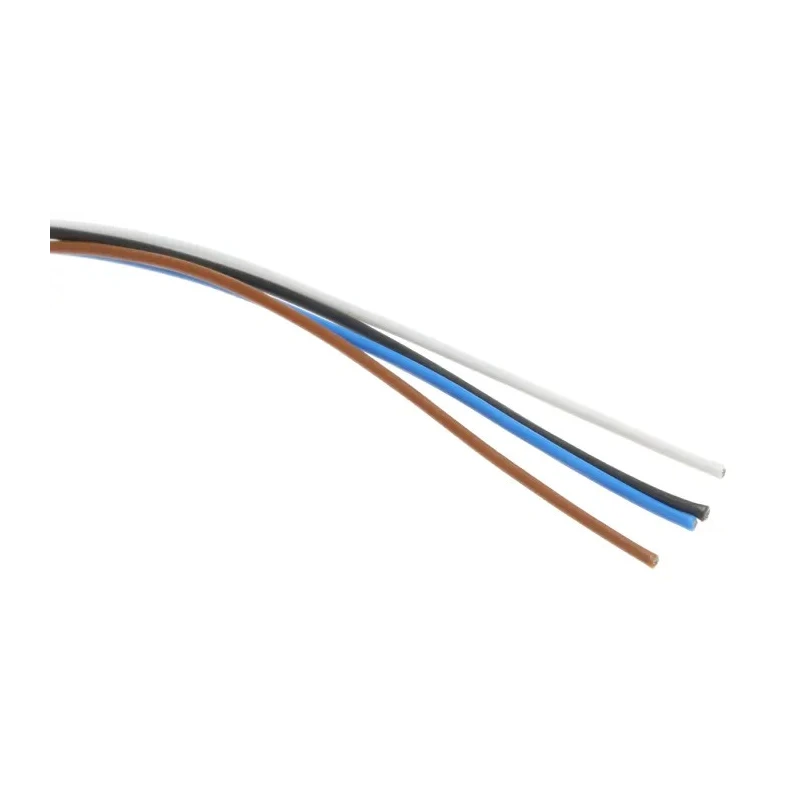

| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
| Panasonic Through Beam Photoelectric Sensor, Fork Sensor, 6 mm, NPN, IP64Brand | Panasonic |
Key Features
- This photoelectric sensor operates on a through beam detection principle with a fork-shaped sensor style.
- The sensor features an infrared light source ensuring precise opaque material detection.
- It supports a maximum DC voltage of 24V and maximum current of 50mA for versatile industrial applications.
- Built with rugged housing materials like polybutylene terephthalate and polycarbonate for durability.
- IP64 rating ensures protection against dust ingress and water splashes for harsh environments.
- Response times of 20μs for high-speed detection make it suitable for automation and control tasks.
- The sensor includes reverse polarity and output short circuit protection for enhanced reliability.
- Compact chassis mount design allows easy installation with M2 or M3 screws.
Product Description
Panasonic PM-L25 Through Beam Photoelectric Sensor is a highly compact, fork-style sensor designed for precise detection of opaque materials within a 6 mm range. This sensor uses infrared light as its detection source, enabling accurate sensing in automation and control gear applications.
Featuring an NPN output type and cable terminal connection, the sensor operates safely within a maximum DC voltage of 24V and can handle currents up to 50mA. The device supports an operating temperature range from -25°C to 55°C, suitable for diverse industrial environments.
Constructed with durable polybutylene terephthalate and polycarbonate housing, the PM-L25 is also IP64 rated, protecting it against dust and water splashes for reliable operation in manufacturing, laboratory, and industrial automation settings. The chassis mount style offers simple installation with standard M2 and M3 screw options.
This sensor features fast response times of 20 and 80 microseconds to accommodate high-speed detection requirements. Its internal circuitry is protected against reverse polarity, output polarity reversal, and short circuits, ensuring enhanced longevity and performance.
Panasonic’s PM-25 series sensors are suited for use in automated manufacturing lines, conveyor monitoring, and equipment safety controls. They provide a robust and compact sensing solution that integrates easily into control systems requiring through beam detection.
This photoelectric sensor operates on a through beam detection principle with a fork-shaped sensor style. The sensor features an infrared light source ensuring precise opaque material detection. It supports a maximum DC voltage of 24V and maximum current of 50mA for versatile industrial applications.
Built with rugged housing materials like polybutylene terephthalate and polycarbonate for durability. IP64 rating ensures protection against dust ingress and water splashes for harsh environments. Response times of 20μs for high-speed detection make it suitable for automation and control tasks.
The sensor includes reverse polarity and output short circuit protection for enhanced reliability. Compact chassis mount design allows easy installation with M2 or M3 screws. Explore more Panasonic sensors and Photoelectric Sensor options at EnvMart to find suitable solutions for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-L25 photoelectric sensor has a detection range of 6 mm.
It features an NPN output type.
The maximum DC voltage supported by this sensor is 24V.
This model has response times of 20μs and 80μs for high-speed detection.
The housing is constructed from polybutylene terephthalate and polycarbonate.
The PM-L25 has an IP64 rating, providing protection against dust and water splashes.
It operates within a temperature range of -25°C to 55°C.
This model features a chassis mount design, allowing installation with M2 or M3 screws.
The PM-L25 uses an infrared light source for detection.
It operates on a through beam detection principle.
The sensor includes reverse polarity and output short circuit protection for enhanced reliability.
The PM-L25 complies with IEC standards.
