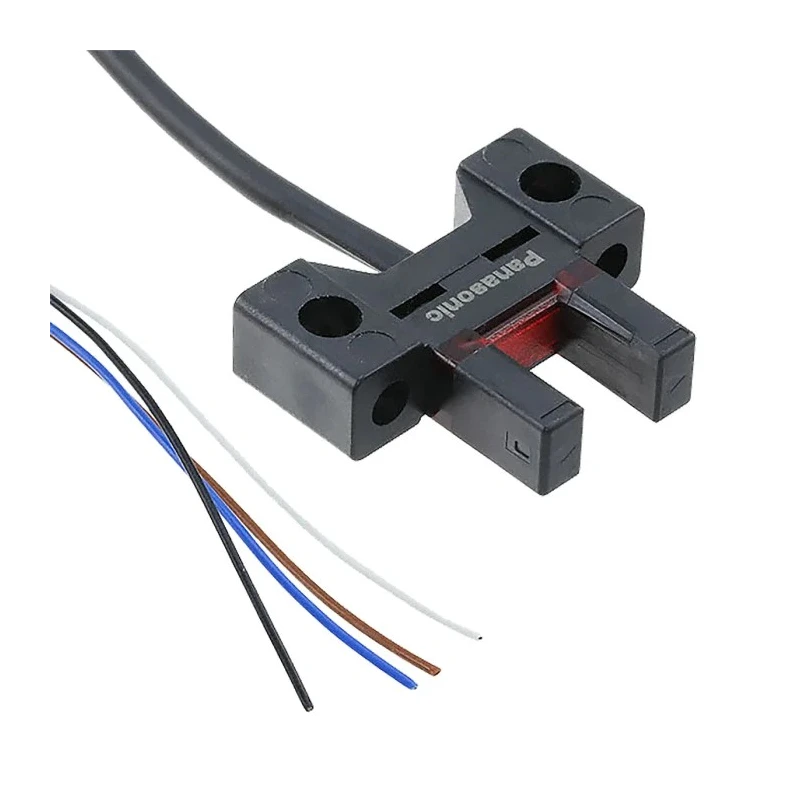

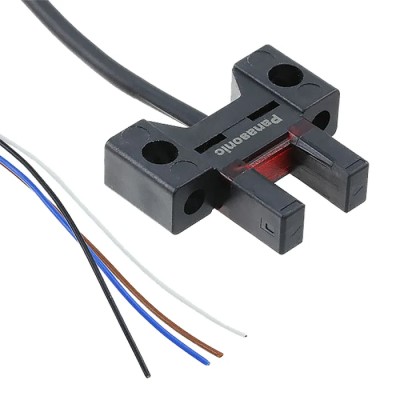

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-K45-C3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-K45-C3 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polycarbonate, Polybutylene Terephthalate |
| Output type | NPN |
| Series | PM-45 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Equipped with a fork-style design providing stable through beam detection.
- Infrared light source ensures reliable opaque material detection.
- Compact chassis mount with polycarbonate and polybutylene terephthalate housing for durability.
- Wide operating temperature range from -25°C to 55°C for versatile industrial environments.
- Reverse polarity, output short circuit protection, and easy mounting with M3 screws for robustness.
- Maximum supply voltage of 24 V DC and maximum current of 50 mA ensures flexibility.
- Response time options of 20 μs and 80 μs for high-speed motion sensing.
- Complies with IEC standards and is manufactured in Japan for quality assurance.
Product Description
Panasonic PM-K45-C3 through beam photoelectric sensor is a fork-style sensor designed for precise detection in industrial automation, manufacturing, and control applications. Featuring a compact U-shaped housing integrating both emitter and receiver, it offers easy alignment and installation in tight spaces.
The sensor uses an infrared light source optimized for detecting opaque materials within a 6 mm detection range. Its chassis mount design and rugged polycarbonate combined with polybutylene terephthalate housing materials provide resistance against mechanical stress and electrical disturbances.
Operating reliably in temperatures ranging from -25°C to 55°C, this sensor supports a supply voltage up to 24 V DC and a maximum current of 50 mA. It incorporates key protective features including reverse supply polarity, output polarity, and output short circuit protection to ensure durability over extended use.
The sensor offers fast response times of 20 and 80 microseconds, making it suitable for high-speed control systems. Its IP64 rating provides protection against dust ingress and water splashes, making it apt for demanding industrial or laboratory environments.
Manufactured in Japan and conforming to IEC standards, the PM-K45-C3 series represents a reliable solution in the category of Photoelectric Sensors widely used across electronics, automation, and control gear applications.
Equipped with a fork-style design providing stable through beam detection. Infrared light source ensures reliable opaque material detection. Compact chassis mount with polycarbonate and polybutylene terephthalate housing for durability.
Wide operating temperature range from -25°C to 55°C for versatile industrial environments. Reverse polarity, output short circuit protection, and easy mounting with M3 screws for robustness. Maximum supply voltage of 24 V DC and maximum current of 50 mA ensures flexibility.
Response time options of 20 μs and 80 μs for high-speed motion sensing. Complies with IEC standards and is manufactured in Japan for quality assurance. Explore more Panasonic sensors and industrial automation components at EnvMart for diverse laboratory, manufacturing, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-K45-C3 sensor has a detection range of 6 mm, optimized for detecting opaque materials.
This model features an NPN output type, suitable for various industrial applications.
The maximum supply voltage for this sensor is 24 V DC, allowing for flexible integration into systems.
The PM-K45-C3 offers response time options of 20 μs and 80 μs, making it suitable for high-speed applications.
This sensor is designed to detect opaque materials, ensuring reliable performance in various applications.
The PM-K45-C3 operates effectively within a temperature range of -25°C to 55°C, suitable for diverse industrial environments.
This sensor has an IP64 rating, providing protection against dust ingress and water splashes.
The housing of the PM-K45-C3 is made from polycarbonate and polybutylene terephthalate, offering durability in industrial settings.
This model features a chassis mount design, allowing for easy installation using M3 screws.
It includes reverse polarity protection, output polarity protection, and output short circuit protection for enhanced durability.
This sensor complies with IEC standards, ensuring quality and reliability in its design and function.
The PM-K45-C3 is manufactured in Japan, ensuring adherence to high-quality standards.
