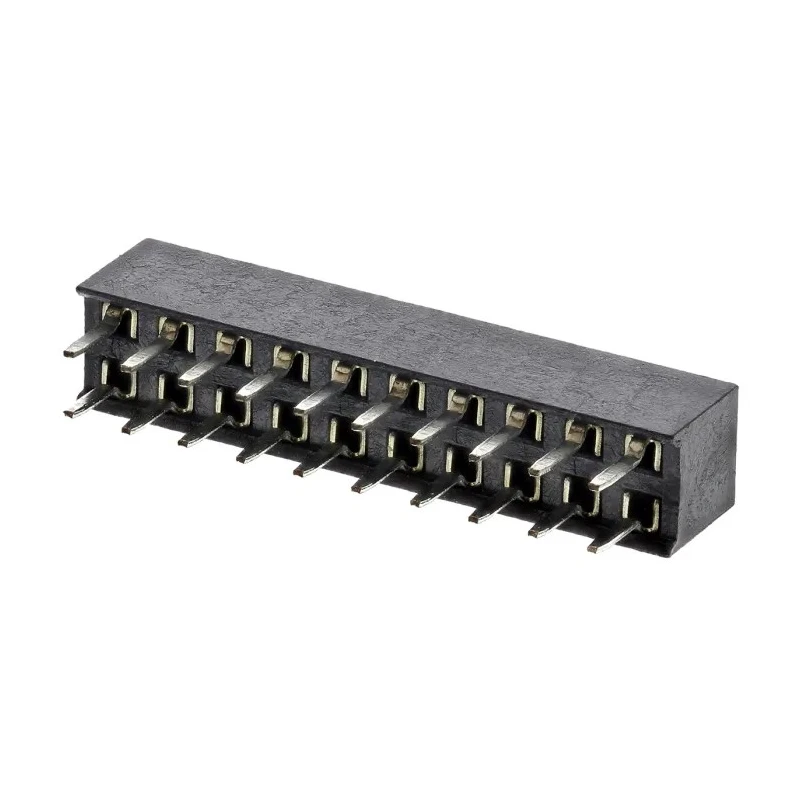

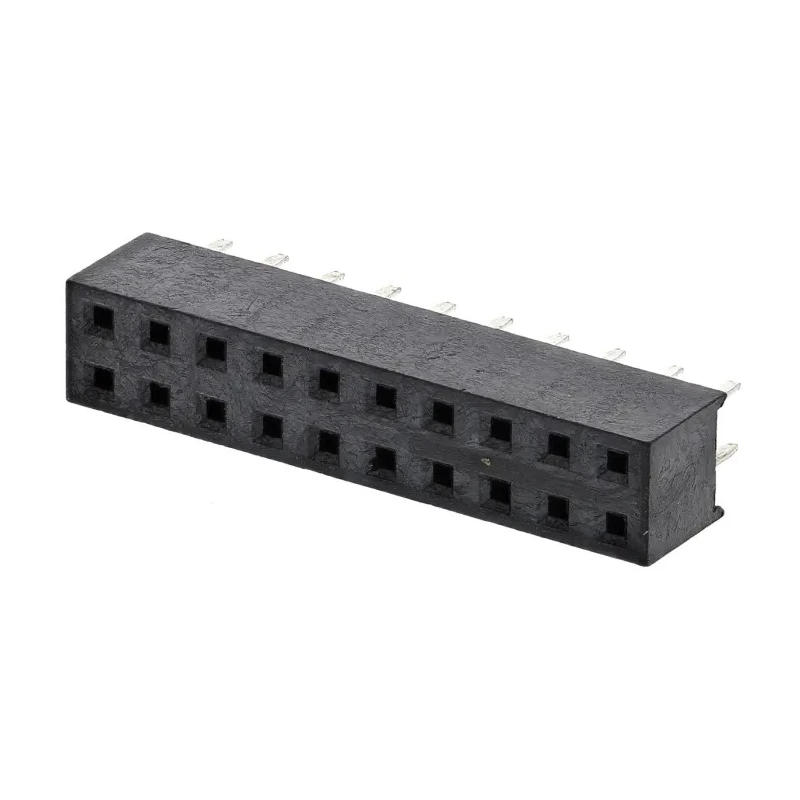

HARWIN M22 Series Straight Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder M22-7141042

HARWIN M22-7141042 is a high-quality M22 Series straight through hole PCB socket connector with 20 contacts arranged in 2 rows at a fine 2 mm pitch. This PCB socket is engineered for board-to-board connections and features a solder termination type, ensuring secure and reliable mounting on printed circuit boards.

The housing material is a UL94V-0 rated liquid crystal polymer that withstands high temperature soldering processes, providing exceptional durability and compliance with industrial standards. The connector features gold-plated bronze contacts with a female gender, designed to enhance electrical connectivity and ensure resistance to wear over extended use.

This 20-contact socket supports a current rating of 12A per contact and operates safely in a temperature range from -25°C to 105°C, making it suitable for challenging environmental conditions. The straight orientation and through hole mount provide mechanical stability for electronic assemblies.

The compact M22 series sockets meet modern design requirements for increased PCB density and height restrictions, making them suitable for a broad range of applications including consumer electronics, communications, drives, controls, industrial monitoring, and personal computing platforms.

With a reliable design supporting up to 300 mating cycles, these connectors offer excellent longevity and consistent performance required in embedded systems and motherboards. Fine 2 mm pitch design for enhanced PCB density.

Compact construction suitable for height-restricted assemblies. UL94V-0 liquid crystal polymer housing for high thermal resistance. Gold-plated bronze contacts for superior conductivity and durability. Rated for operation from -25°C to 105°C.

Supports up to 12A current per contact. Solder termination ensures secure PCB mounting. Designed for board-to-board connection systems. Compatible with embedded PC and large system electronics. High mating cycle count of up to 300 for long lifecycle.

These M22 series PCB sockets are integral components in industrial, manufacturing, communication, and consumer electronic sectors. They provide engineers and designers with dependable and compact connection solutions to meet demanding modern electronic assembly standards.
